Aluminum Truss Wedges

Xtreme Structures and Fabrication has a complete line of fixed and adjustable wedge blocks for all of our standard product truss.

  • Wedge  Block sizes include 10”x10”, 12”x12”, 12”x18”, 16”x16”, 20.5”x20.5”, 30”x20.5”, 26”x30”, 30”x30”, 36”x30”, 24” and 36” Space Saving Truss
  • Available for both Box and Triangle Truss
  • Fixed Wedges are available in Bolt Plate connections, Steel Fork End Connections, and our lightweight Aluminum Fork End Connections
  • Variable Wedges are available in Aluminum Fork End Connections.
  • Variable and Fixed Wedges include standard angles of 15, 30, 45, and 60 degrees.
  • Custom angles can be fabricated upon request in both the XSF Variable Wedge as well as Fixed Wedges.
  • Fabricated by AWS certified welders in the USA
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.

Now Available: Free Aluminum Truss Wedges Catalog

Download our FREE PDF catalog for detailed specifications, part numbers, and configurations of our aluminum truss wedges. This guide includes everything you need to ensure secure, accurate, and efficient truss connections for your stage or structural design.

Download Free Hinge Wedges Blocks

FREE DOWNLOAD

Send download link to:

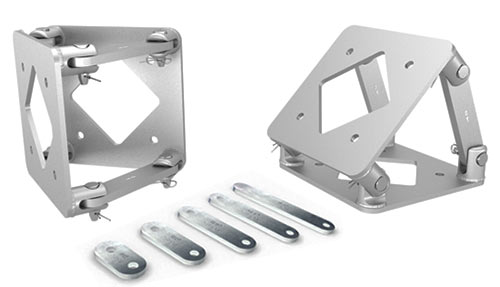

Variable Wedge Block with Clevis Bars

Variable Wedge with Clevis

PART NUMBER
X-12AFE-VWDG
X-16AFE-VWDG
X-20.5AFE-VWDG
X-12-CLEVIS-XX
X-16-CLEVIS-XX
X-20.5-CLEVIS-XX

* XX – Angle of wedge block

Fixed Wedge Block

PART NUMBER
X-10WDG-125BP-XX
X-12WDG-125BP-XX
X-12WDG-125AFE-XX
X-12WDG-188FE-XX
X-12X18WDG-125BP-XX
X-12X18WDG-125AFE-XX
X-12X18WDG-188FE-XX
X-16WDG-125BP-XX
X-16WDG-125AFE-XX
X-16WDG-188FE-XX
X-20.5WDG-125BP-XX
X-20.5WDG-125AFE-XX
X-20.5WDG-188FE-XX

*XX – Angle of wedge block
