Modular Booth Truss System

What is a Modular Truss System?

It is a versatile truss system, which uses standard truss components to create multiple booth structures and layouts.

Using the truss components provided, a modular truss system can be used to create structures in the following sizes:

20′ x 20′  |  20′ x 10′  | 10′ x 20′  | 10′ x 10′  |

The truss components consist of standard 12”x12” Utility Truss with either  classic bolt plate or our new Protective Bolt PlatesStandard 24”x24” base plates support the columns and a lightweight custom rafter package quickly adapts to the various booth sizes.  The Modular Systems have a durable PVC material for the canopy and can included your custom logos, and print designs for all 4 booth sizes.

The height of the booth can be modified by changing out the columns to match overhead requirements at Tradeshows.  Engineering, guy cables and ballast requirements can be provided should the booth be located in an outdoor situation.  Each truss booth can be quickly and safely erected with a small crew of only a few people.

The XSF Modular Truss System provides a portable tradeshow display with the flexibility to adapt to different and layouts. This versatile modular truss system is perfect for users that require trade show displays, portable lighting displays, exhibition booths, DJ booths or ground support staging. If you need to turn that simple truss into a deep beautiful black truss, XSF can powder coat all modular truss sticks and accessories in a very wide range of colors.

Call one of our friendly sales staff at 903-438-1100 for more information.

XSF 20’ x 20’ Modular Booth System

X-24UBP4 each
X-12U-125PBP-1209 each
X-12U-125PBP-965 each
X-12PLCB-6way4 each
X-12PB Pinch Block5 pair
X-12U-125BP-LAD-60-Radius6 each
X-12U-125BP-LAD-120-Radius3 each
 X-12U-125BP-LAD-276 each
PVC Canopy w/ Custom Logo1 each

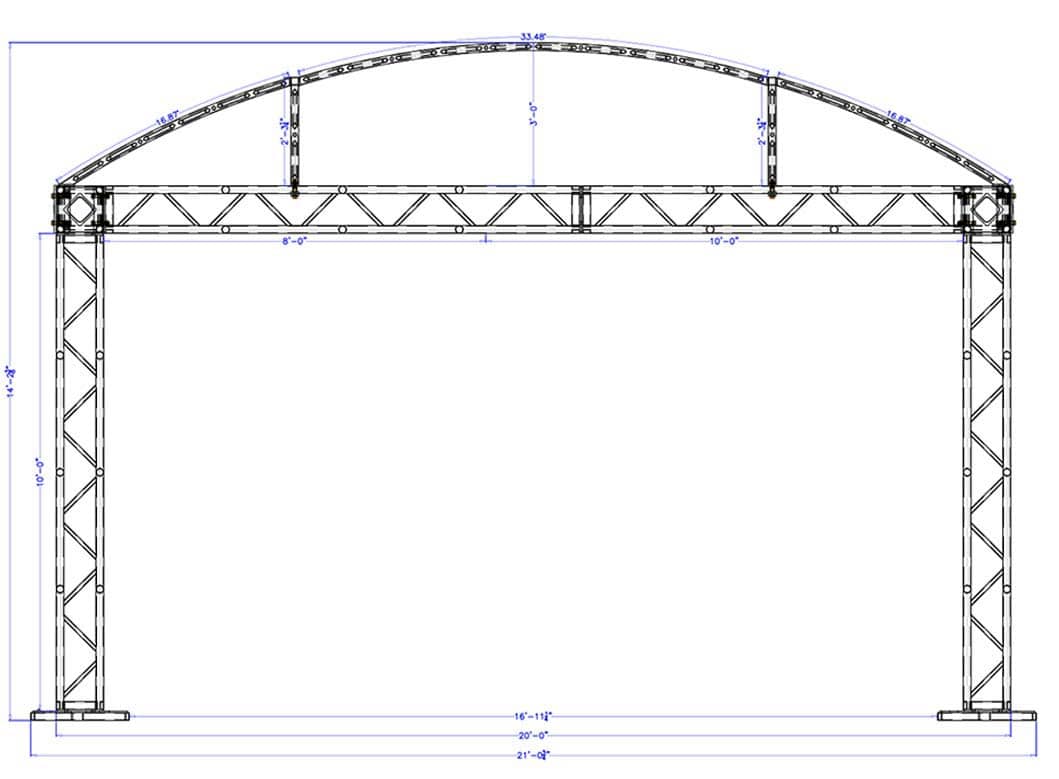

The 20′ X 20′ Modular Booth, 4 images on the right provide:

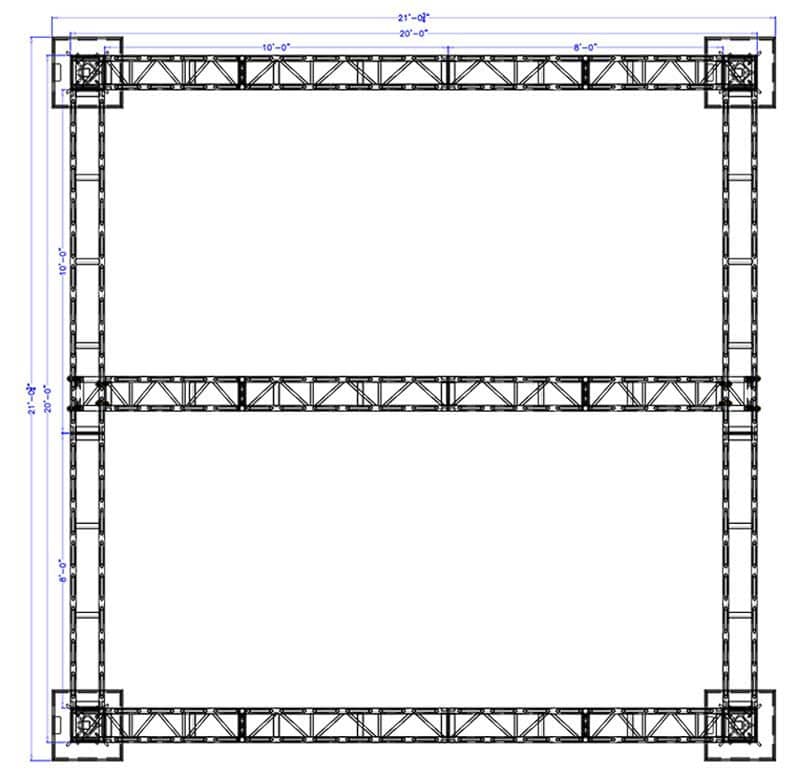

  • Top Plan View
  • Front View

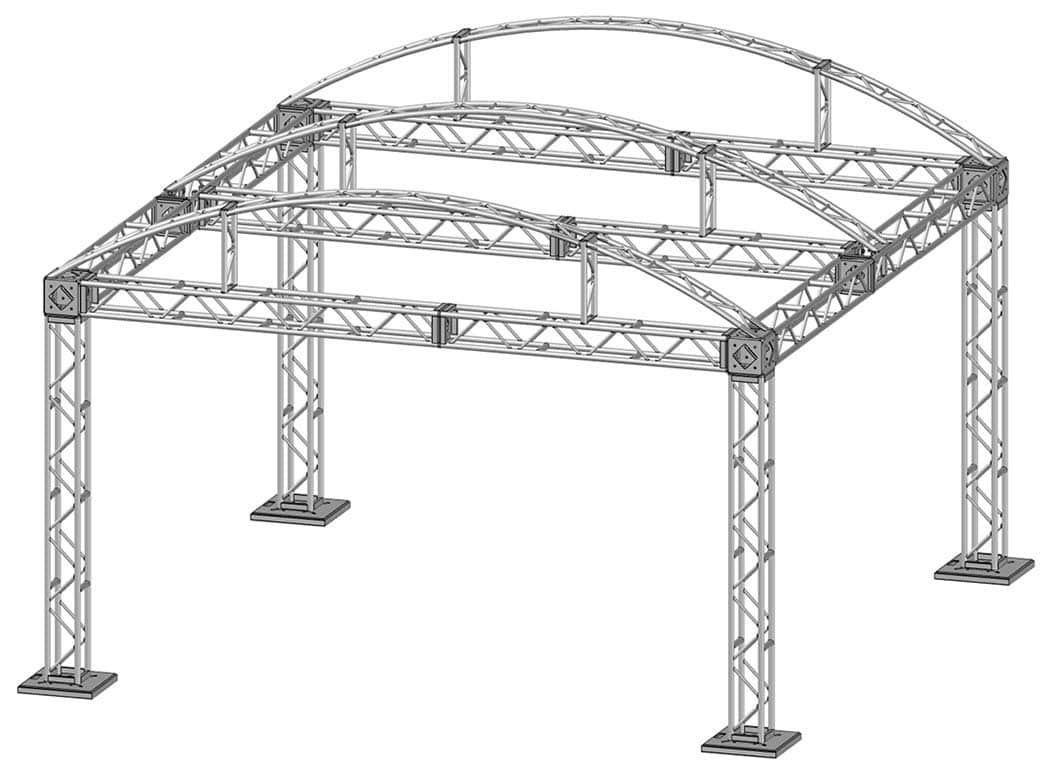

  • Isometric Skeleton

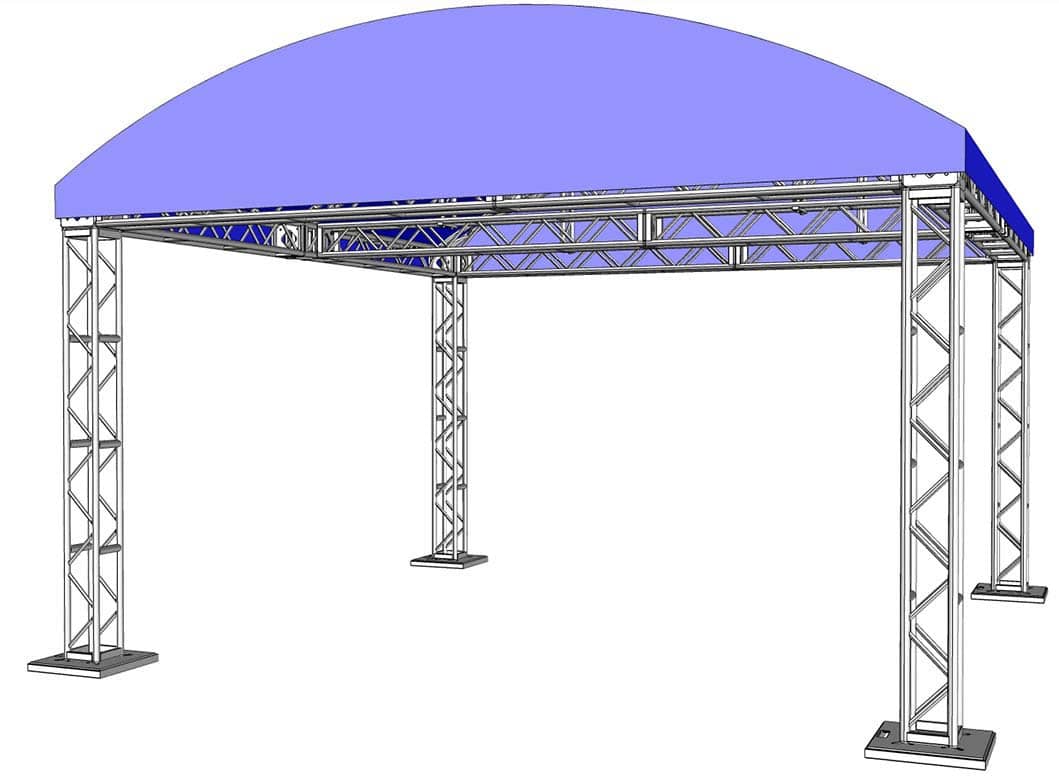

  • Assembled 3D Rendering

Use arrows ( <  > ) to navigate through the images or click to open up large Image Lightbox.

XSF 20’ x 10’ Modular Booth System

X-24UBP4 each
X-12U-125PBP-1206 each
X-12U-125PBP-964 each
X-12PLCB-6way4 each
X-12PB Pinch Block2 pair
X-12U-125BP-LAD-60-Radius4 each
X-12U-125BP-LAD-120-Radius2 each
X-12U-125BP-LAD-274 each
  PVC Canopy w/ Custom Logo1 each

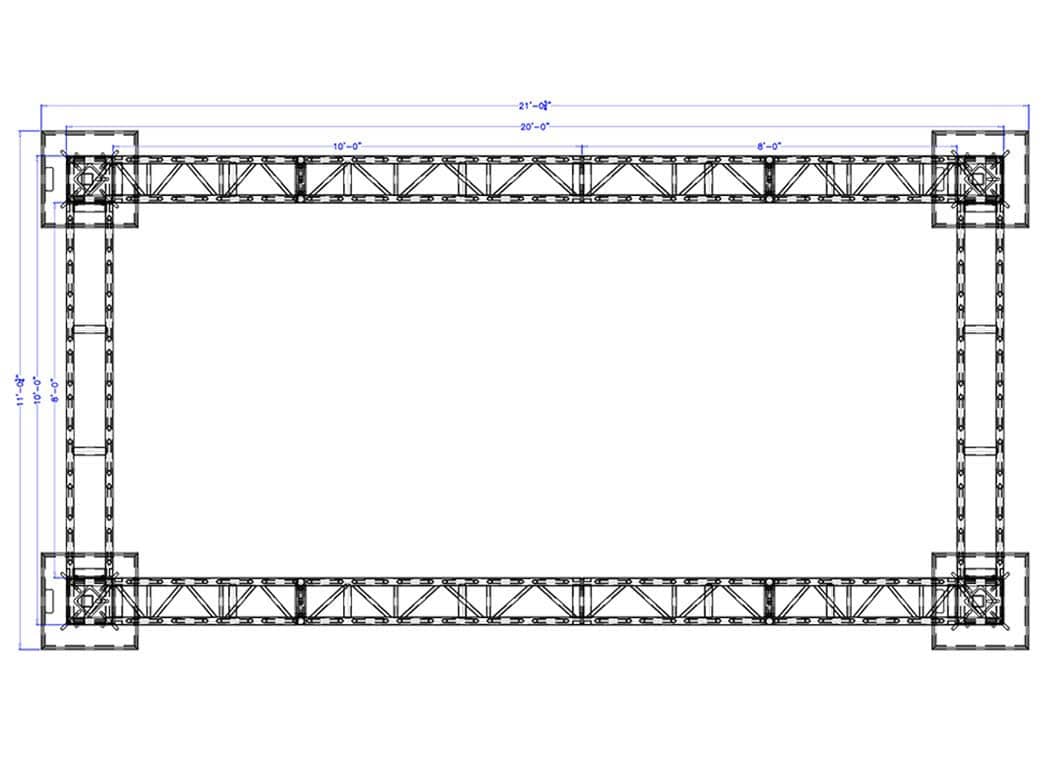

The 20′ X 10′ Modular Booth, 4 images on the right provide:

  • Top Plan View

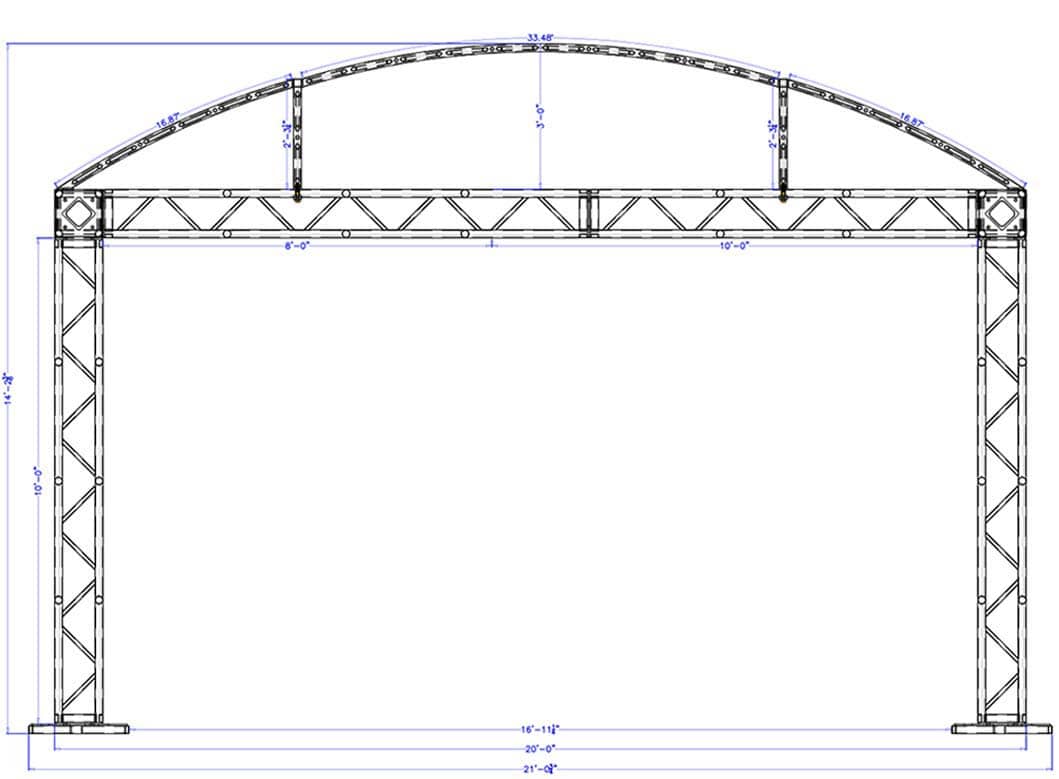

  • Front View

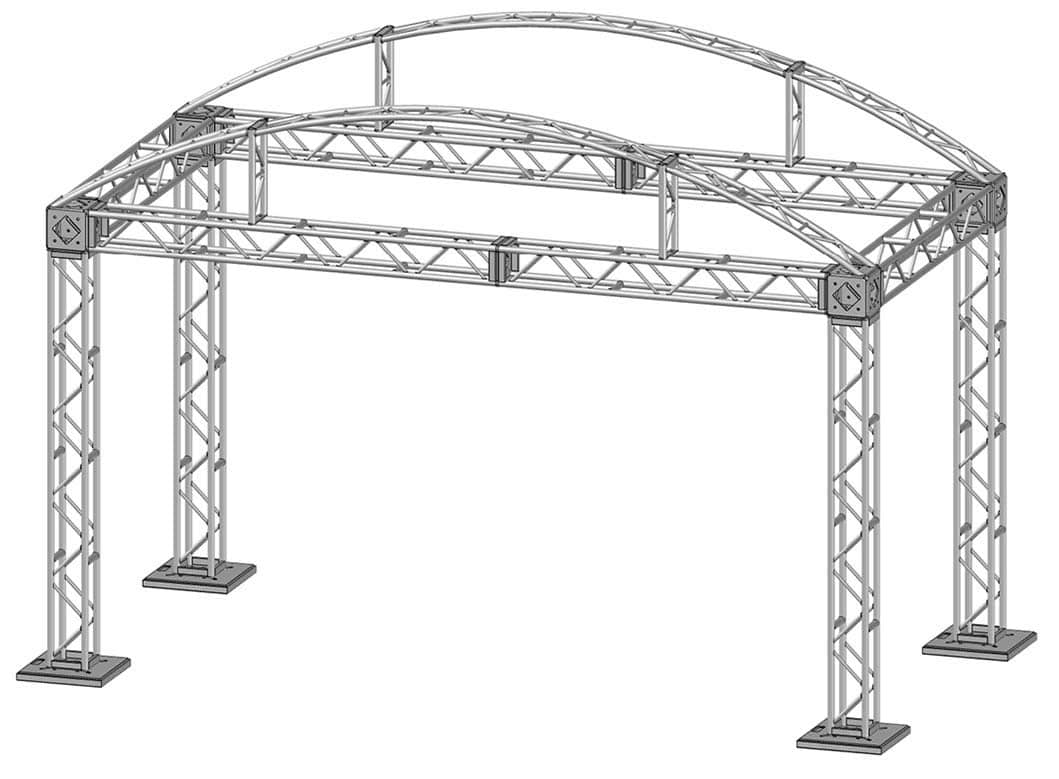

  • Isometric Skeleton

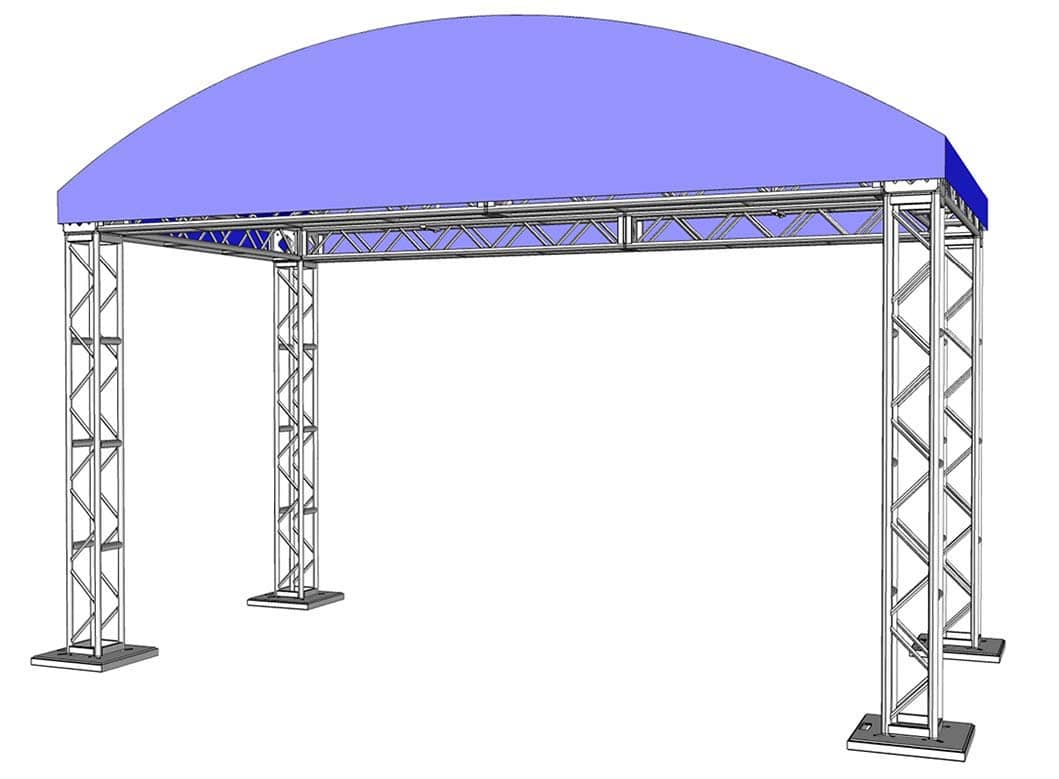

  • Assembled 3D Rendering

Use arrows ( <  > ) to navigate through the images or click to open up large Image Lightbox.

XSF 10’ x 20’ Modular Booth System

 X-24UBP4 each
 X-12U-125PBP-1206 each
 X-12U-125PBP-965 each
X-12PLCB-6way4 each
X-12PB Pinch Block4 pair
X-12U-125BP-LAD-60-Radius6 each
X-12U-125BP-LAD-273 each
 PVC Canopy w/ Custom Logo1 each

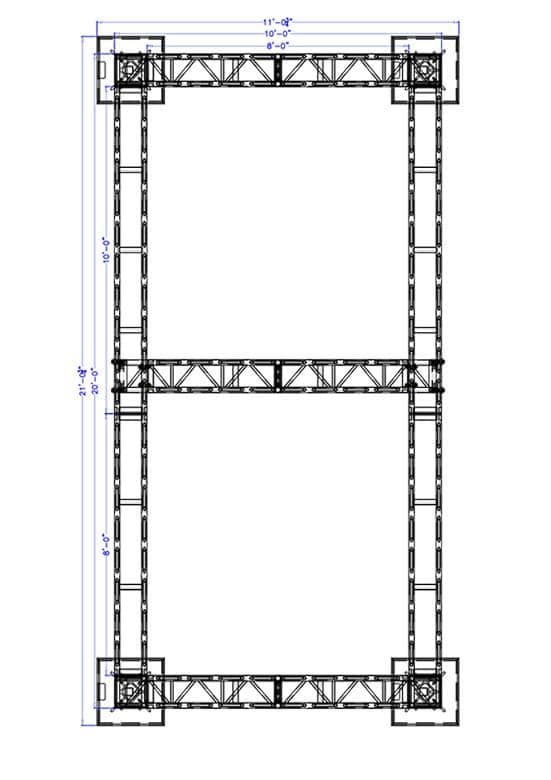

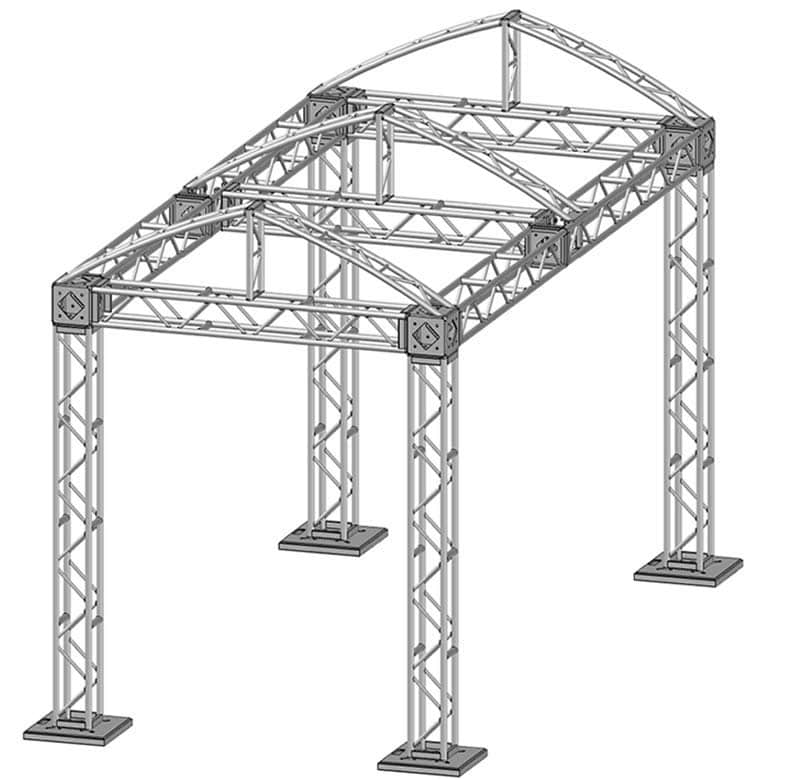

The 10′ X 20′ Modular Booth, 4 images on the right provide:

  • Top Plan View
  • Front View
  • Isometric Skeleton
  • Assembled 3D Rendering

Use arrows ( <  > ) to navigate through the images or click to open up large Image Lightbox.

XSF 10’ x 10’ Modular Booth System

X-24UBP4 each
X-12U-125PBP-1204 each
 X-12U-125PBP-964 each
X-12PLCB-6way4 each
X-12PB Pinch Block1 pair
 X-12U-125BP-LAD-60-Radius4 each
 X-12U-125BP-LAD-272 each
 PVC Canopy w/ Custom Logo1 each

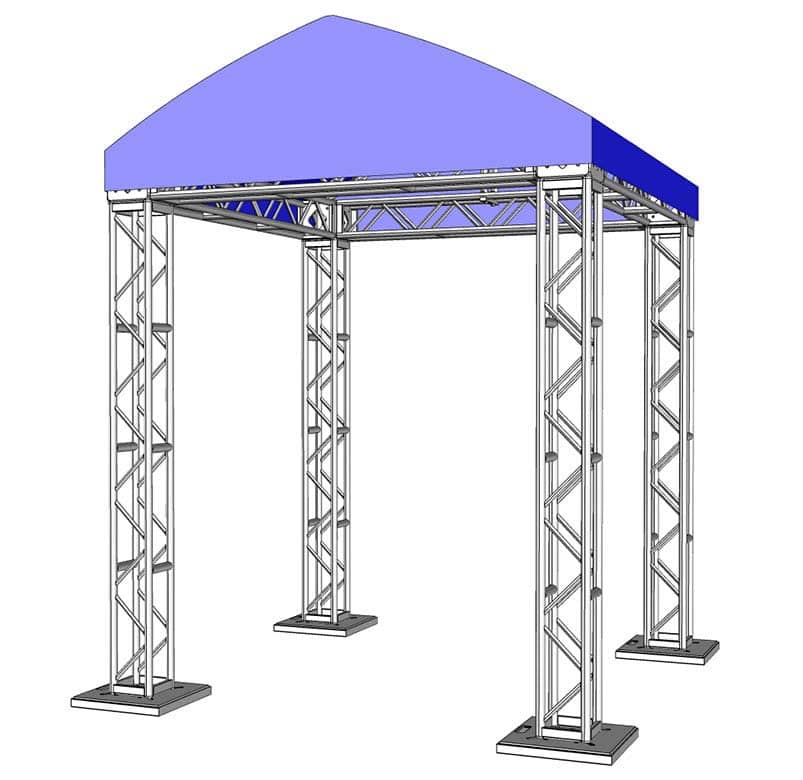

The 10′ X 10′ Modular Booth, 4 images on the right provide:

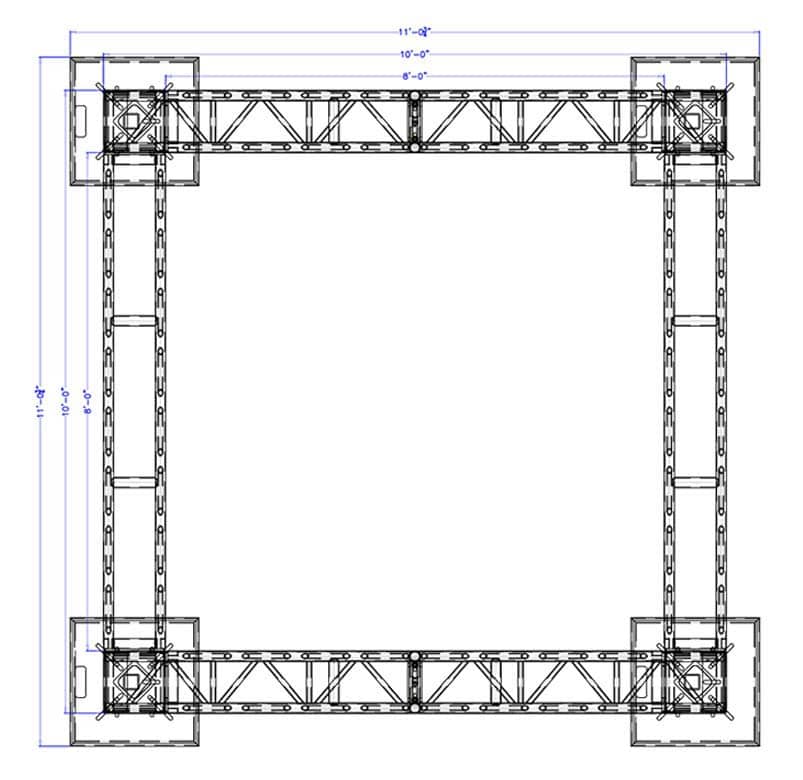

  • Top Plan View

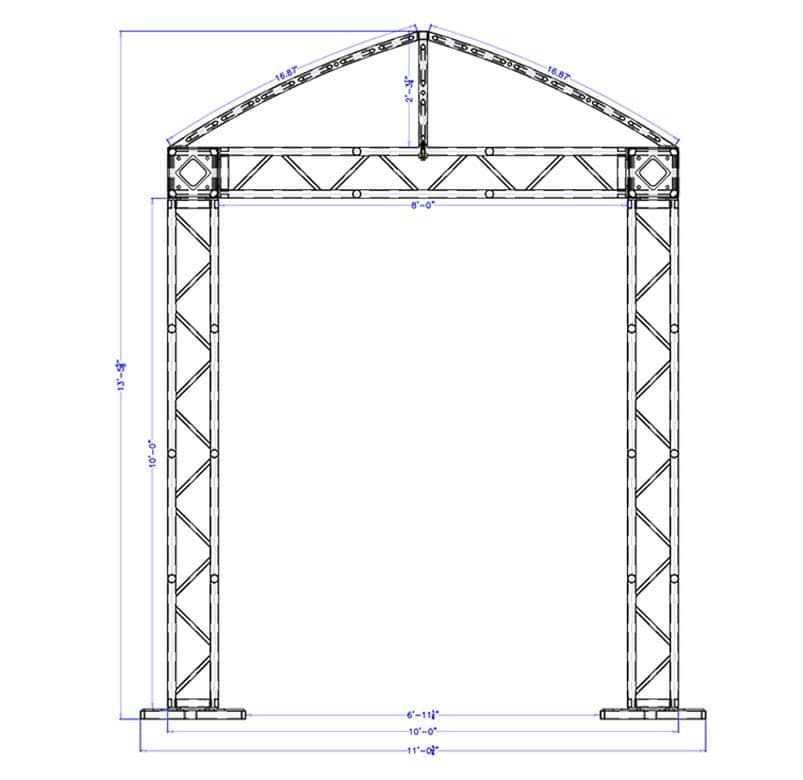

  • Front View

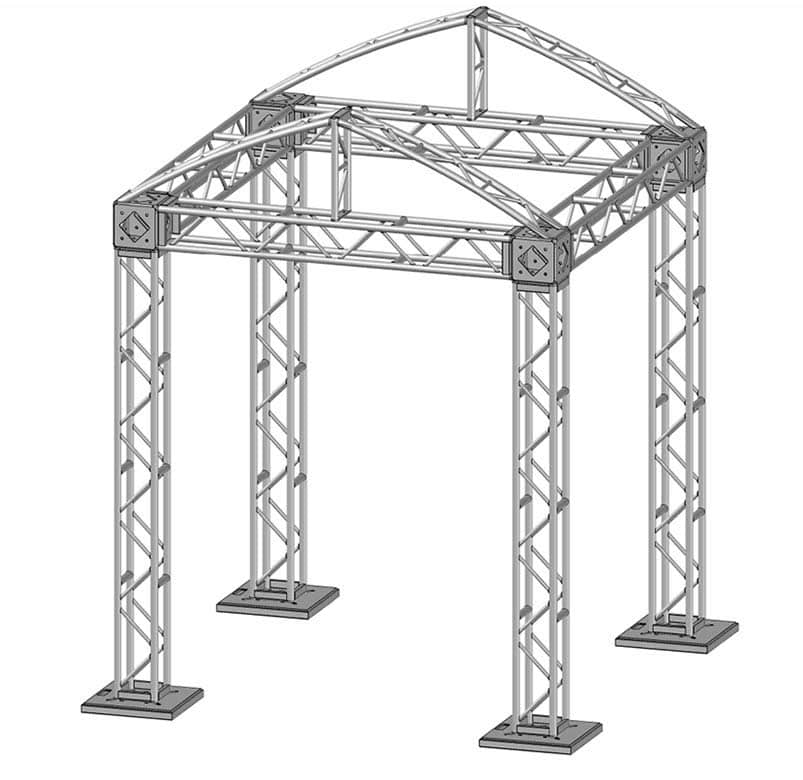

  • Isometric Skeleton
  • Assembled 3D Rendering

Use arrows ( <  > ) to navigate through the images or click to open up large Image Lightbox.
