BOX TRUSS

XSF manufactures industry standard box trusses in a wide variety of sizes, strengths, and lengths.

Standard lengths are 5’, 8’ and 10’, however, each box truss can be manufactured in any length to meet custom specifications without the custom cost.

Choose from our standard bolt plate connections, aluminum fork ends (spigots) or high strength plated steel fork end (spigot) connections depending on the strength and load rating required for your project.

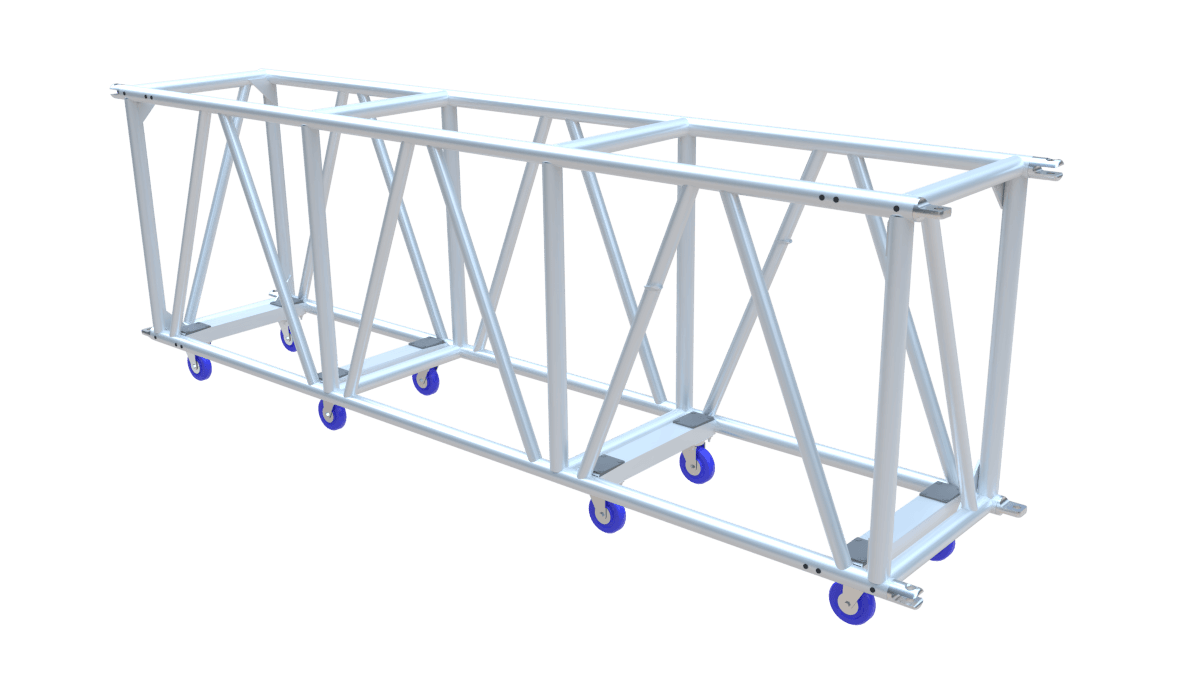

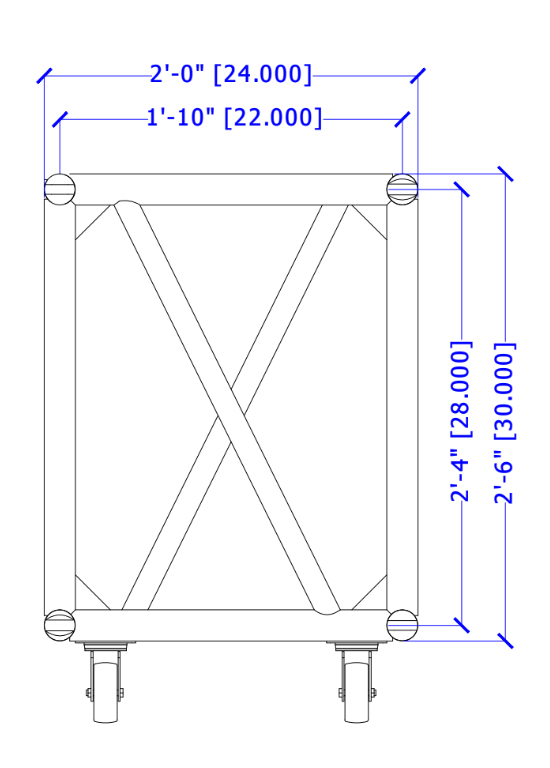

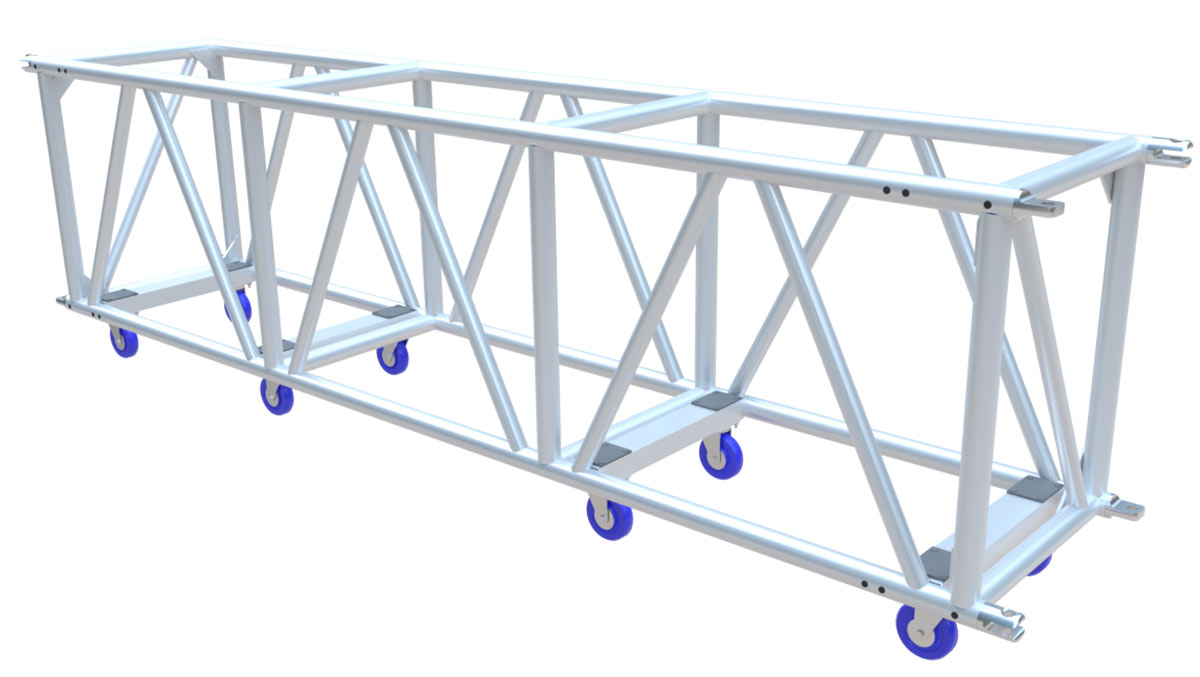

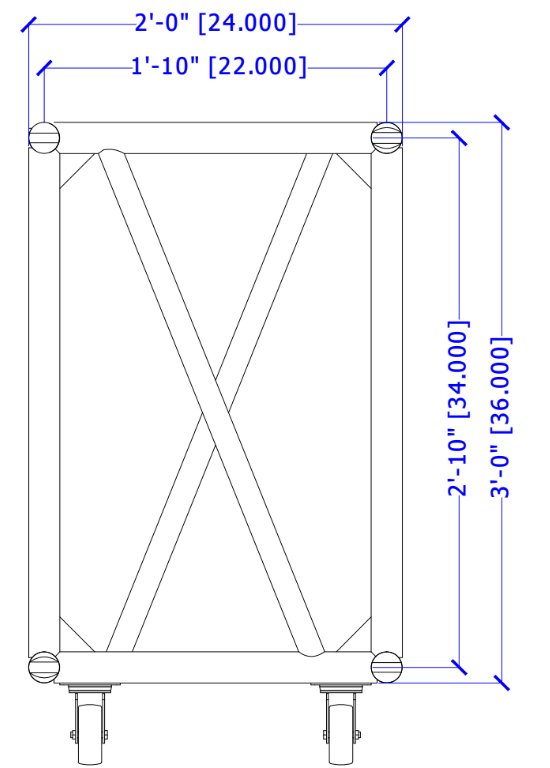

Below are some XSF Box Trussing Options we offer.

As a user of aluminum truss we highly encourage you to view the XSF video on Truss Use & Handling (video on right) . Proper use and handling of Box Truss can increase the lifespan of your truss significantly.

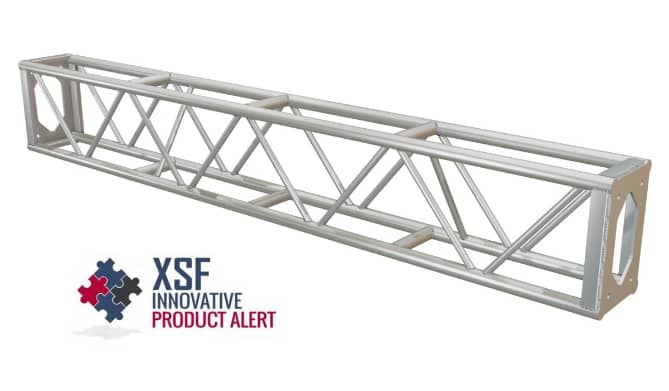

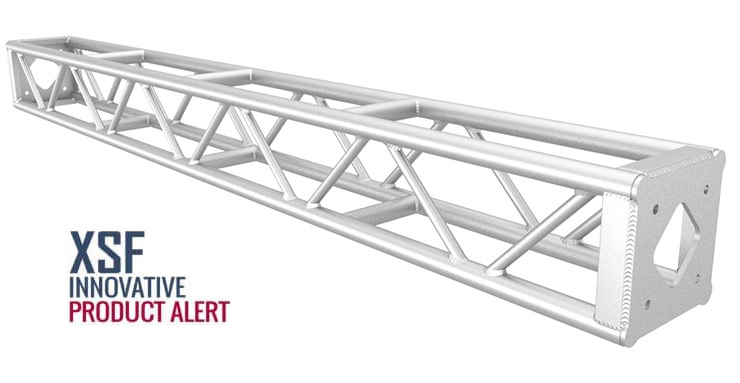

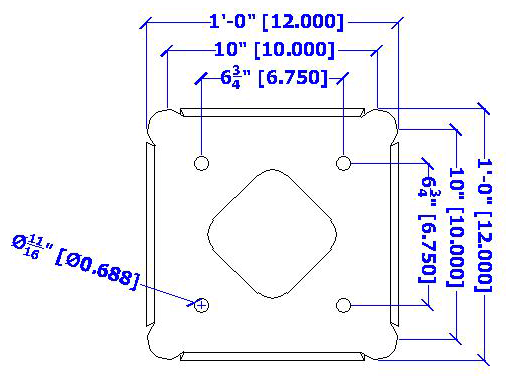

12″ x 12″ Protective Bolt Plate Utility Truss (patent pending)

12” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12U-125PBP-12010′59
X-12U-125PBP-968′49
X-12U-125PBP-605′35
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10759461034552300
20225225016901125
309614501085725
40441030625450
5019590340250

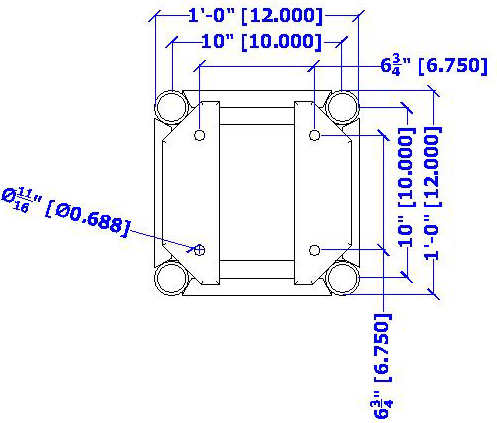

12″ x 12″ Plated Utility Truss

12″x12″ Box Utility Bolt Plate Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12U-125BP-12010′57
X-12U-125BP-968′47
X-12U-125BP-847′42
X-12U-125BP-726′39
X-12U-125BP-605′33
X-12U-125BP-484′29
X-12U-125BP-363′24
X-12U-125BP-302.5′21
X-12U-125BP-242′19
12″ x 12″ Bolt Plate Corner Blocks
X-12CB-22-Way C.B.14
X-12CB-33-Way C.B.16
X-12CB-44-Way C.B.19
X-12CB-55-Way C.B.22
X-12CB-66-Way C.B.25
X-12PLCB-66-Way Plate C.B.25
12″ x 12″ Bolt Plate Misc.
X-12-188BP-BEHBookend Hinge20
X-12-188BP-CPHCenter Pivot34
X-12U-125BP-LAD-12012″ Ladder 10′23
X-12U-125BP-LAD-9612″ Ladder 8′18
X-12U-125BP-LAD-7212″ Ladder 5′12
X-12U-125BP-LAD-6012″ Ladder 5′12
12″ x 12″ Bolt Plate Wedges
X-12WDG-125BP-11.2511.25°14
X-12WDG-125BP-22.522.5°14
X-12WDG-125BP-4545°15
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
10553276620751383988
2013413421007671479
3056850637425303
4029582434291211

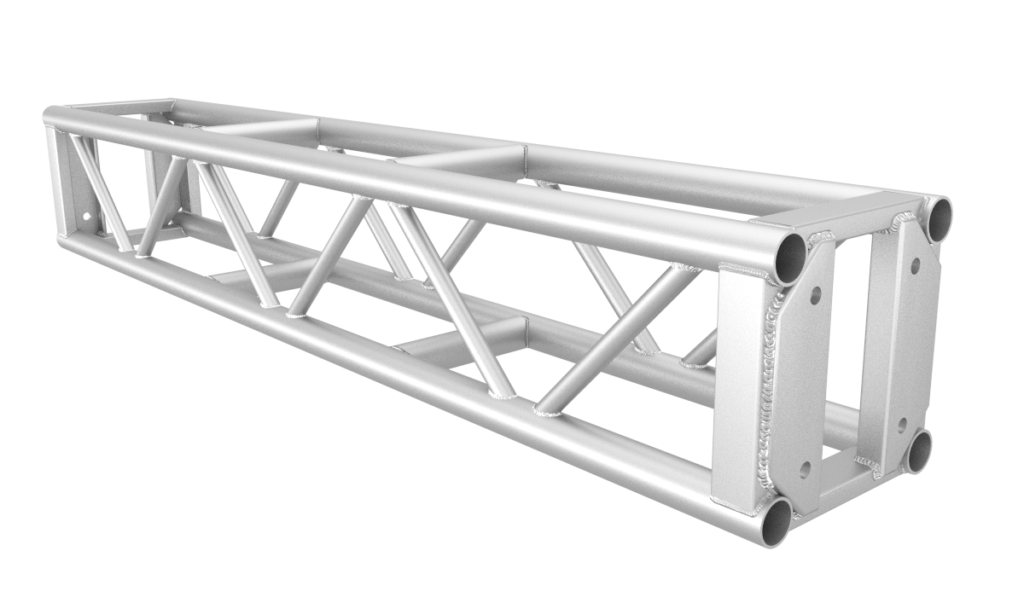

12x12-Boltplate-Utility- USA Truss

12′ x 12″ Bolt Plate Utility Truss

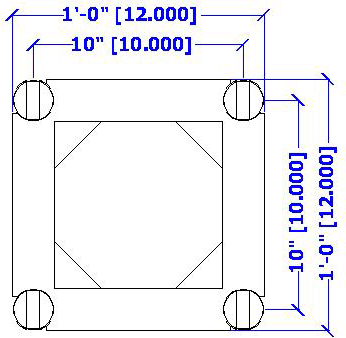

12″ x 12″ Aluminum Utility Truss with Steel Fork End Connections

12″x 12″ Aluminum Utility Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12U-188FE-12010′111
X-12U-188FE-968′98
X-12U-188FE-847′90
X-12U-199FE-726′85
X-12U-188FE-605′77
X-12U-188FE-484′72
X-12U-188FE-363′66
X-12U-188FE-302.5′63
X-12U-188FE-242′59
12″ x 12″ Fork End Corner Blocks
X-12CB-188FE22-Way C.B.32
X-12CB-188FE33-Way C.B.48
X-12CB-188FE44-Way C.B.64
X-12CB-188FE55-Way C.B.80
X-12CB-188FE66-Way C.B.96
12″ x 12″ Fork End Misc.
X-12-BP-FE ADAPTAdapter
X-12-188FE-BEHBookend Hinge18
X-12-188FE-CPHCenter Pivot29
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1010116330474831652261
203093098232315491106
3011119901225878690
4041821613411342
5011288216144120

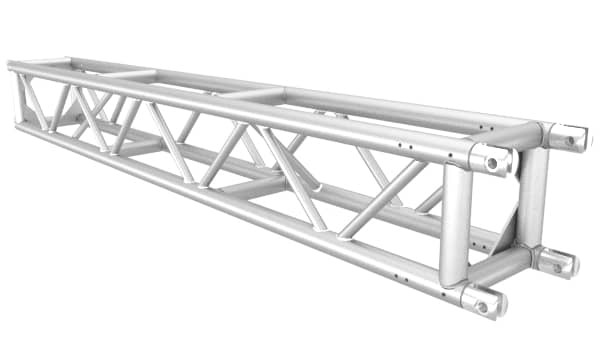

12x12-Steel-Forkend-Utility

12″ x 12″ Aluminum Utility Truss with Steel Fork End Connections

12″ x 12″ Aluminum Utility Truss with Aluminum Fork End Connections

12″x 12″ Aluminum Utility Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12U-125AFE-12010′60
X-12U-125AFE-968′50
X-12U-125AFE-847′45
X-12U-125AFE-726′41
X-12U-125AFE-605′35
X-12U-125AFE-484′30
X-12U-125AFE-363′26
X-12U-125AFE-302.5′24
X-12U-125AFE-242′20
12″ x 12″ Aluminum Fork End Corner Blocks
X-12CB-AFE22-Way C.B.
X-12CB-AFE33-Way C.B.
X-12CB-AFE44-Way C.B.
X-12CB-AFE55-Way C.B.
X-12CB-AFE66-Way C.B.
X-12-125AFE-BEHBook-End Hinge
X-12-125AFE-CPHCenter Pivot Hinge
X-12WDG-125AFE-4545° Wedge
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
109694848363624241731
20237237517811188848
30761436843604475
4028561419281234
12x12-Aluminum-Forkend-Utility -US Truss

12″ x 12″ Aluminum Utility Truss with Aluminum Fork End Connections

2000 POUND TRUSS LOAD RATING ON HORIZONTAL MEMBERS

 XSF has not only passed the base qualifications for truss strength, but has completely blown the standard out of the water!  “XSF has a certified load rating on horizontal members that is 8 times more than other truss manufacturers!”

 To Learn More, click here..

certified 1 ton rating Truss

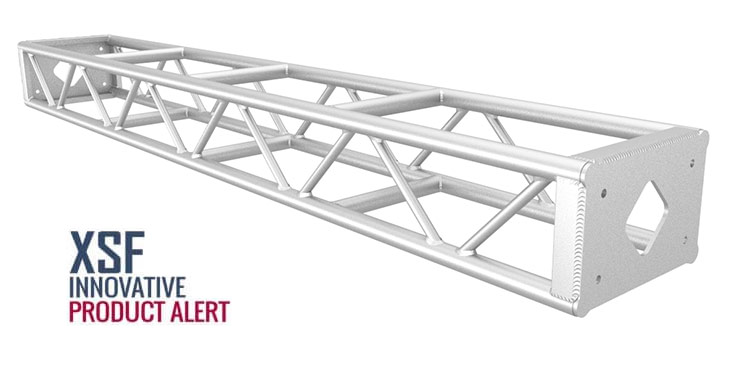

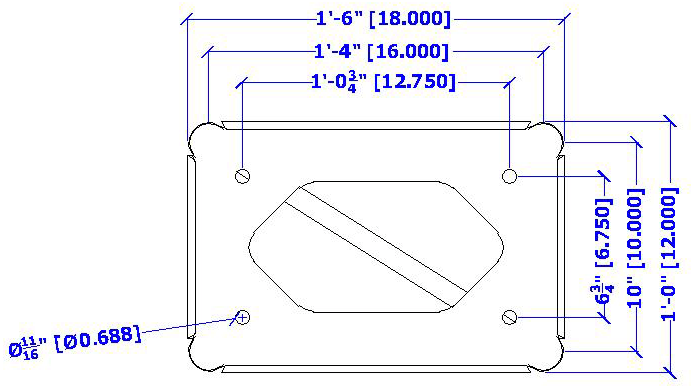

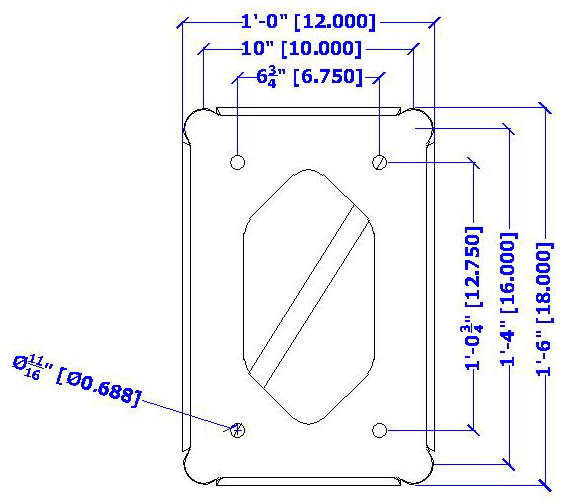

12″ x 18″ Protective Bolt Plate Utility Truss (patent pending)

12”x18” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12X18U-125PBP-12010′70
X-12X18U-125PBP-968′61
X-12X18U-125PBP-605′43
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10759461034552300
20225225016901125
309614501085725
40441030625450
5019590340250

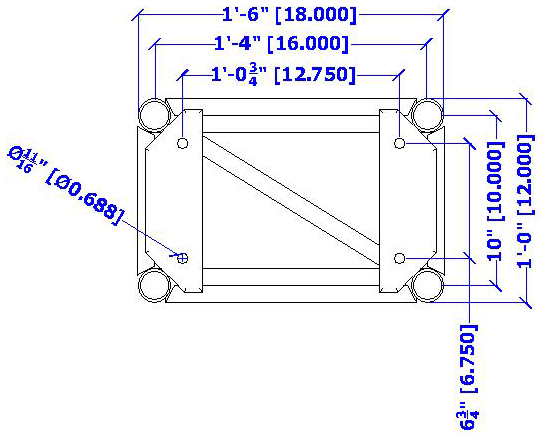

12″ x 18″ Plated Utility Truss

12″x18″ Utility Bolt Plate Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12x18U-125BP-12010′60
X-12x18U-125BP-968′51
X-12x18U-125BP-847′43
X-12x18U-125BP-726′39
X-12x18U-125BP-605′35
X-12x18U-125BP-484′31
X-12x18U-125BP-363′26
X-12x18U-125BP-302.5′23
X-12x18U-125BP-242′21
12″ x 18″ Bolt Plate Corner Blocks
X-12x18U-125BP22-Way C.B.19
X-12x18U-125BP33-Way C.B.21
X-12x18U-125BP44-Way C.B.24
X-12x18U-125BP55-Way C.B.27
X-12x18U-125BP66-Way C.B.30
12″ x 18″ Bolt Plate Misc
X-12x18U-125BP-BEHBookend Hinge25
X-12x18U-125BP-CPHCenter Pivot39
X-12x18U-125BP-LAD-120Ladder 10′28
X-12x18U-125BP-LAD-96Ladder 8′23
X-12x18U-125BP-LAD-60Ladder 5′17
12″ x 18″ Bolt Plate Wedges
X-12x18WDG-125BP-11.2511.25°19
X-12x18WDG-125BP-22.522.5°19
X-12x18WDG-125BP-4545°20
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
10552276520741382987
2013313401005670479
3056846635423302
4028578431289209

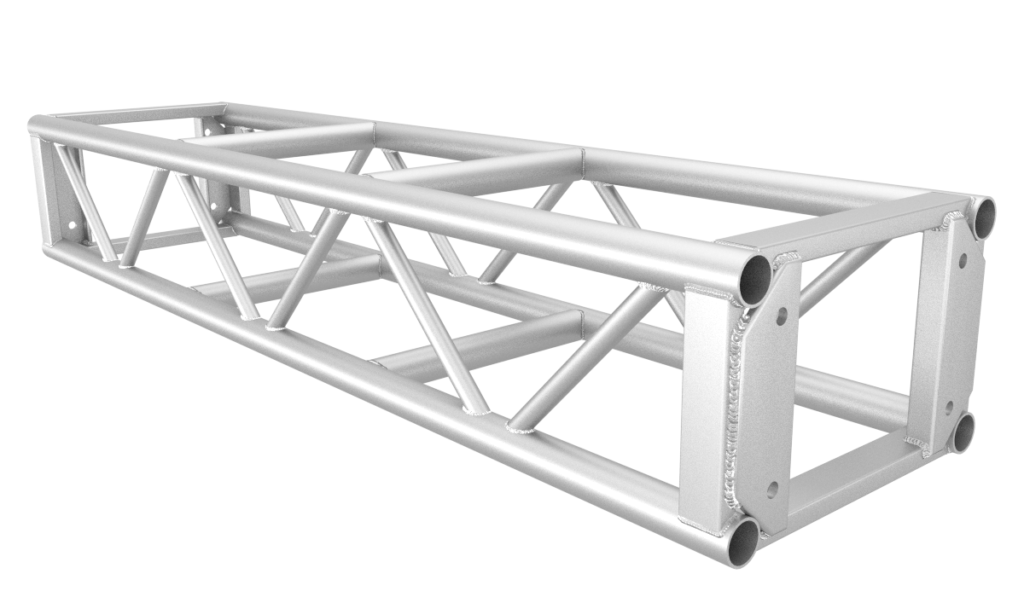

XSF 12x18-BoltPlate-Utility

12″ x 18″ Bolt Plate Utility

12″ x 18″ Aluminum Utility Truss with Steel Fork End Connections

12″x18″ Aluminum Utility Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12x18U-188FE-12010′116
X-12x18U-188FE-968′102
X-12x18U-188FE-847′95
X-12x18U-188FE-726′90
X-12x18U-188FE-605′81
X-12x18U-188FE-484′75
X-12x18U-188FE-363′69
X-12x18U-188FE-302.5′66
X-12x18U-188FE-242′62
12″ x 18″ Fork End Corner Blocks
X-12x18CB-188FE22-Way C.B.37
X-12x18CB-188FE33-Way C.B.53
X-12x18CB-188FE44-Way C.B.69
X-12x18CB-188FE55-Way C.B.85
X-12x18CB-188FE66-Way C.B.101
12″ x 18″ Fork End Misc.
X-12×18-BP-FE ADAPTAdapter
X-12×18-188FE-BEHBookend Hinge23
X-12×18-188BFE-CPHCenter Pivot34
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1010126332474931662261
203103102232615511108
3011119961229882693
4041829619415345

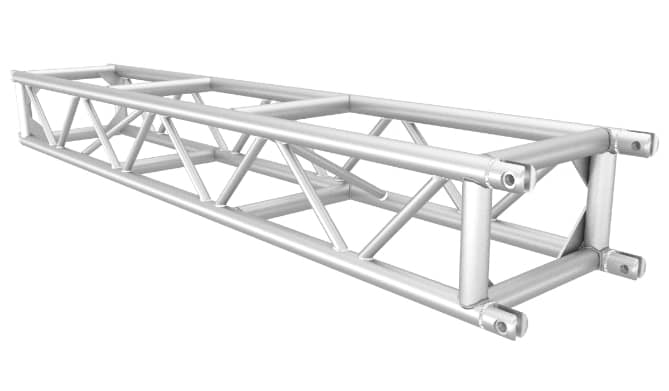

12x18-Aluminum-Forkend

12″ x 18″ Aluminum Utility Truss with Steel Fork End Connections

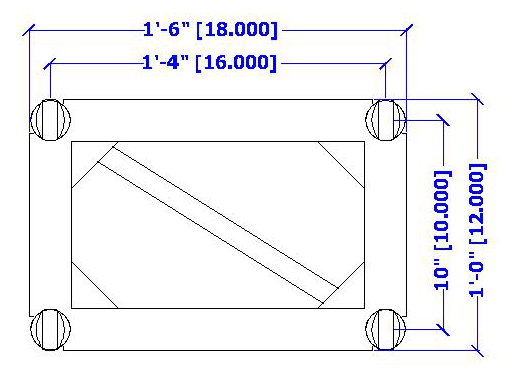

12″ x 18″ Aluminum Utility Truss with Aluminum Fork End Connections

12″x18″ Aluminum Utility Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12x18U-125AFE-12010′65
X-12x18U-125AFE-968′54
X-12x18U-125AFE-847′49
X-12x18U-125AFE-726′45
X-12x18U-125AFE-605′38
X-12x18U-125AFE-484′33
X-12x18U-125AFE-363′29
X-12x18U-125AFE-302.5′27
X-12x18U-125AFE-242′24
12″ x 18″ Aluminum Fork End Corner Blocks
X-12x18CB-AFE22-Way C.B.
X-12x18CB-AFE33-Way C.B.
X-12x18CB-AFE44-Way C.B.
X-12x18CB-AFE55-Way C.B.
X-12x18CB-AFE66-Way C.B.
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
109694848363624241731
20237237517811188848
30761436843604475
4028561419281234

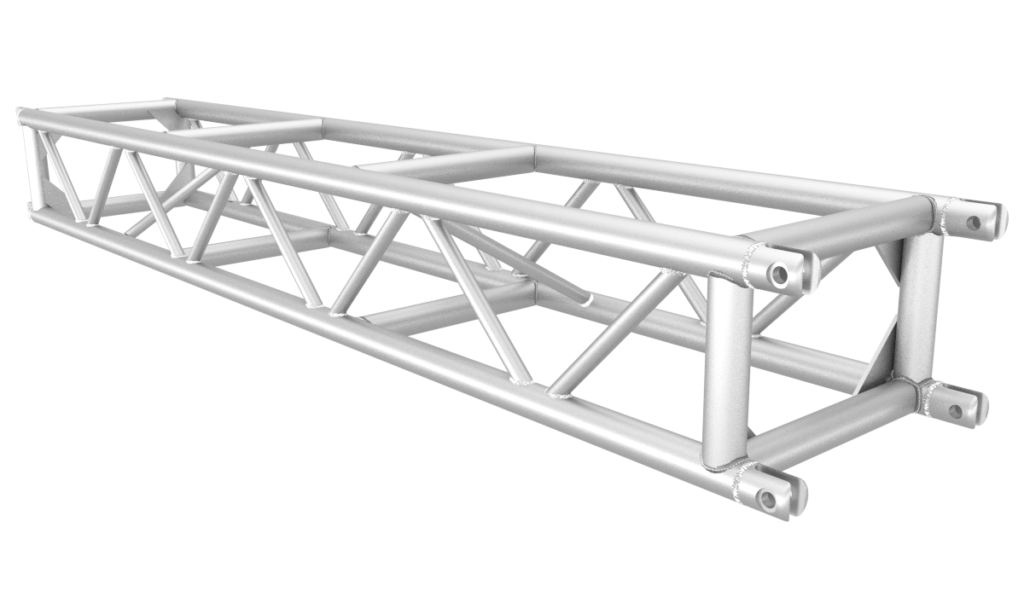

12x18-Aluminum-Forkend

12″ x 18″ Aluminum Utility Truss with Aluminum Fork End Connections

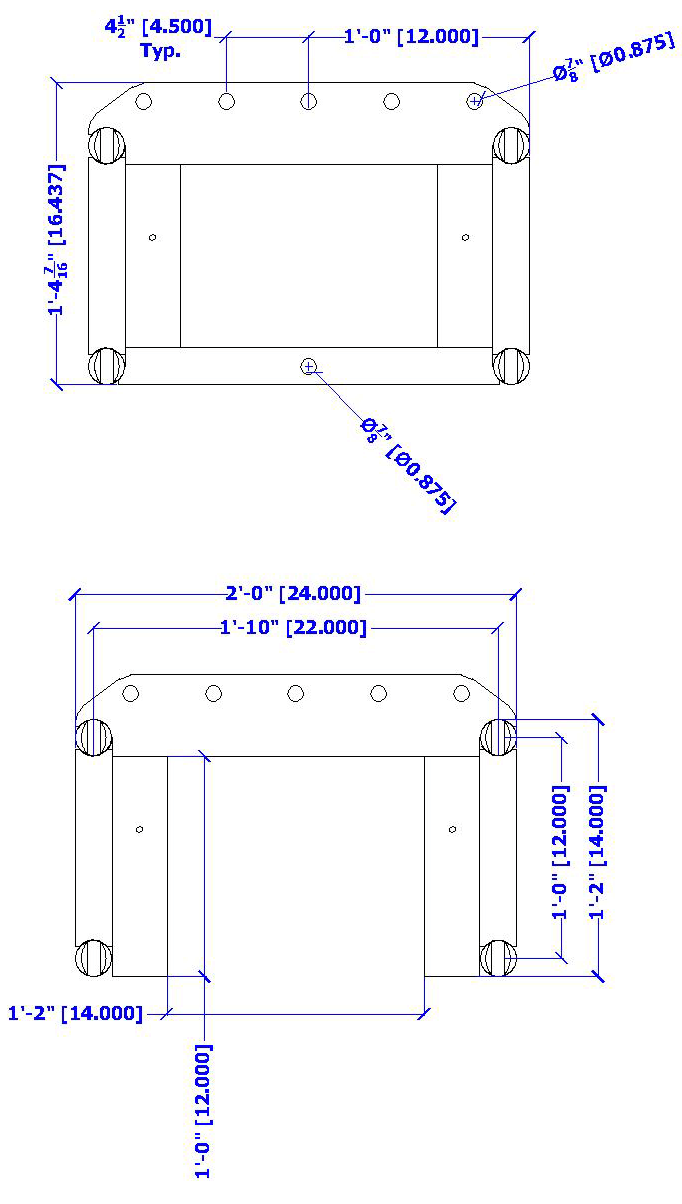

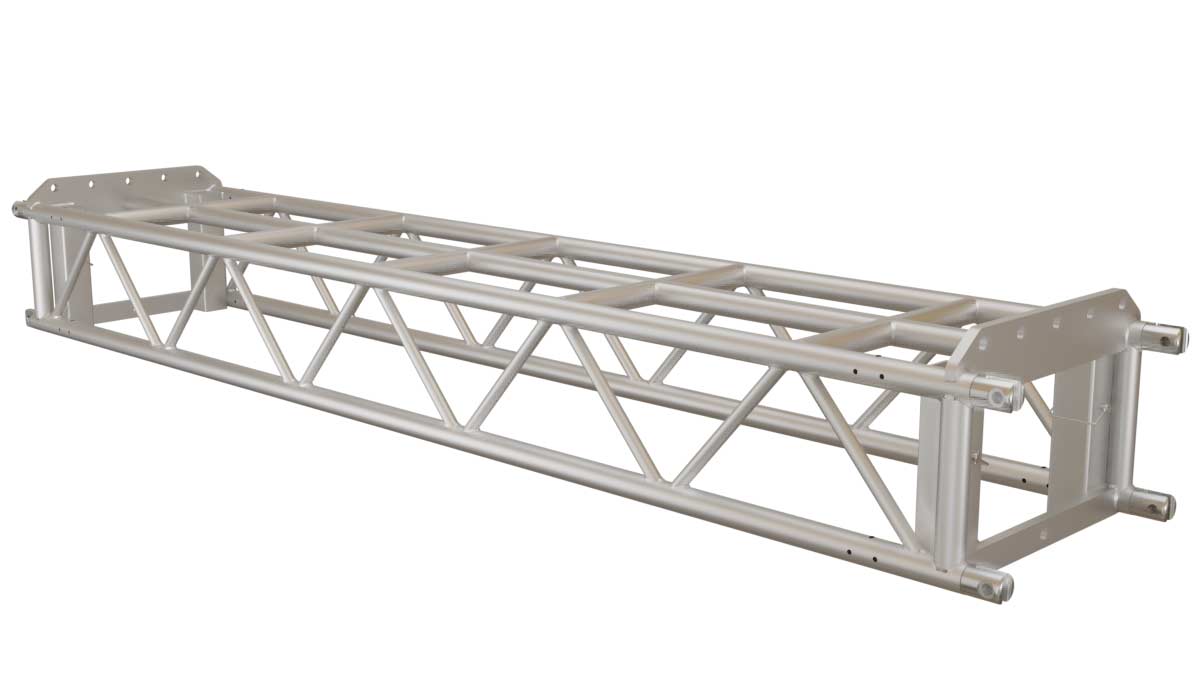

14″ x 24″ Moving Light, Automation and Video Wall (MAV) Truss

14″ x 24″ Moving Light, Automation and Video Wall (MAV) Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/8″  thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-14X24-375FE-12010′
X-14X24-375FE-968′
X-14X24-375FE-607′
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1010378793518734582594
204294290321721451787
301832741205613701142
409719311448965805
505714161062708590
60351050787525437

14″ x 24″ Moving Light, Automation and Video Wall (MAV) Truss

USA MADE ALUMINUM TRUSS

All XSF Truss is 100% USA Made.  Our truss manufacturing and fabrication facility is located in Sulphur Springs, Texas and has been operating since 2002. We have a 43,000 sq. foot shop facility that we plan to expand in 2020.

USA Aluminum Made Truss

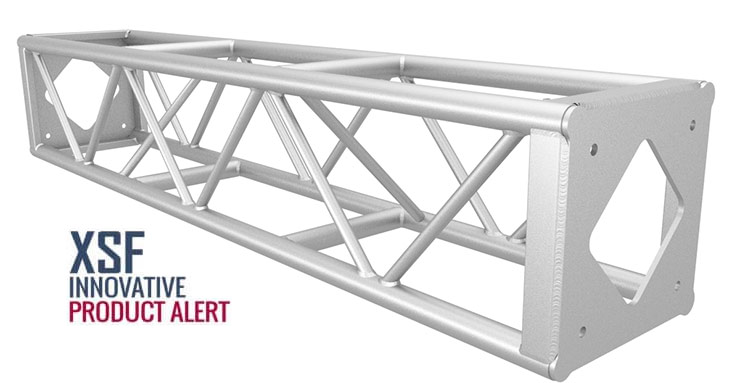

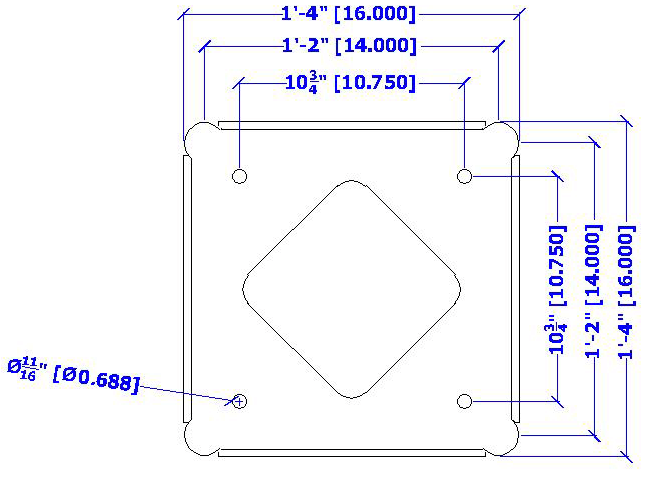

16″ x 16″ Protective Bolt Plate Utility Truss (patent pending)

16” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-16U-125PBP-12010′70
X-16U-125PBP-968′60
X-16U-125PBP-605′44
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10844615046153075
20300301522601510
3013019501460975
407013951045700
50381045680490

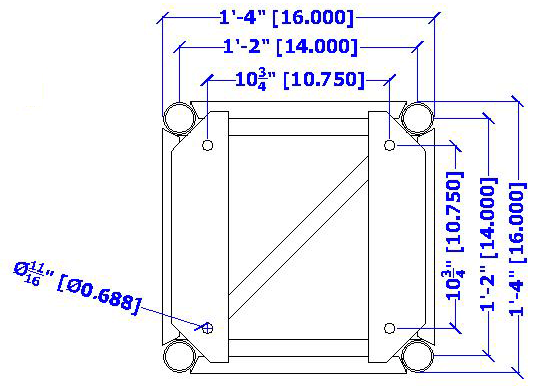

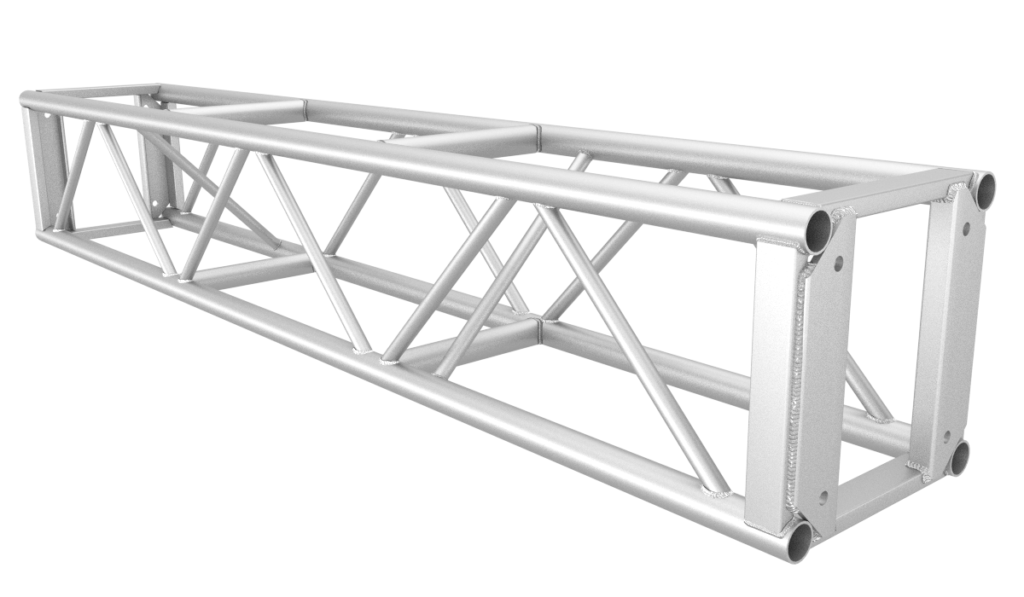

16″ x 16″ Plated Utility Truss

16″x 16″ Utility Bolt Plate Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request. The chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-16U-125BP-12010′66
X-16U-125BP-968′55
X-16U-125BP-605′40
X-16CB-125BP-22-Way Corner Block
X-16CB-125BP-33-Way Corner Block
X-16CB-125BP-44-Way Corner Block
X-16CB-125BP-55-Way Corner Block
X-16CB-125BP-66-Way Corner Block
X-16-125PLCB-66-Way Plated Corner Block
X-16-188BP-BEHBook-End Hinge
X-16-188BP-CPHCenter Pivot Hinge
X-16WDG-125BP-4545° Wedge
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
108444223316721111508
20206206215461031736
30871320990660471
4046932699466333
5027687515343245
USA Truss 16x16-BoltPlate-Utility

16″x 16″ Bolt Plate Utility

16″ x 16″ Aluminum Utility Truss with Steel Fork End Connections

16″x16″ Aluminum Utility Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-16U-188FE-12010′119
X-16U-188FE-968′106
X-16U-188FE-605′85
X-16CB-188FE-22-Way Corner Block
X-16CB-188FE-33-Way Corner Block
X-16CB-188FE-44-Way Corner Block
X-16CB-188FE-55-Way Corner Block
X-16CB-188FE-66-Way Corner Block
X-16-188FE-BEHBook-End Hinge
X-16-188FE-CPHCenter Pivot Hinge
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1011108876555137012775
204364364327321821559
301882827212014131010
408820341303934726
50401148746535420

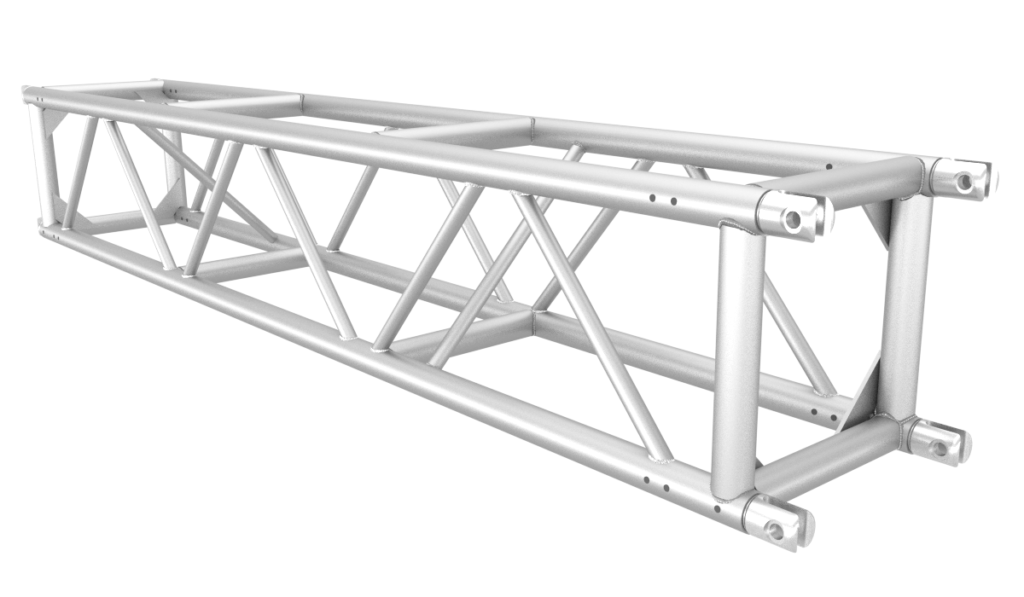

16x16-Steel-Forkend-Utility-

16″x 16″ Aluminum Utility Truss with Steel Fork End Connections

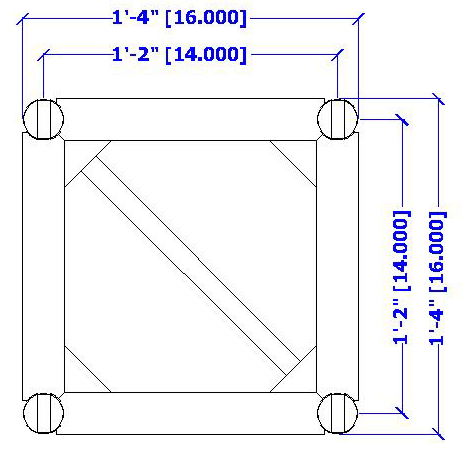

16″ x 16″ Aluminum Utility Truss with Aluminum Fork End Connections

16″x16″ Aluminum Utility Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

PART NUMBERLENGTHWEIGHT (lbs)
X-16U-125AFE-12010′67
X-16U-125AFE-968′57
X-16U-125AFE-605′41
X-16CB-125AFE-22-Way Corner Block
X-16CB-125AFE-33-Way Corner Block
X-16CB-125AFE-44-Way Corner Block
X-16CB-125AFE-55-Way Corner Block
X-16CB-125AFE-66-Way Corner Block
X-16-125AFE-BEHBook-End Hinge
X-16-125AFE-CPHCenter Pivot Hinge
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1010516799509934002428
203353350251316751197
30145217916341089778
40611538903647509
5028799519372292
XSF 16x16-Aluminum-Forkend-Utility

16″ x 16″ Aluminum Utility Truss with Aluminum Fork End Connections

18″ x 12″ Protective Bolt Plate Utility Truss (patent pending)

18” x 12” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-18X12U-125PBP-12010′ Truss
X-18X12U-125PBP-968′ Truss
X-18X12U-125PBP-605′ Truss
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1010236627497033132558
203263260244516301358
30141211415851057881
407615231142762635
50381154689499396

18' X12

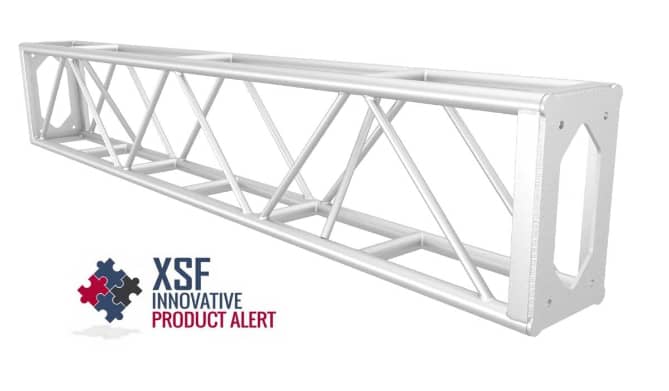

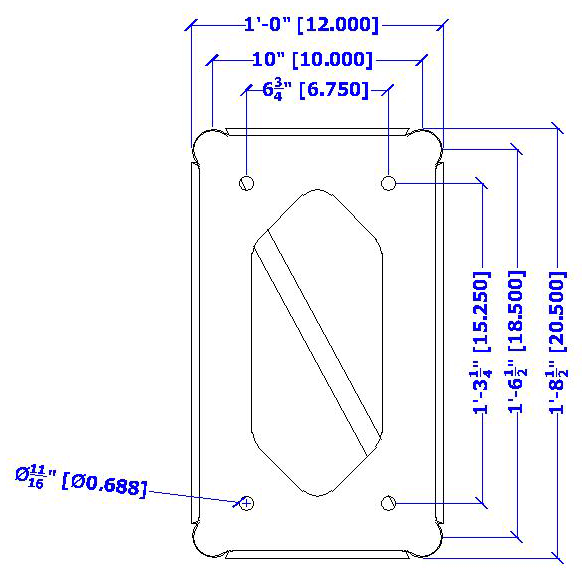

20.5” x 12” Protective Bolt Plate Utility Truss (patent pending)

20.5” x 12” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-20.5X12U-125PBP-12010′ Truss
X-20.5X12U-125PBP-968′ Truss
X-20.5X12U-125PBP-605′ Truss
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10982788549103275
20390387529101940
30165251018851255
409018101355900
505513651025686

Box Truss 20.5 x 12 Protective Bolt Plate Truss

20.5” x 12” Protective Bolt Plate Utility Truss

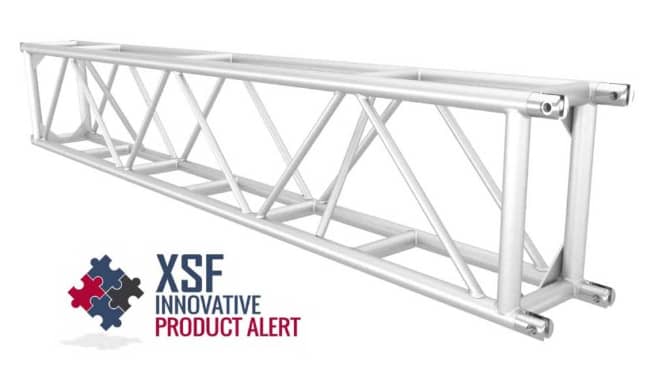

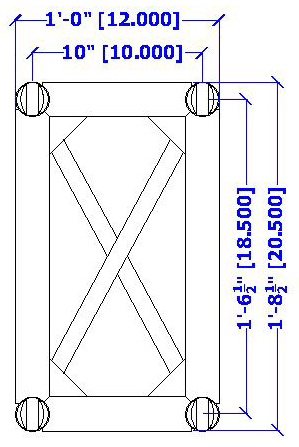

20.5″ x 12″ Aluminum Utility Truss with Steel Fork End Connections

20.5″ X 12″ Aluminum Utility Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-20.5x12U-188FE-12010′ Truss
X-20.5x12U-188FE-968′ Truss
X-20.5x12U-188FE-605′ Truss
X-20.5x12CB-188FE-22-Way Corner Block
X-20.5x12CB-188FE-33-Way Corner Block
X-20.5x12CB-188FE-44-Way Corner Block
X-20.5x12CB-188FE-55-Way Corner Block
X-20.5x12CB-188FE-66-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
10107410344537035802685
205085083381325422118
302193291246816451371
40118236517741182985
507117861339893744
6039138843611485

20x12-forkend-truss

20.5” x 12” Aluminum Utility Truss with Steel Fork End Connections

20.5″ x 12″ Aluminum Utility Truss with Aluminum Fork End Connections

20.5″x 12″ Aluminum Utility Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

PART NUMBERLENGTHWEIGHT (lbs)
X-20.5x12U-125AFE-12010′ Truss
X-20.5x12U-125AFE-968′ Truss
X-20.5x12U-125AFE-605′ Truss
X-20.5x12CB-125AFE-22-Way Corner Block
X-20.5x12CB-125AFE-33-Way Corner Block
X-20.5x12CB-125AFE-44-Way Corner Block
X-20.5x12CB-125AFE-55-Way Corner Block
X-20.5x12CB-125AFE-66-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1010797141535635712698
203523521264117611467
30153229217191146955
408316621246831692
50511270952635529

20x12-aluminium-forkend

20.5” x 12” Aluminum Utility Truss with Aluminum Fork End Connections

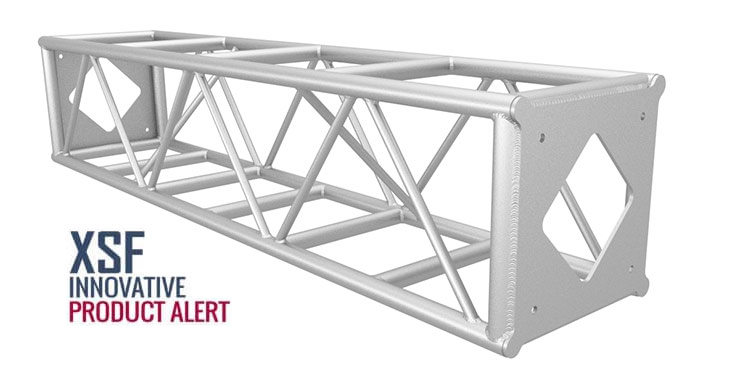

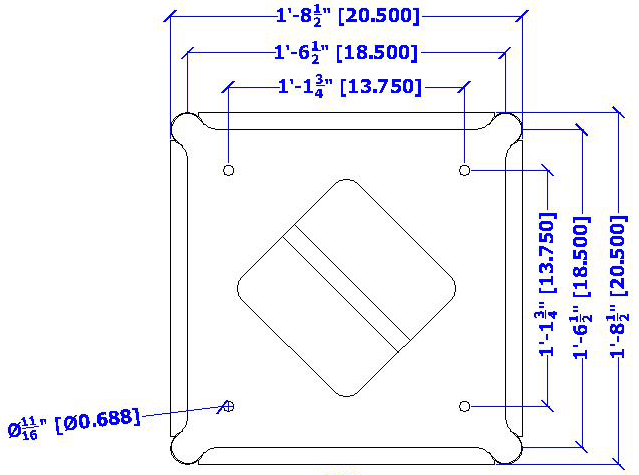

20.5″ x 20.5″ Protective Bolt Plate Utility Truss (patent pending)

20.5” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-20.5U-125PBP-12010′86
X-20.5U-125PBP-968′78
X-20.5U-125PBP-605′58
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10982788549103275
20390387529101940
30165251018851255
409018101355900
505513651025685

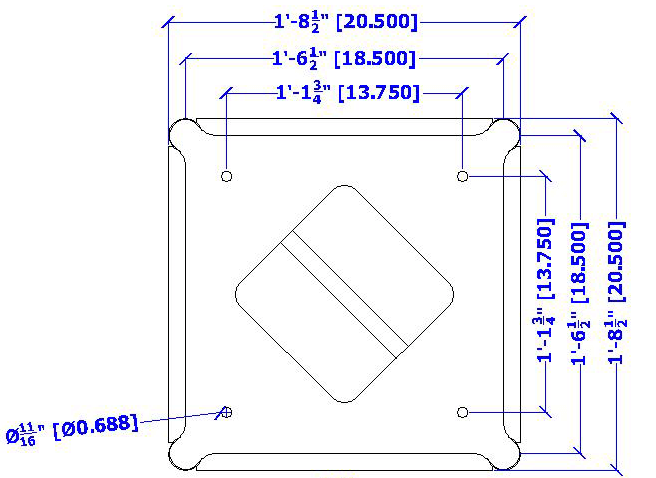

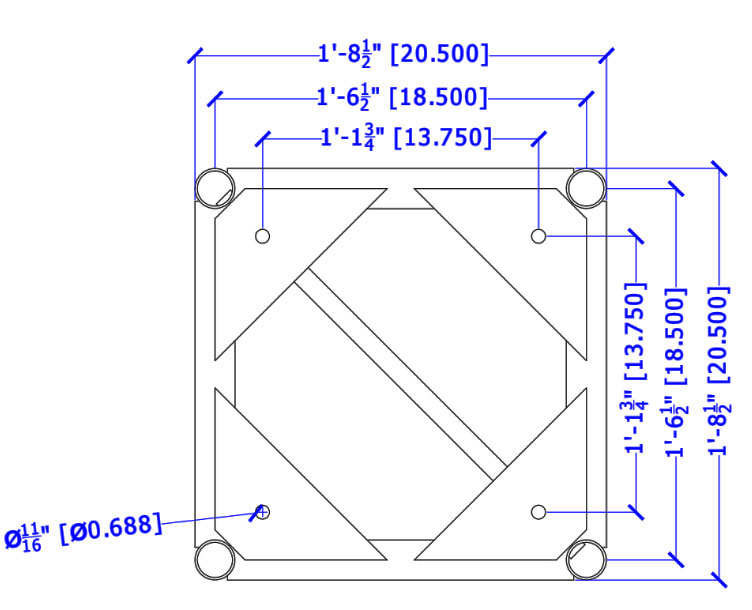

20.5″ x 20.5″ Plated Utility Truss

20.5″x20.5″ Utility Bolt Plate Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-20.5U-125BP-12010′80
X-20.5U-125BP-968′72
X-20.5U-125BP-847′63
X-20.5U-125BP-726′58
X-20.5U-125BP-605′52
X-20.5U-125BP-484′46
X-20.5U-125BP-363′40
X-20.5U-125BP-302.5′38
X-20.5U-125BP-242′35
20.5″ x 20.5″ Bolt Plate Corner Blocks
X-20.5CB-125BP-22-Way C.B.34
X-20.5CB-125BP-33-Way C.B.40
X-20.5CB-125BP-44-Way C.B.46
X-20.5CB-125BP-55-Way C.B.53
X-20.5CB-125BP-66-Way C.B.55
X-20.5PLCB-125BP-66-Way Plate C.B.55
20.5″ x 20.5″ Bolt Plate Misc
X-20.5-188BP-BEHBookend Hinge34
X-20.5-188BP-CPHCenter Pivot64
20.5″ x 20.5″ Bolt Plate Wedges
X-20.5WDG-125BP-11.2511.25 degrees27
X-20.5WDG-125BP-22.522.5 degrees29
X-20.5WDG-125BP-4545 degrees29
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
109765863439829322094
202872876215714381027
3012318551391927662
40661326994663473
5039993745497355

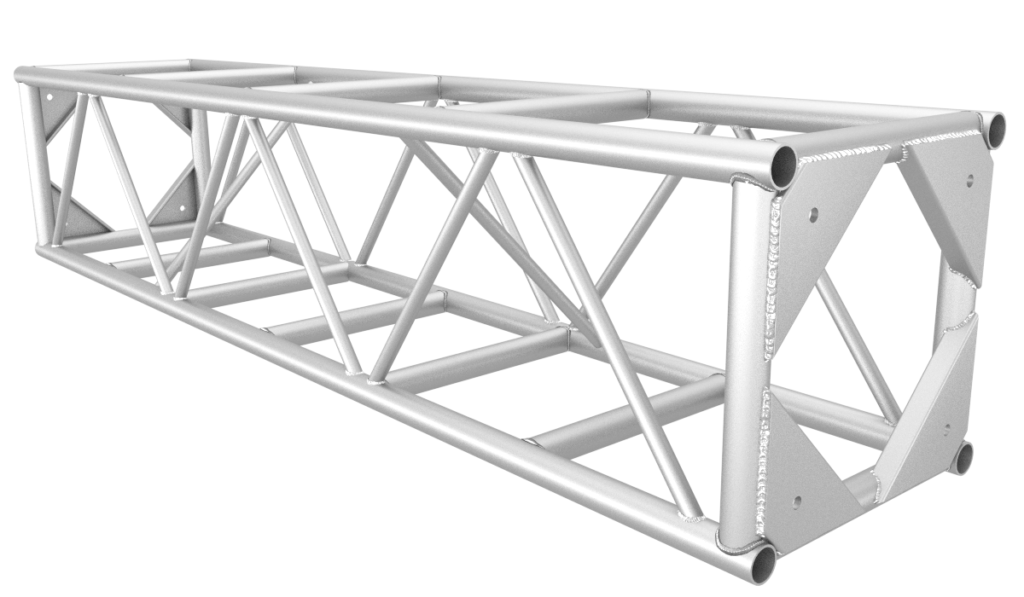

20.5x20.5-BoltPlate-Utility

20.5″ x 20.5″ Bolt Plate Utility Truss

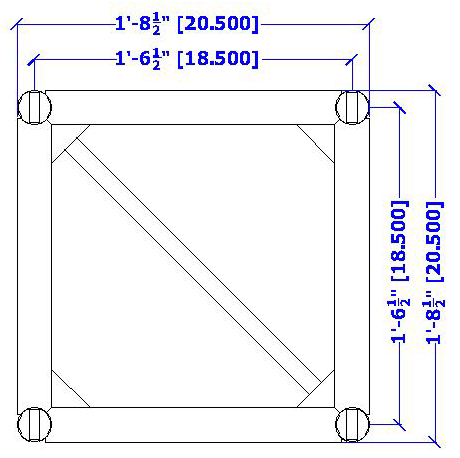

20.5″ x 20.5″ Aluminum Utility Truss with Steel Fork End Connections

20.5″x20.5″ Aluminum Utility Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-20.5U-188FE-12010′125
X-20.5U-188FE-968′113
X-20.5U-188FE-605′89
X-20.5CB-188FE-22-Way Corner Block
X-20.5CB-188FE-33-Way Corner Block
X-20.5CB-188FE-44-Way Corner Block
X-20.5CB-188FE-55-Way Corner Block
X-20.5CB-188FE-66-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
10118611864593239552966
205876642498133212372
302884326324521631545
401563138234015691121
507523651388995782
60381449851610479

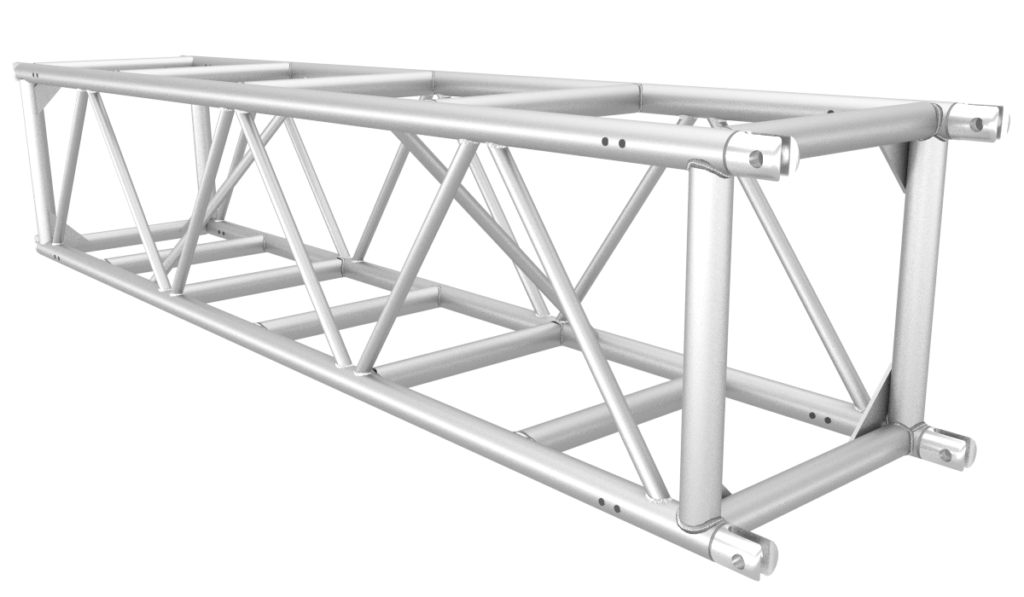

US Truss - 20.5x20.5-Steel-Forkend-Utility

US Truss – 20.5″ x 20.5″ Aluminum Utility Truss with Steel Fork End Connections

20.5″ x 20.5″ Aluminum Utility Truss with Aluminum Fork End Connections

20.5″x20.5″ Aluminum Utility Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-20.5MD-125AFE-12010′75
X-20.5MD-125AFE-1089′69
X-20.5MD-125AFE-968′66
X-20.5MD-125AFE-847′
X-20.5MD-125AFE-726′51
X-20.5MD-125AFE-605′47
X-20.5MD-125AFE-484′42
X-20.5MD-125AFE-363′34
X-20.5MD-125AFE-302.5′31
X-20.5MD-125AFE-242′29
20.5″ x 20.5″ Aluminum Fork End Corner Blocks
X-20.5CB-AFE22-Way C.B.
X-20.5CB-AFE33-Way C.B.
X-20.5CB-AFE44-Way C.B.
X-20.5CB-AFE55-Way C.B.
X-20.5CB-AFE66-Way C.B.
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1011898991594539642973
204434439332922201585
301932897217314481035
40105210715801054753
50531618975699549

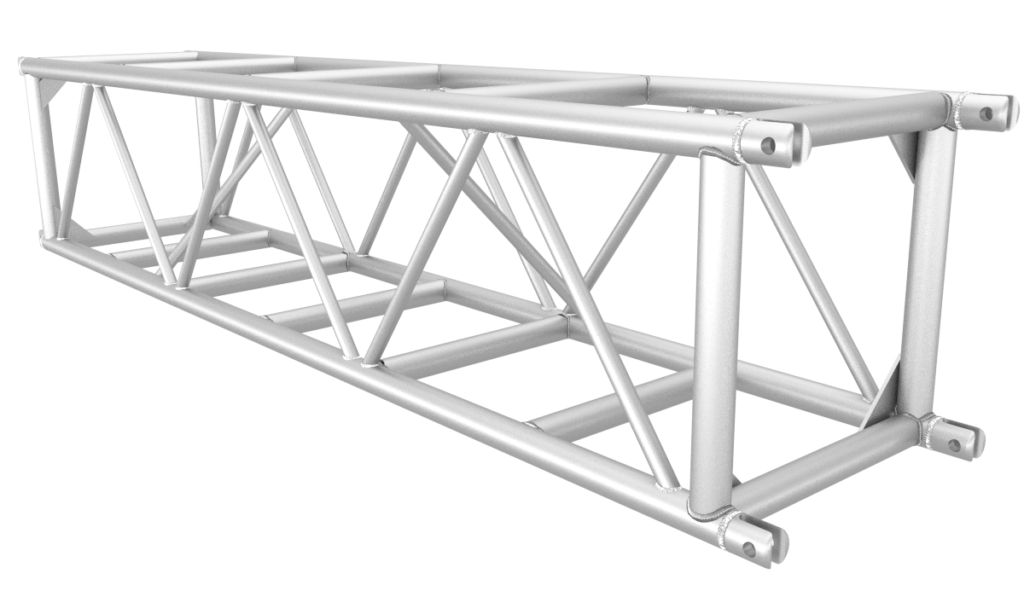

XSF - 20.5x20.5-Aluminum-Forkend-Utility

20.5″ x 20.5″ Aluminum Utility Truss with Aluminum Fork End Connections

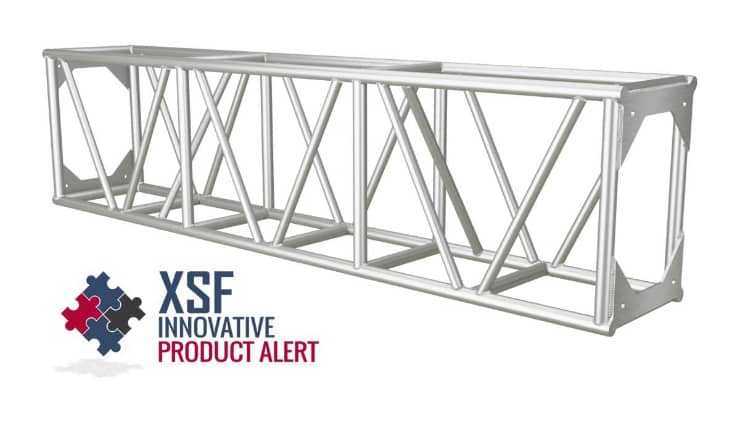

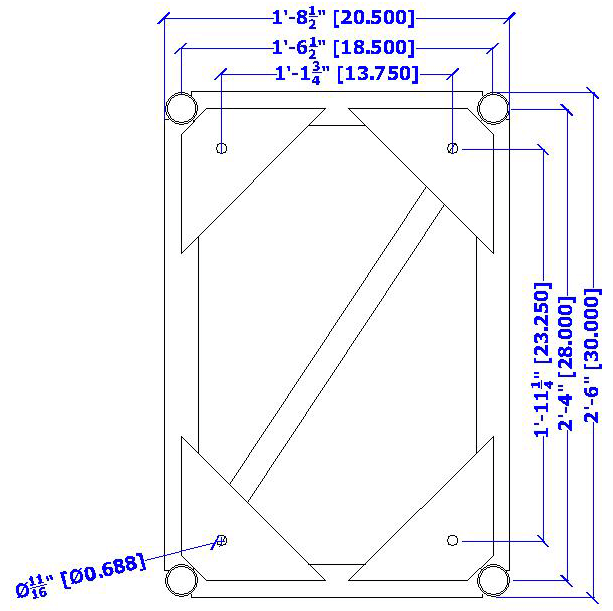

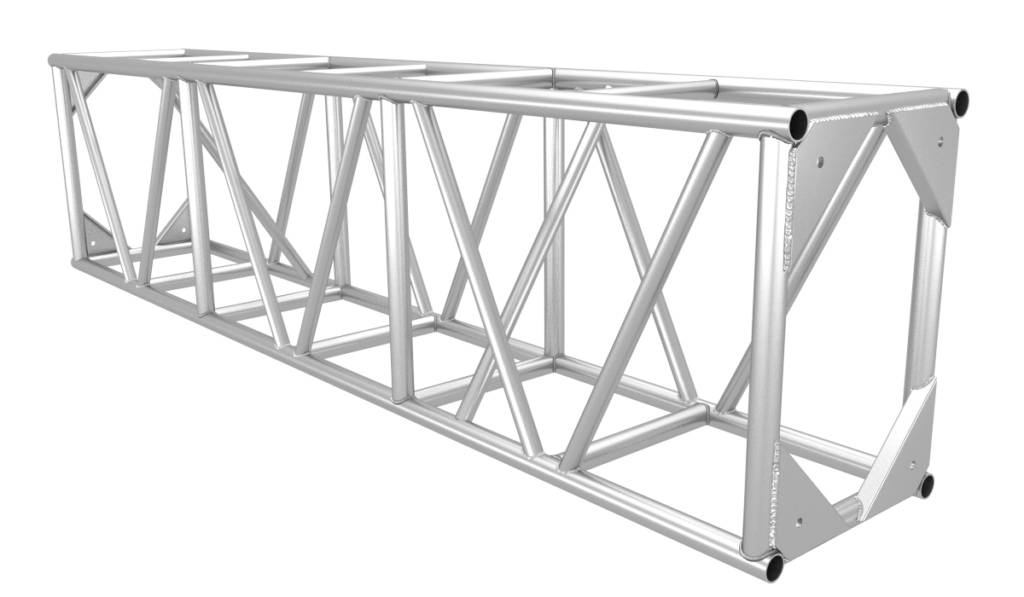

30″ x 20.5″ Protective Bolt Plate Utility Truss (patent pending)

30” X 20.5 PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-30X20.5U-125PBP-12010′70
X-30X20.5U-125PBP-968′60
X-30X20.5U-125PBP-605′44
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
102,01310,7848,0885,3924,493
205325,3243,9932,6622,218
302323,4742,6051,7371,447
401262,5261,8941,2631,052
50781,9391,454969808
60511,5331,149766639

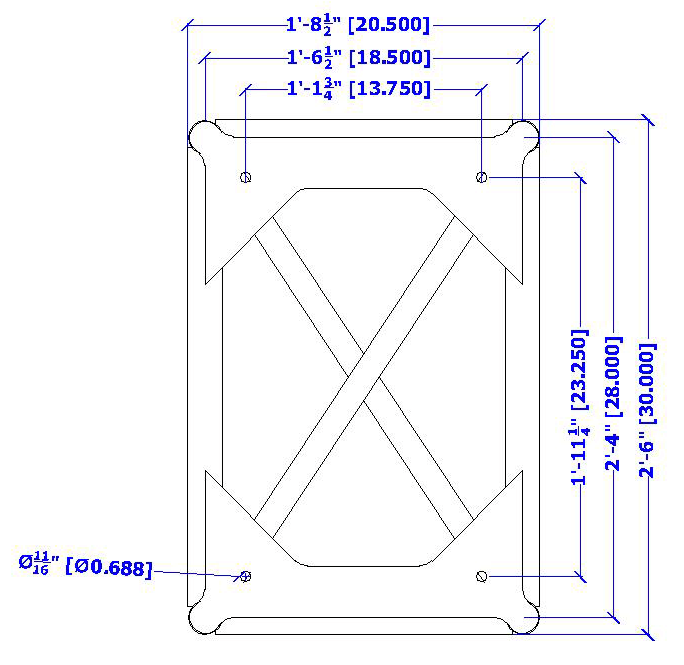

30″ x 20.5″ Plated Utility Truss

30″x20.5″ Utility Bolt Plate Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1.5″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-30X20.5U-125BP-12010′103
X-30X20.5U-125BP-968′95
X-30X20.5U-125BP-605′68
X-30X20.5CB-125BP-22-Way Corner Block
X-30X20.5CB-125BP-33-Way Corner Block
X-30X20.5CB-125BP-44-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1018659326699446633331
204594591344322951640
301982980223514901064
40107215116131076768
506516341226817584
60421274955637455
30x20.5-BoltPlate U S A Truss

30″ x 20.5″ Bolt Plate Truss

30″ x 20.5″ Aluminum Utility Truss with Steel Fork End Connections

30″x20.5″ Aluminum Utility Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/16″ thick with 1.5″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-30X20.5U-188FE-12010′ Truss148
X-30X20.5U-188FE-968′ Truss123
X-30X20.5U-188FE-605′ Truss95
X-30X20.5CB-188FE-22-Way Corner Block
X-30X20.5CB-188FE-33-Way Corner Block
X-30X20.5CB-188FE-44-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
10195617783978065204890
208798791659443963140
303835750431228752053
402094165314720981498
501293236242716181156
6080240918071205919
30

30″ x 20.5″ Aluminum Utility Truss with Steel Fork End Connections

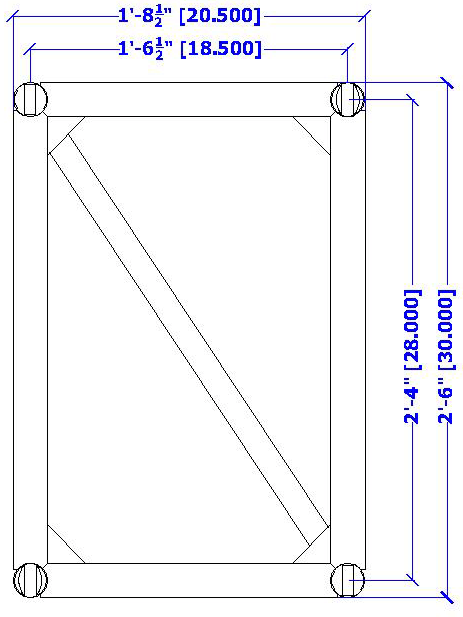

30″ x 20.5″ Aluminum Utility Truss with Aluminum Fork End Connections

30″x20.5″ Aluminum Utility Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1.5″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-30X20.5U-125AFE-12010′95
X-30X20.5U-125AFE-968′74
X-30X20.5U-125AFE-605′51
X-30X20.5CB-125AFE-22-Way Corner Block
X-30X20.5CB-125AFE-33-Way Corner Block
X-30X20.5CB-125AFE-44-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
102,01310,7848,0885,3924,493
205325,3243,9932,6622,218
302323,4742,6051,7371,447
401262,5261,8941,2631,052
50781,9391,454969808
60511,5331,149766639

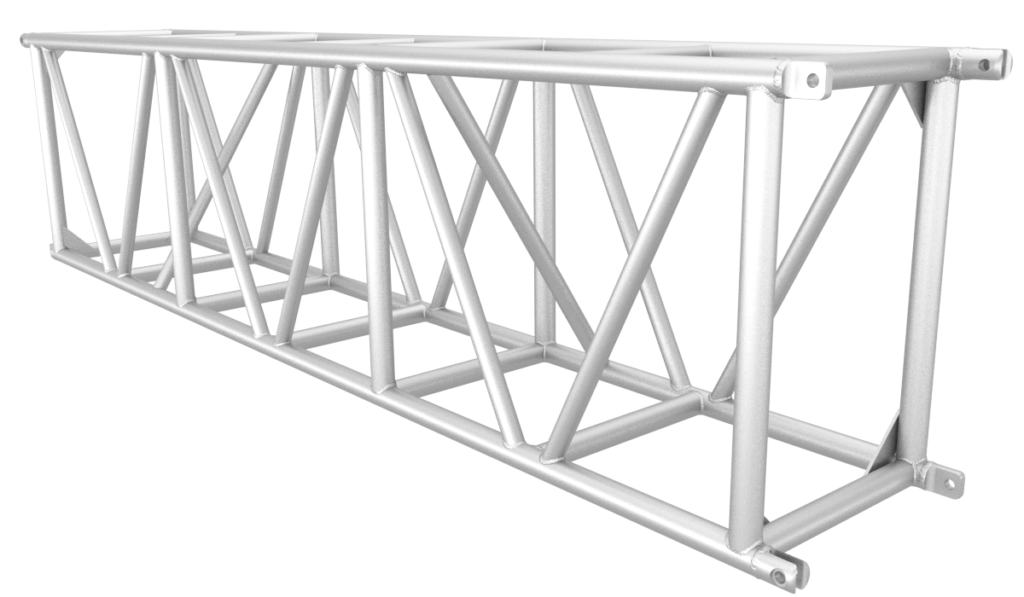

30x205_Aluminum_Forkend

30″ x 20.5″ Aluminum Utility Truss with Aluminum Fork End Connections

30″ x 20.5″ Heavy Duty Aluminum Utility Truss with Steel Fork Ends

30″x20.5″ Heavy Duty Aluminum Utility Truss with Steel Fork Ends comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/8″ thick with 1.5″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-30X20.5-375HDFE-12010′ Truss
X-30X20.5-375HDFE-968′ Truss
X-30X20.5-375HDFE-605′ Truss
X-30X20.5CB-375HDFE-22-Way Corner Block
X-30X20.5CB-375HDFE-33-Way Corner Block
X-30X20.5CB-375HDFE-44-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1035613259417806118718903
201615161541211680775769
3070710611795853063790
403897792584438962783
502426062454730312165
601484463334722321742
30x205_HeavyDuty_Steel_Forkend

30″ x 20.5″ Heavy Duty Aluminum Utility Truss with Steel Fork Ends

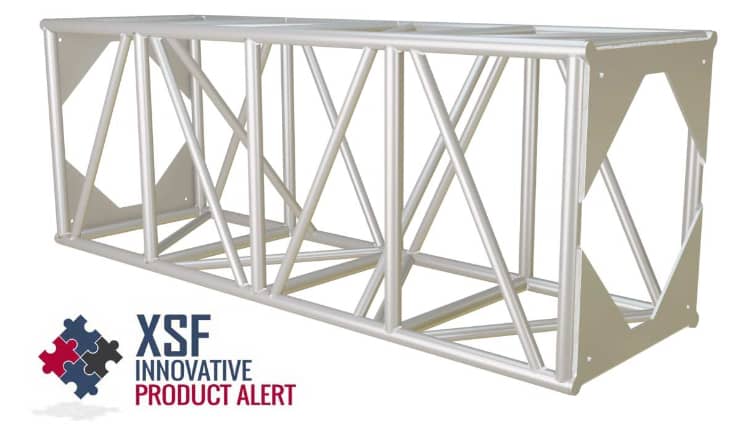

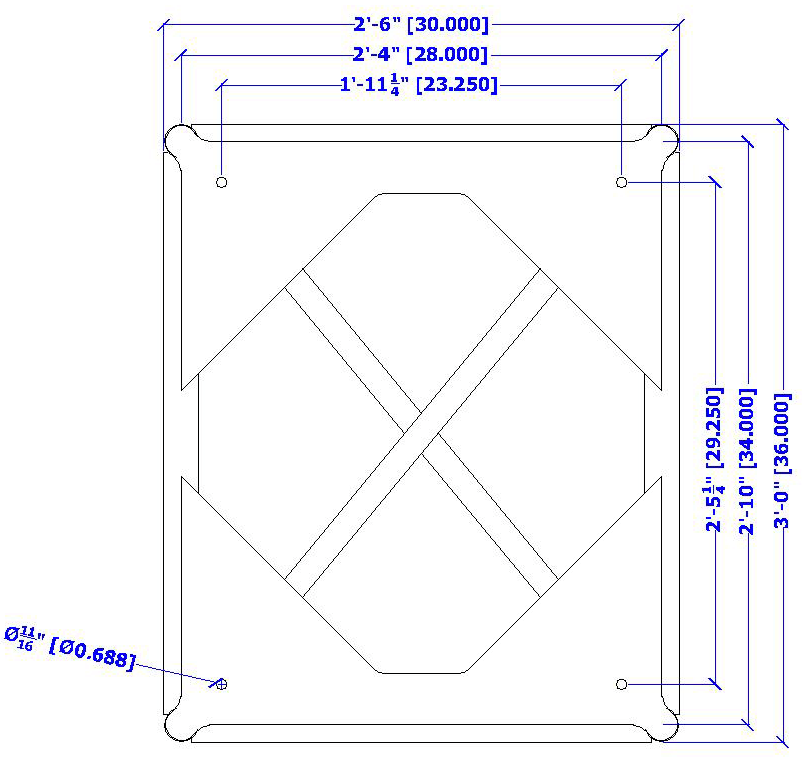

36″ x 30″ Protective Bolt Plate Utility Truss (patent pending)

36” X 30 PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-36X30U-125PBP-12010′70
X-36X30U-125PBP-968′60
X-36X30U-125PBP-605′44
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
101,61213,0708,0605,3734,030
206426,4164,8123,2082,673
302764,1453,1092,0731,727
401492,9702,2281,4851,238
50892,2331,6751117931
60571,7161,287858715

36″ x 30″ Heavy Duty Aluminum Utility Truss with Steel Fork Ends

36″x 30″ Heavy Duty Aluminum Utility Truss with Steel Fork Ends comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/8″ thick with 1.5″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-36X30-375HDFE-12010′ Truss
X-36X30-375HDFE-968′ Truss
X-36X30-375HDFE-605′ Truss
X-36X30CB-375HDFE-22-Way Corner Block
X-36X30CB-375HDFE-33-Way Corner Block
X-36X30CB-375HDFE-44-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
10.51921201741008767255044
21.095019630998466564992
31.562712906921962964544
42.04309037677845193228
52.52737111528335392533
63.01865772426028632052
73.51324774350723621695

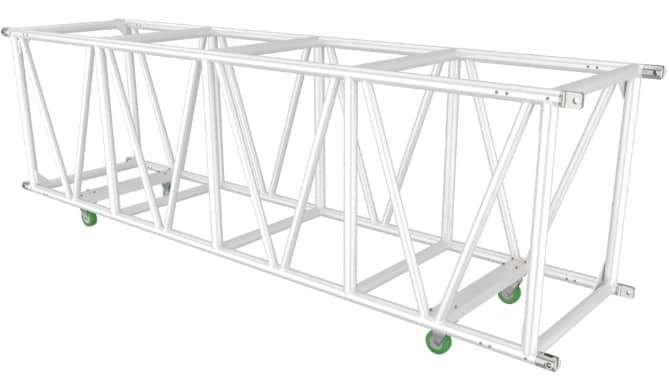

36″ x 36″ Heavy Duty Fork Ended Truss

36″ x 30″ Heavy Duty Aluminum Utility Truss with Steel Fork Ends

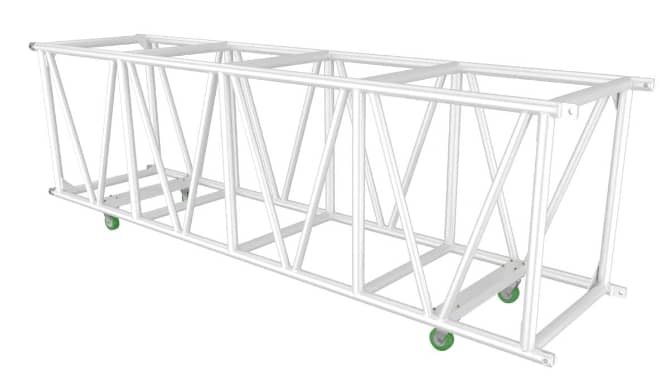

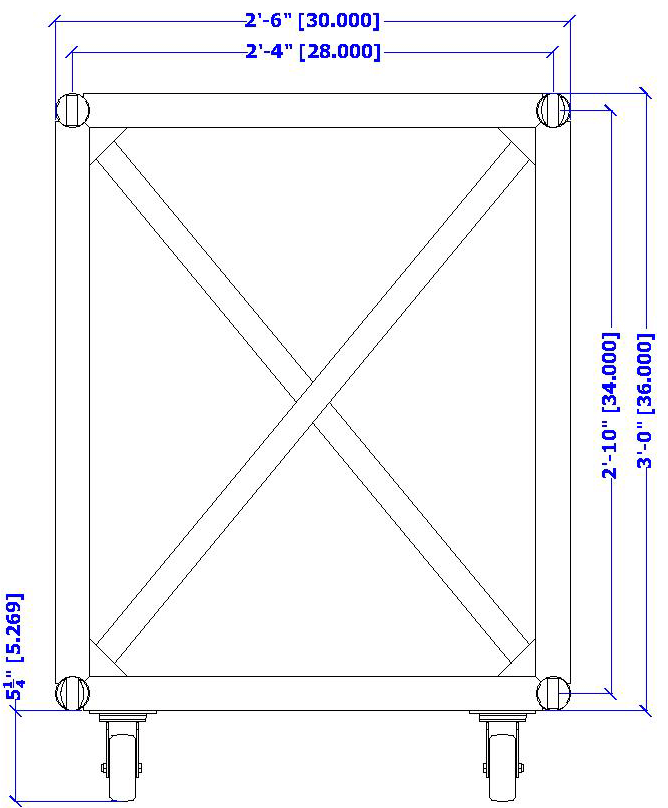

36″ x 30 Aluminum Utility Truss with Aluminum Fork End Connections

36″x 30″ Aluminum Utility Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1.5″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-36X30U-125AFE-12010′
X-36X30U-125AFE-968′
X-36X30U-125AFE-605′
X-36X30CB-125AFE-22-Way Corner Block
X-36X30CB-125AFE-33-Way Corner Block
X-36X30CB-125AFE-44-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
101,61213,0708,0605,3734,030
206426,4164,8123,2082,673
302764,1453,1092,0731,727
401492,9702,2281,4851,238
50892,2331,6751117931
60571,7161,287858715

36 X 30 Aluminum Fork End Truss

36″ x 30″ Aluminum Utility Truss with Aluminum Fork End Connections

*All Product Specifications found on this website should be verified by an XSF Truss Sales Professional.
