What is the strongest Moving Light Truss on the Market today?

The XSF MAV Truss. Take a look at the engineer certified Load Tables below and see for yourself.  Along with the many other features listed below the XSF MAV (Moving Lights, Automation, and Video Production) Truss is highly “customer-friendly”.

If you’re looking for long span, easy to use,  cost-saving benefits look at MAV. We encourage you to explore your options then call us for more information on this innovative product from XSF Truss.

Innovation Alert-Connex

  • Easy to Use
  • Mates with other industry-standard 14” x 24” truss
  • Optional Connex steel fork end connection available
  • Heavy Duty square tube legs that can take a beating
  • Continuous Open Bottom Face standard
  • Cost Saving Benefits

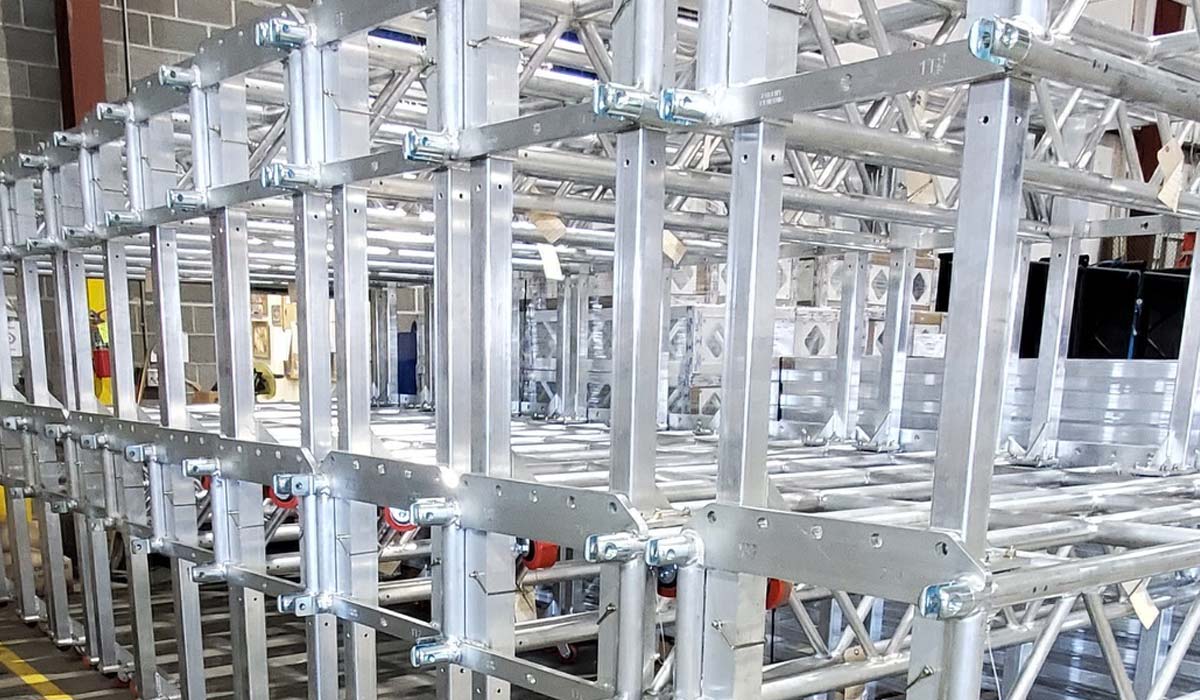

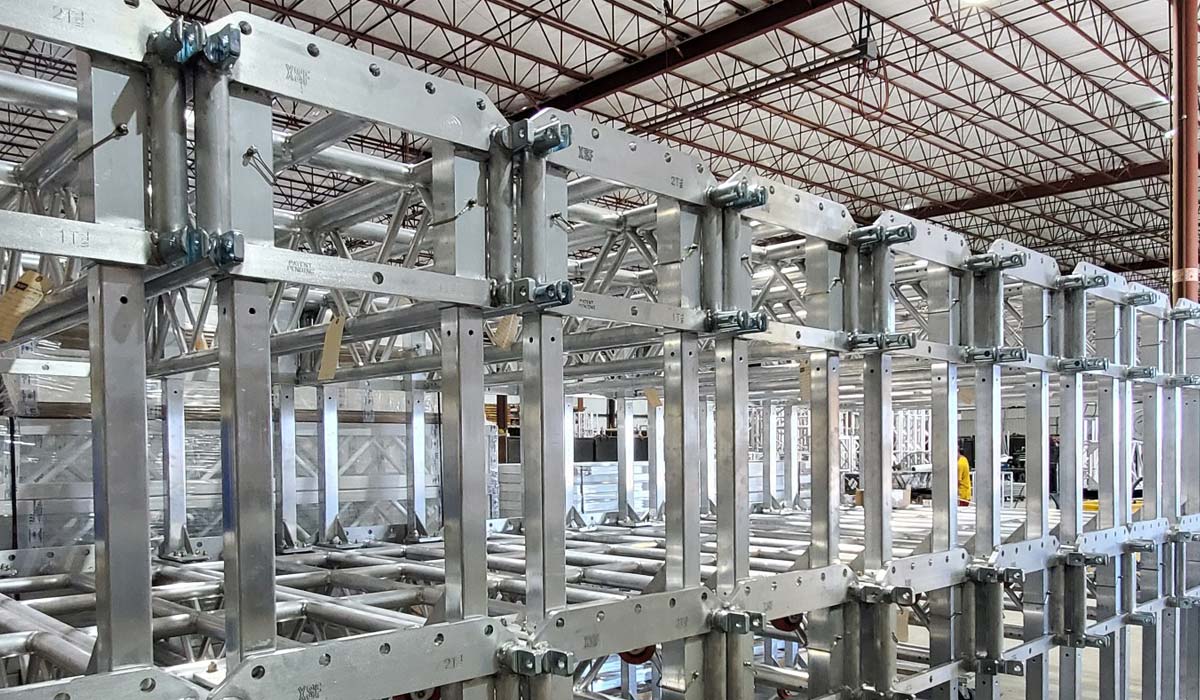

MAV images

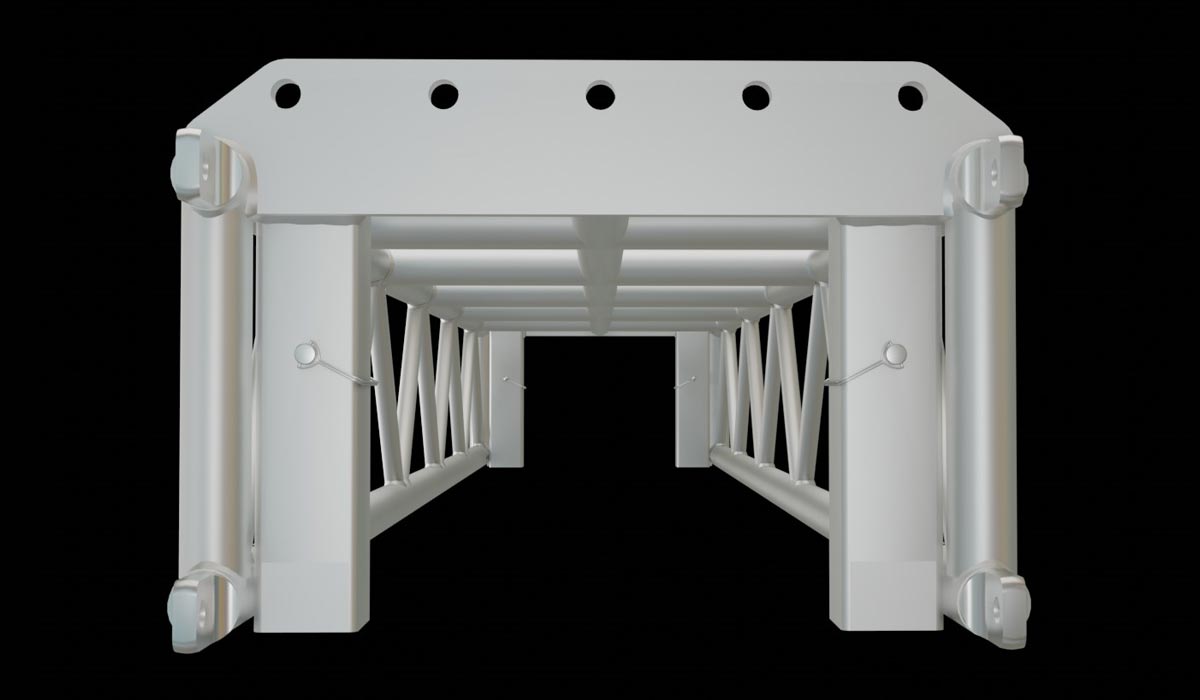

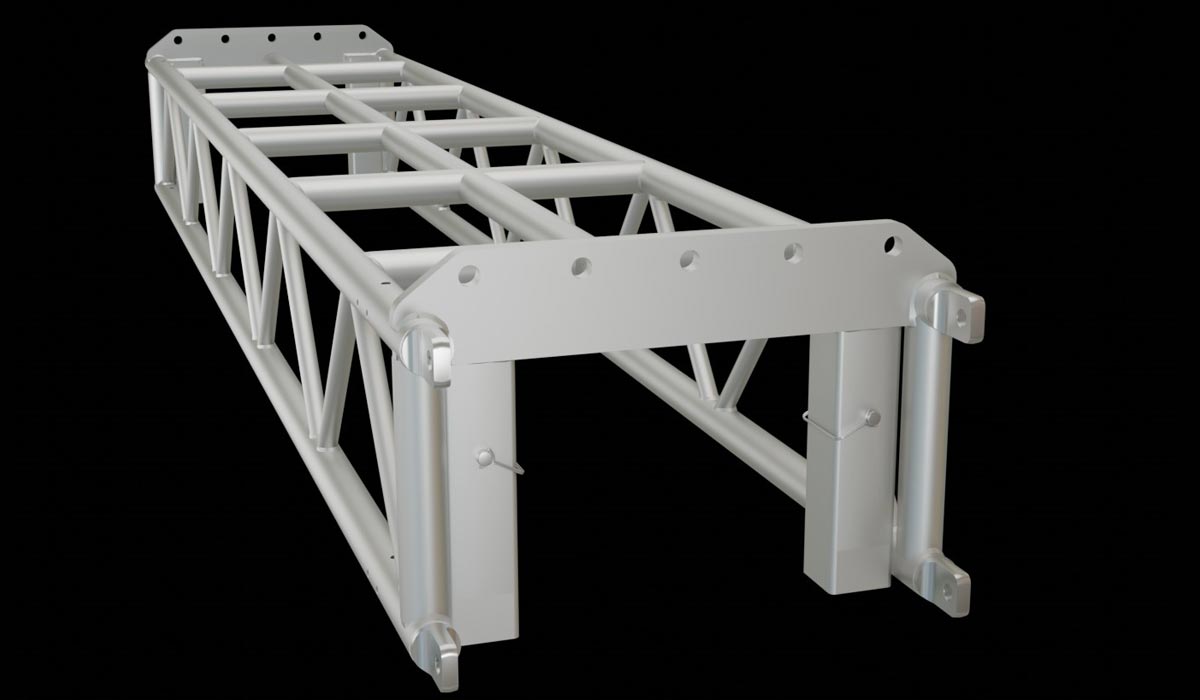

14″ x 24″ Moving Light, Automation and Video Wall (MAV) Truss

14″ x 24″ Moving Light, Automation and Video Wall (MAV) Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT W O/Legs (lbs)WEIGHT W/Legs (lbs)
X-14X24-375FE-12010′190242
X-14X24-375FE-968′172224
X-14X24-375FE-605′135187
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
101.0359.3495,1773,4512,589
204554.5523,4142,2761,897
301932.8991,4501,4501,208
401022.0321,5241,016847
50591,4791,109739616
60361,083812541451

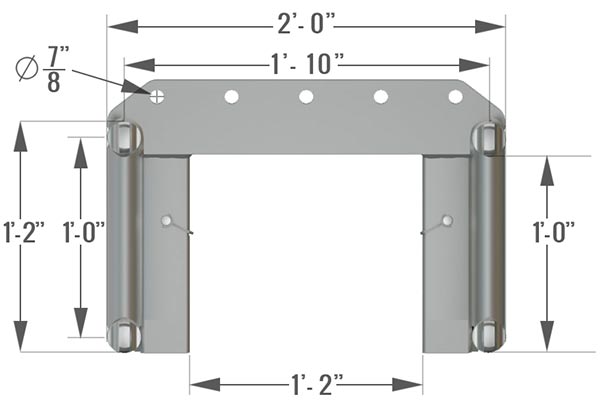

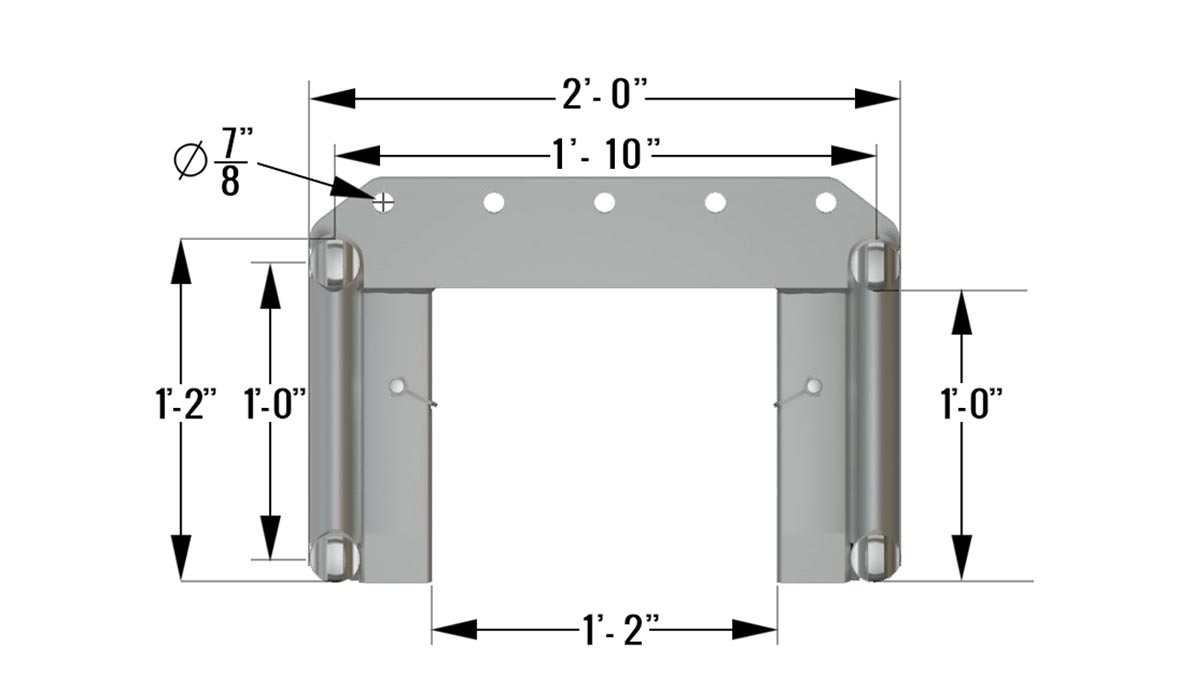

MAV DImensions

14″ x 24″ Moving Light, Automation and Video Wall (MAV) Truss

comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The Many Features of the XSF MAV Truss

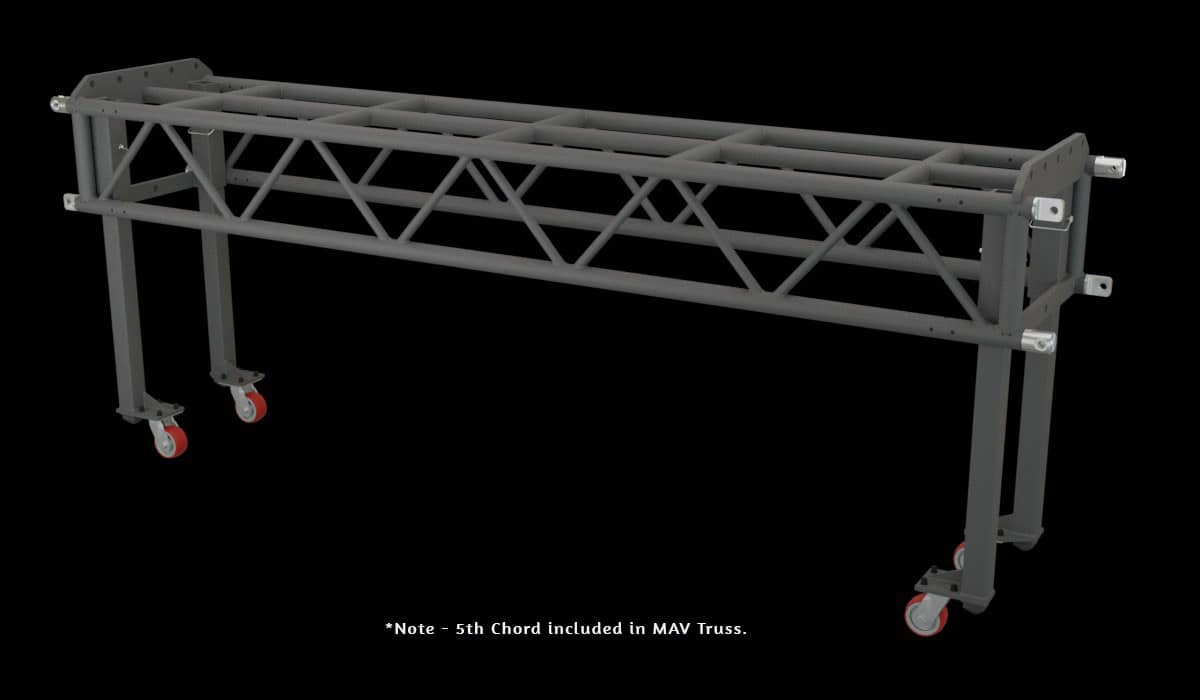

  • All MAV Truss include a 5th Chord (XSF also offer box truss with 5th Chord. ( Learn more about the 5th Truss Chord )
  • Mates with other industry standard 14” x 24” truss
  • Optional Connex steel fork end connection available
  • 35 plf Load Rating on a 60’ span
  • Rig Points welded directly into the truss

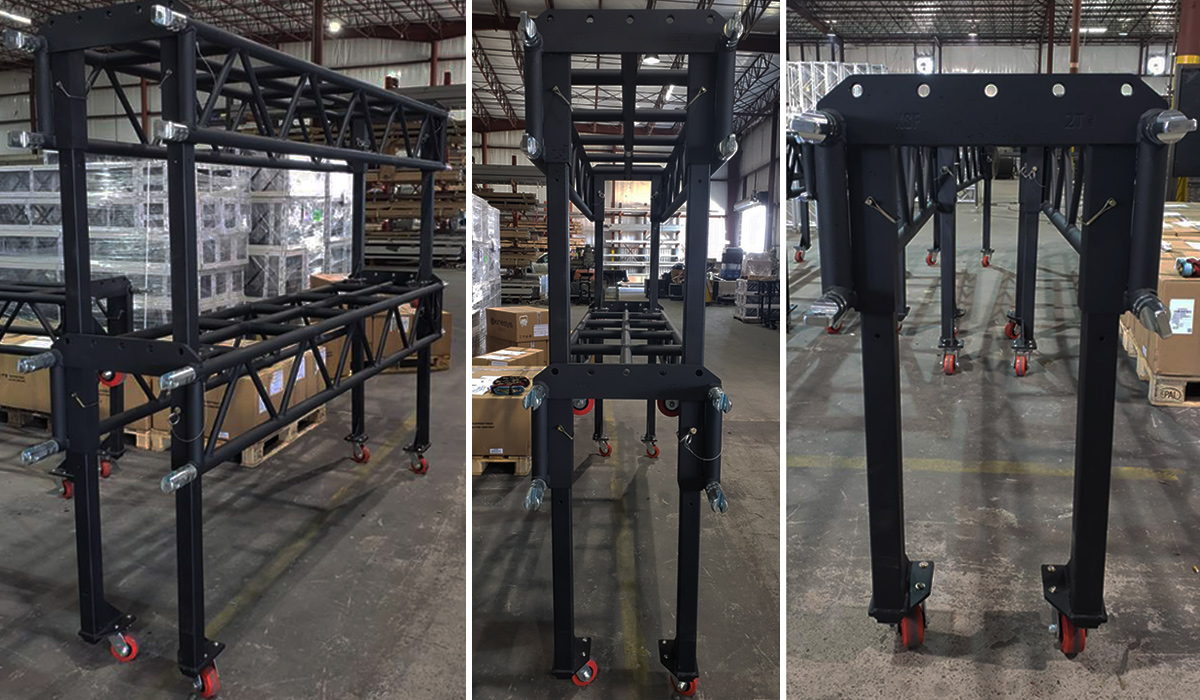

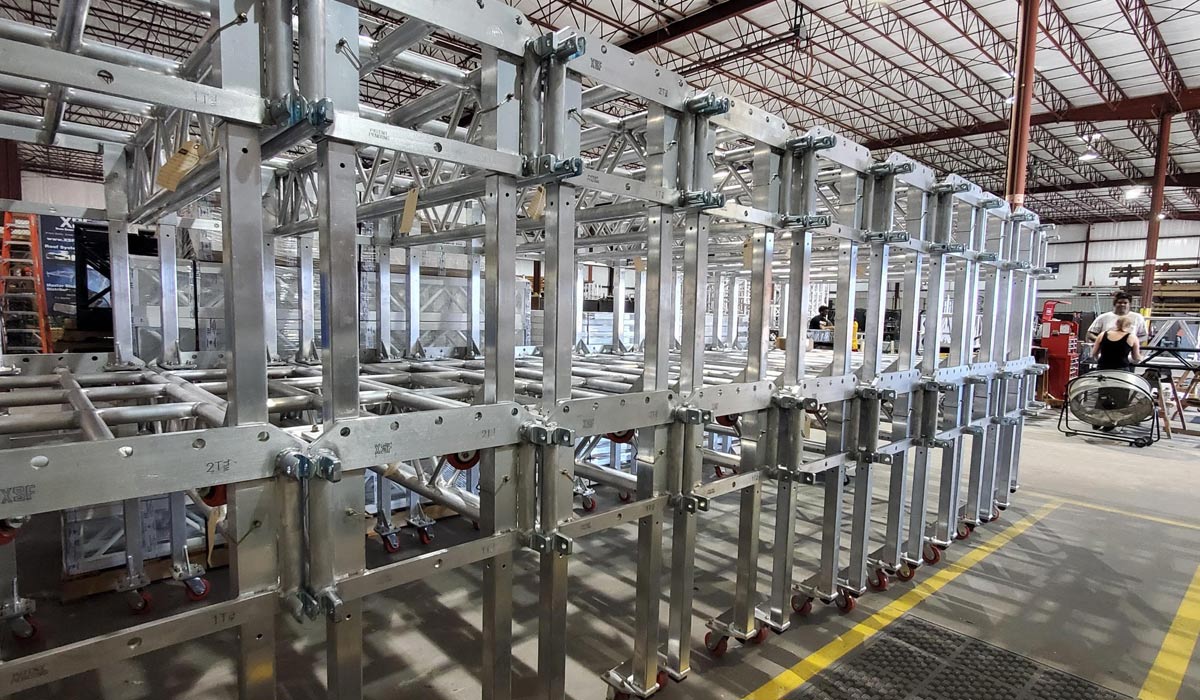

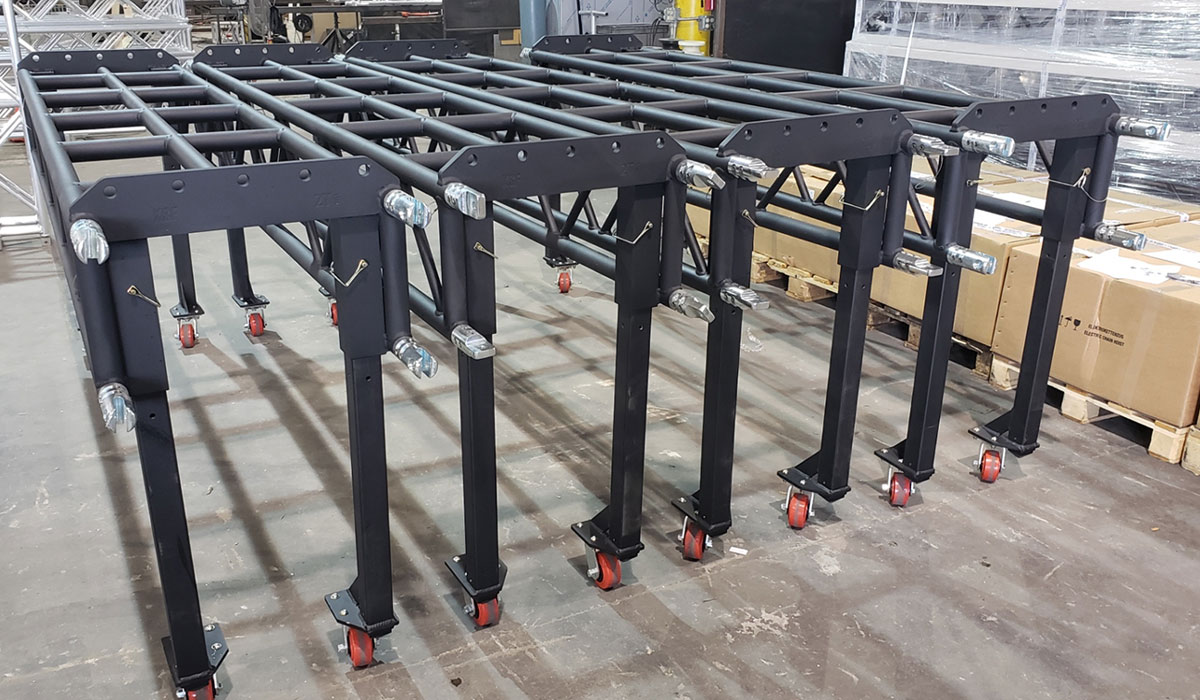

  • Heavy Duty square tube legs that can take a beating

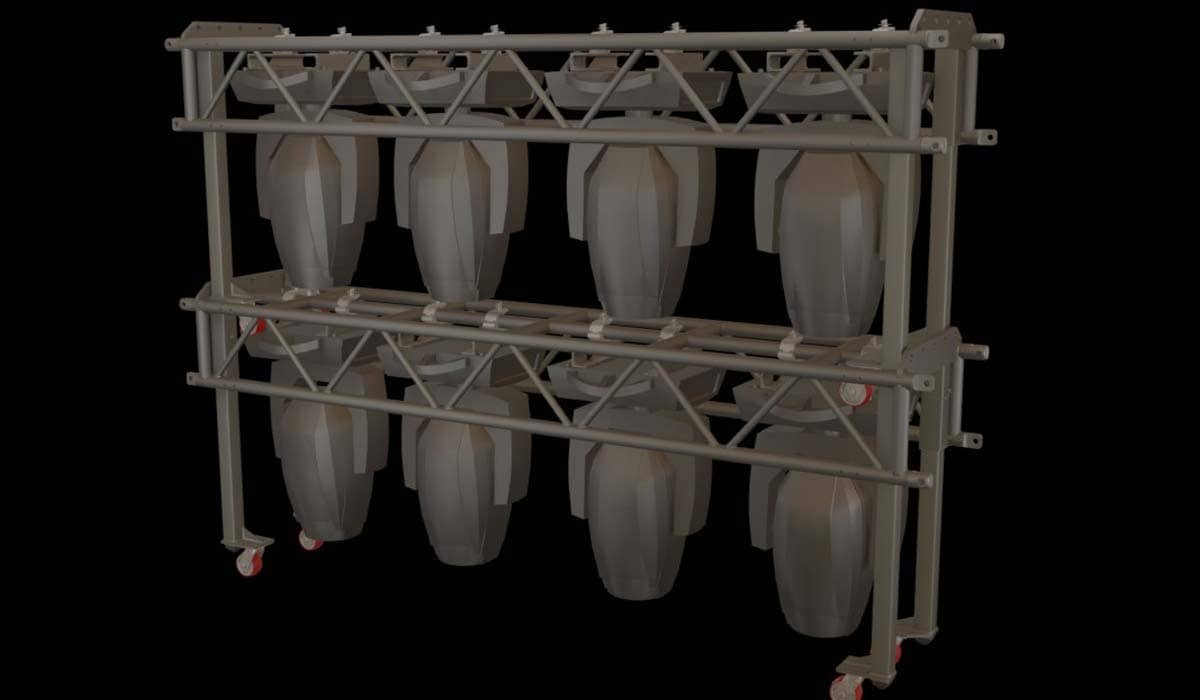

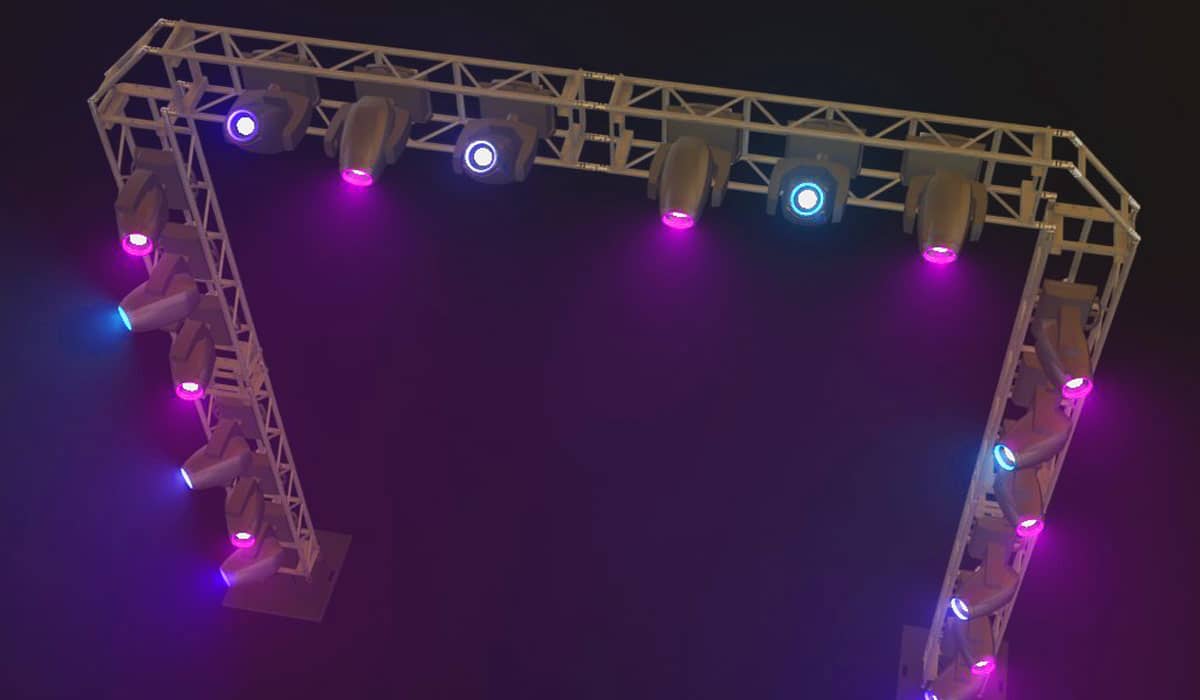

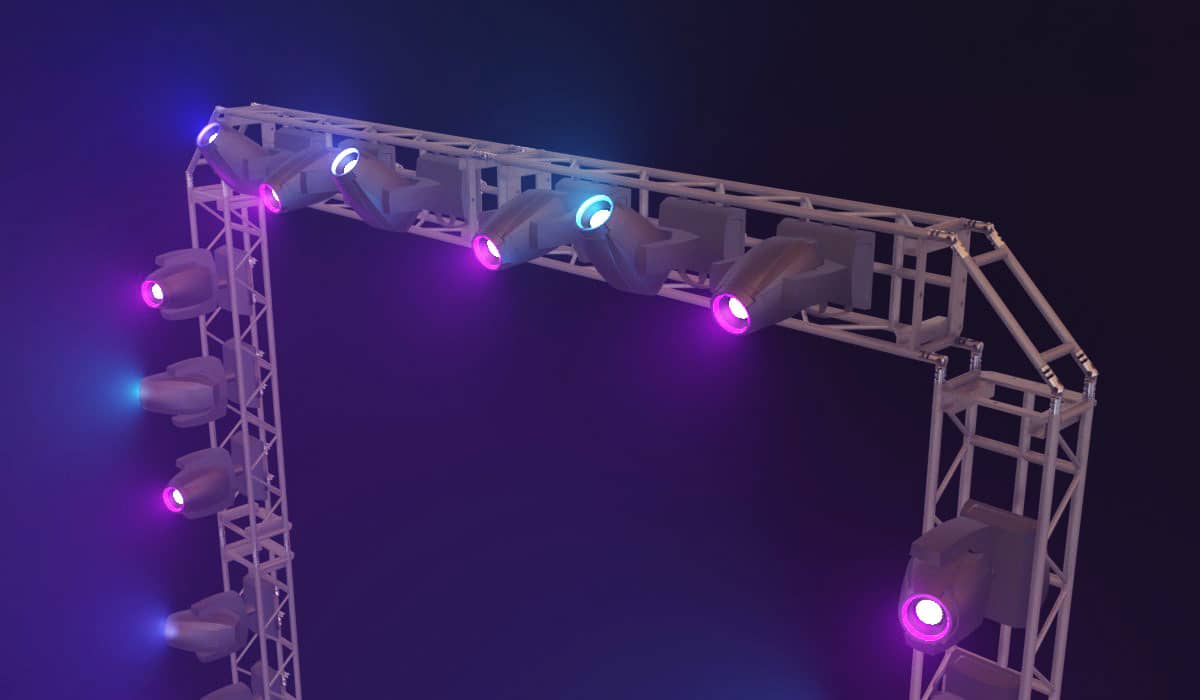

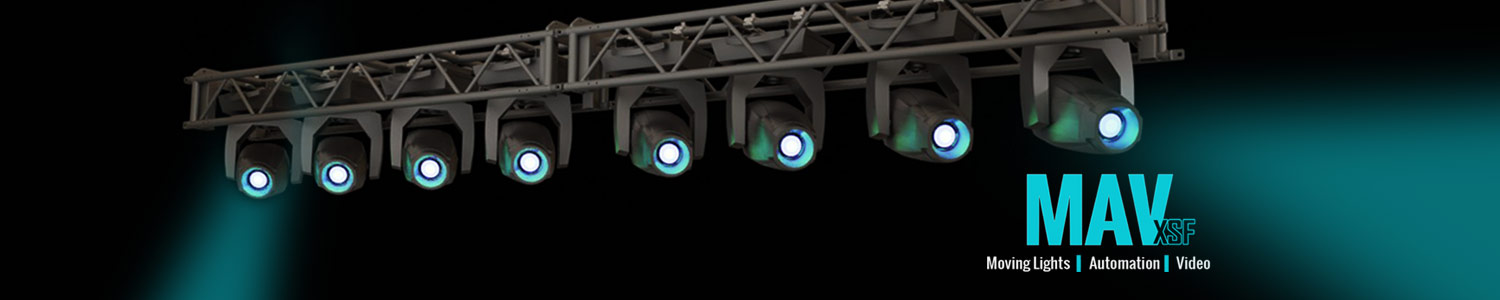

  • Stores Moving Lights away during travel

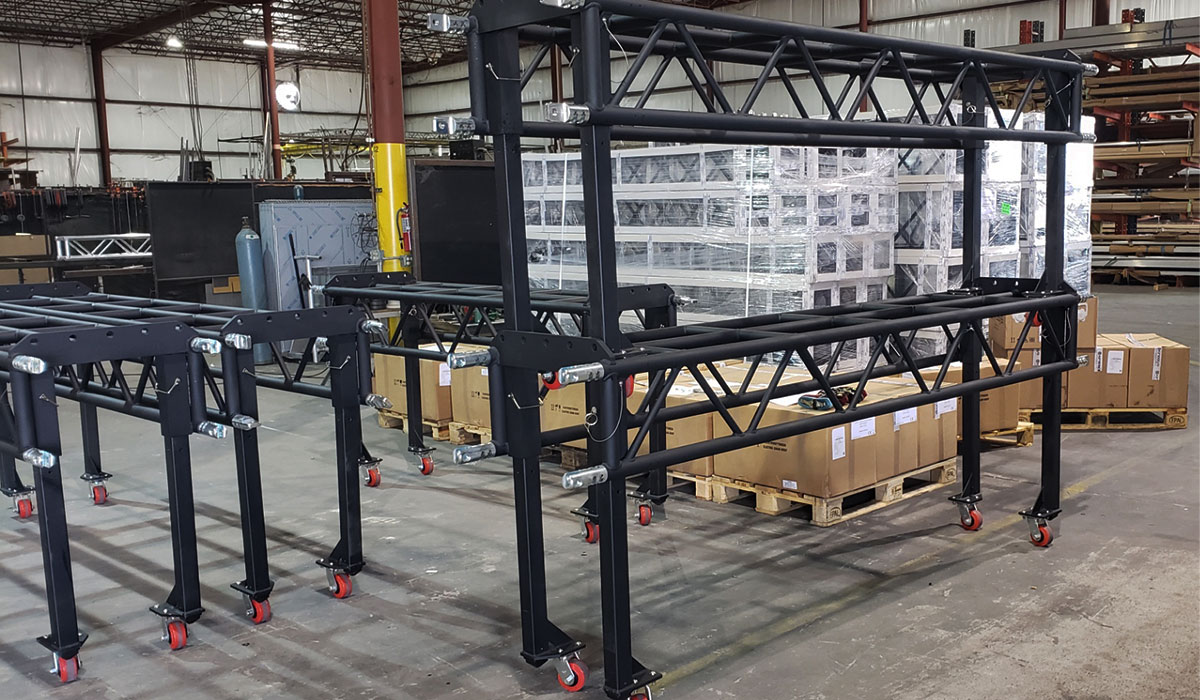

  • Easily adaptable to Automation truss with a clamp on I-Beam trolley track
  • Continuous Open Bottom Face Standard

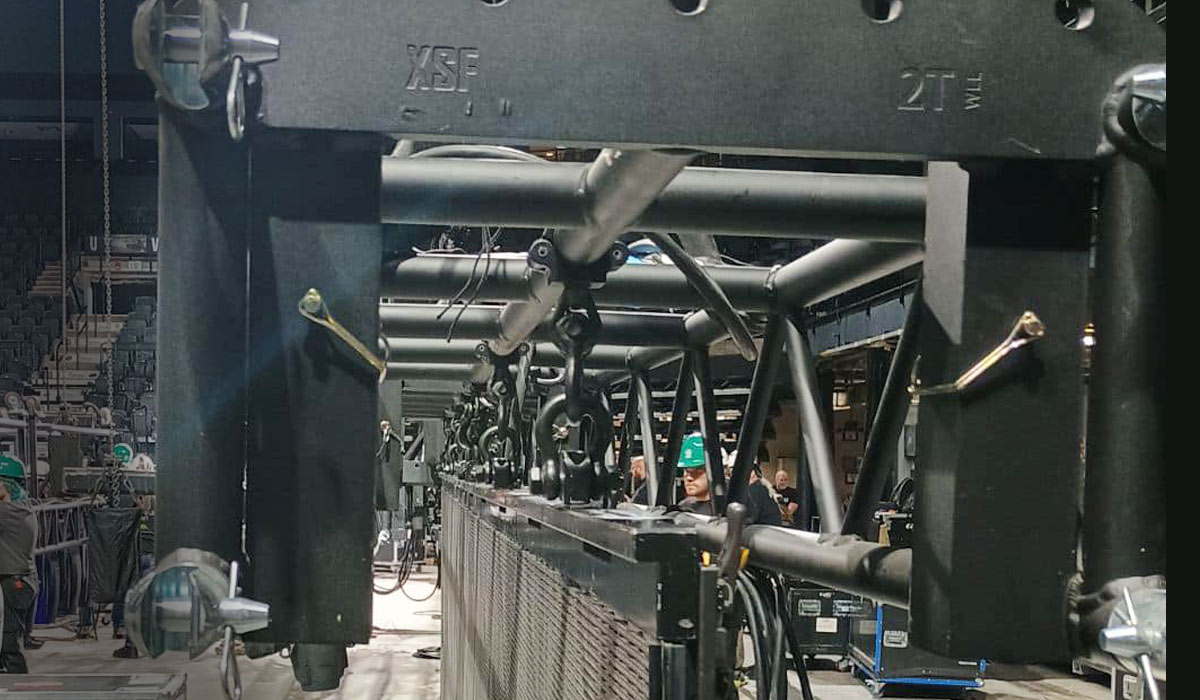

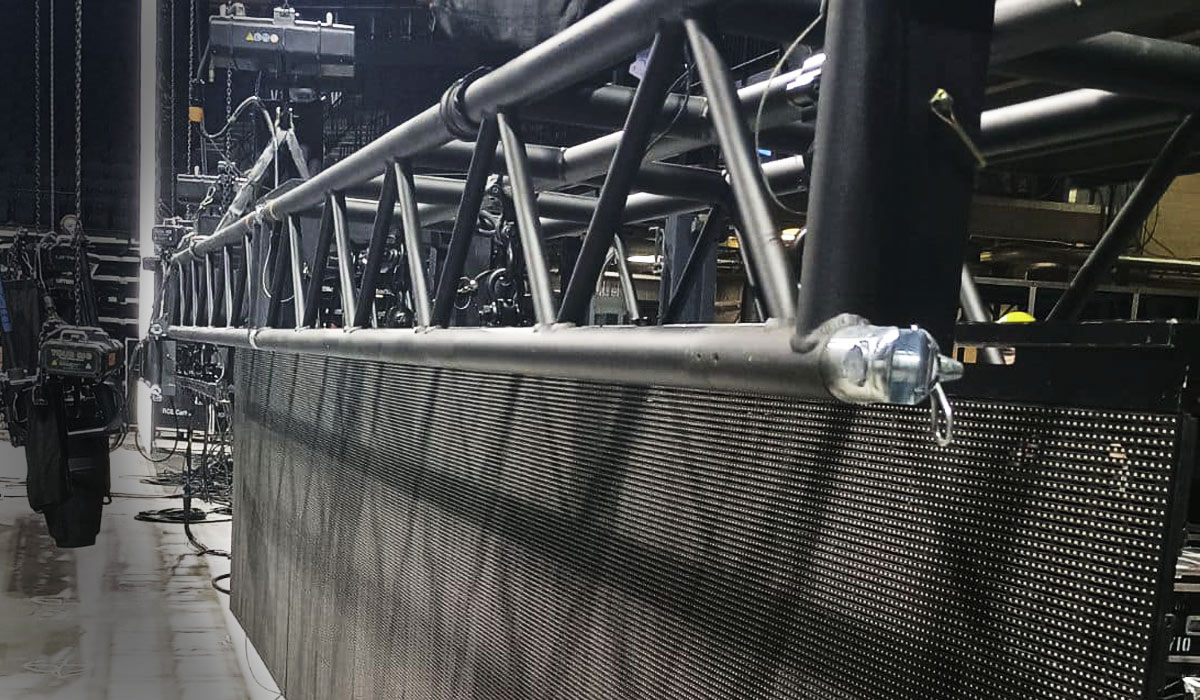

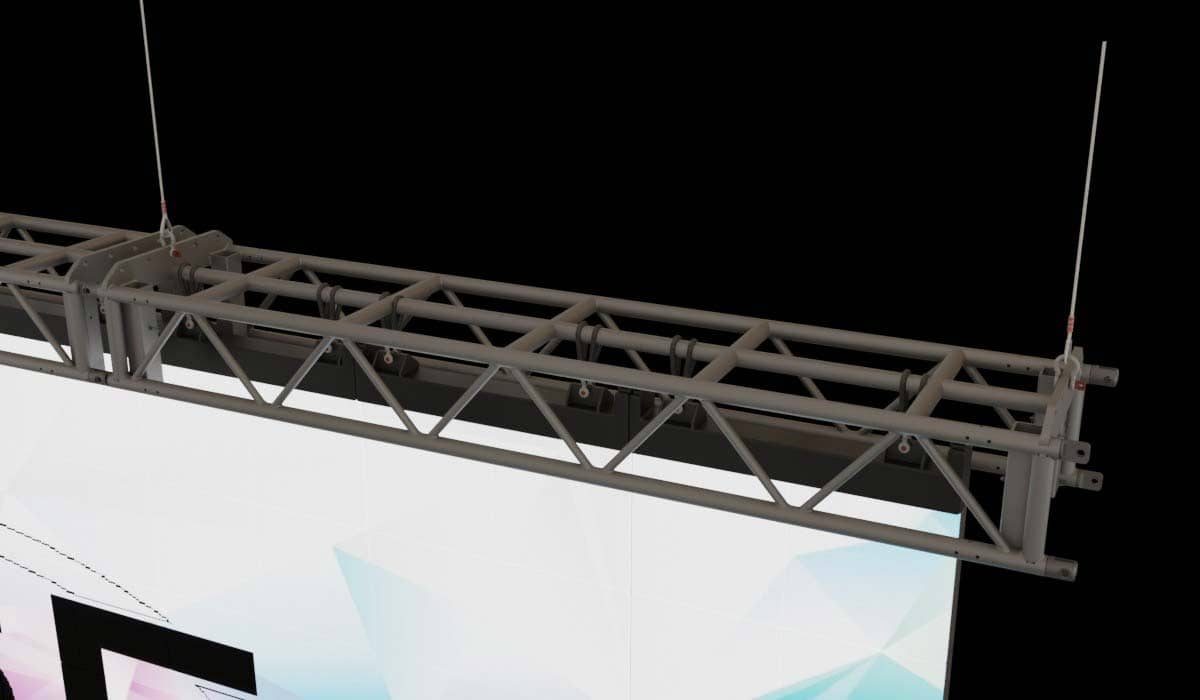

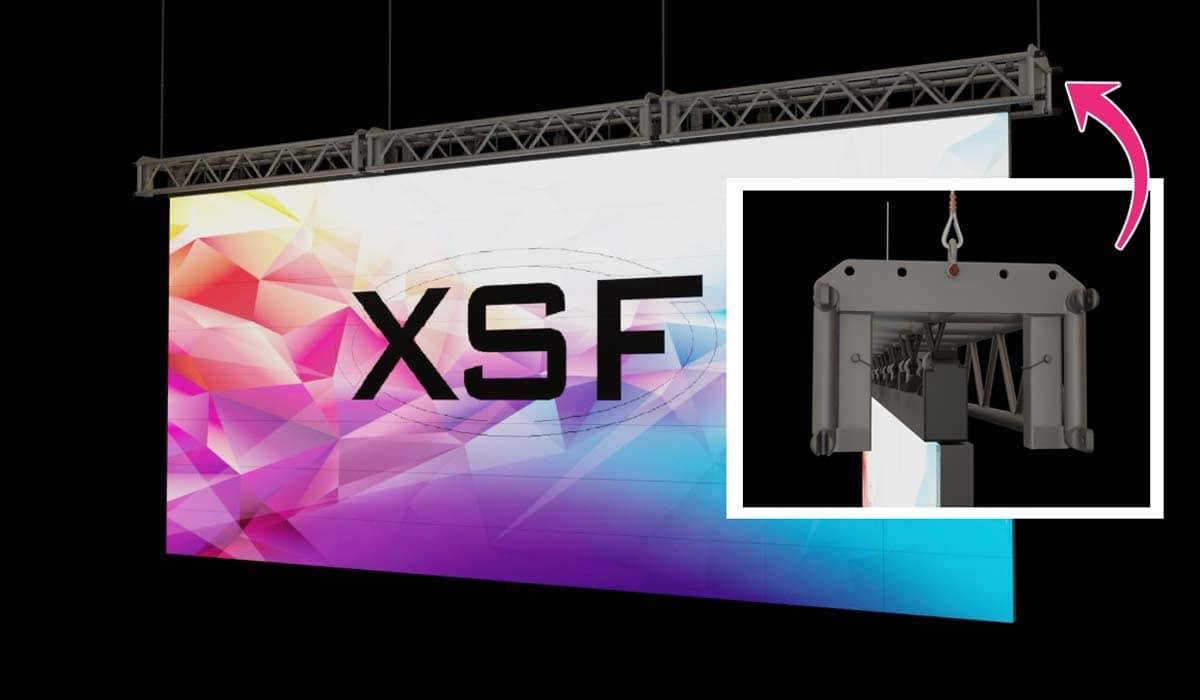

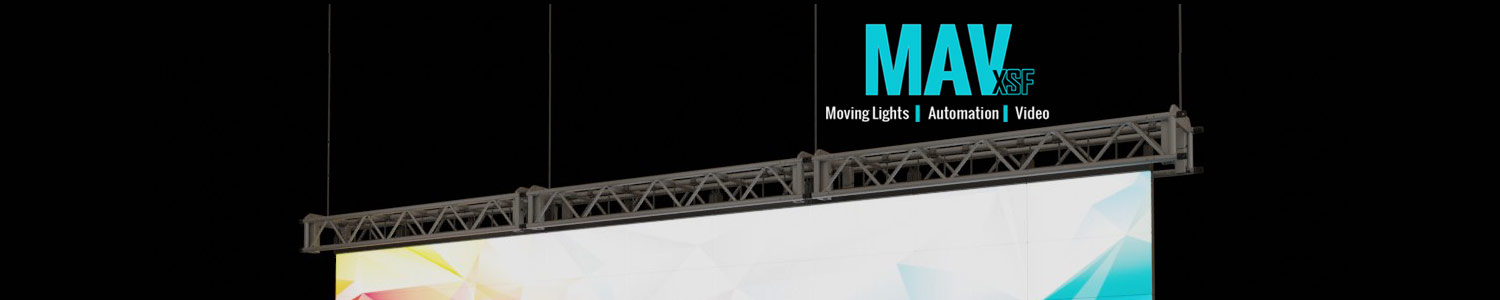

  • Large video walls can be rigged up inside the truss for maximum trim height
  • Heavy Duty 2” x 3/8” chords provide road worthy durability and high load ratings

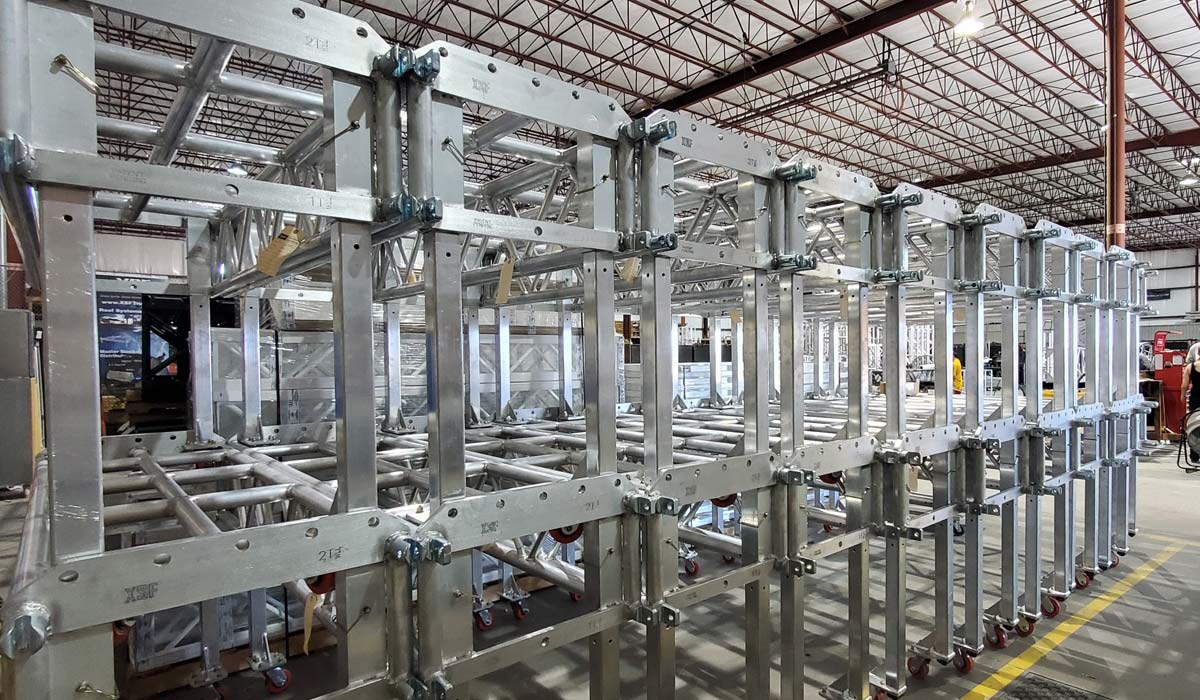

  • Legs may be stowed inverted in the top face of the truss

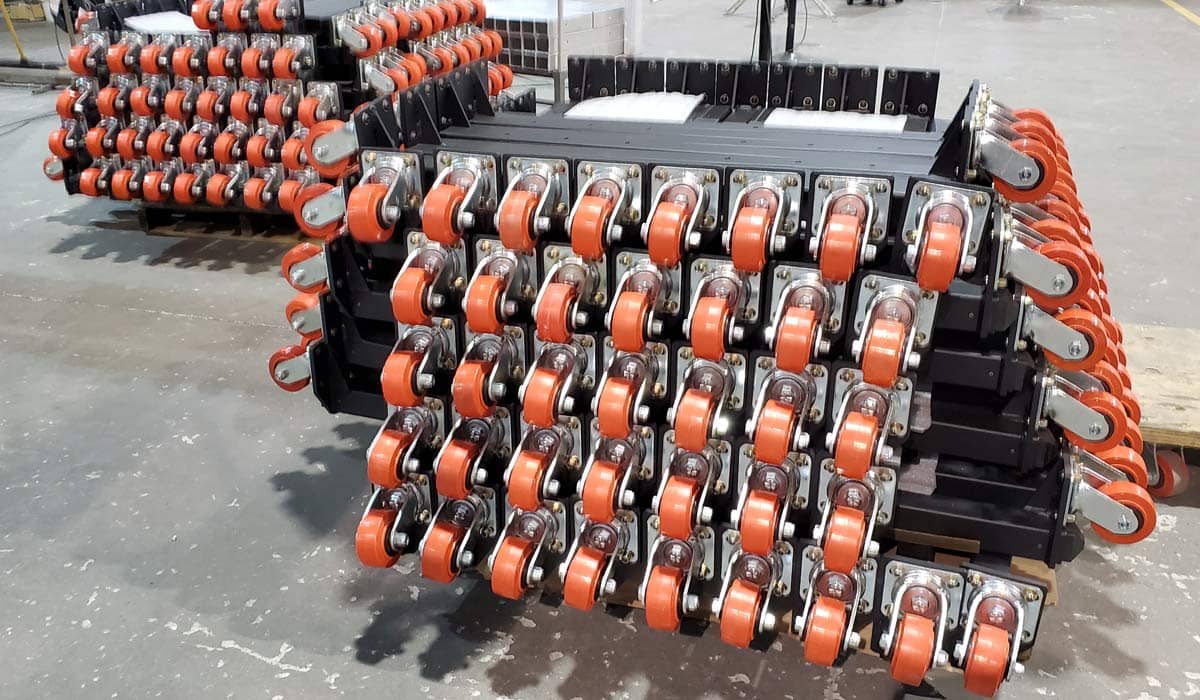

  • Legs may be rotated 90 degrees to allow for a wider, more stable footprint while in transit
  • Weld-in lower Rig Points and/ or horizontals available upon request

MAV Truss Accessories

MAV Truss can work well in all settings and environments in any application.  Watch the MAV Accessories video to see the many options available for Gates and Wedges. Need something more custom? We would love to hear your idea.

PART NUMBERWEIGHT
X-14X24-375FE-2WAY-GATE2-Way Gate32
X-14X24-375FE-3WAY-GATE3-Way Gate29
X-14X24-375FE-WDG-GATEWedge Gate29 (max)
X-14X24-375FE-LEGSpare Leg13

NOTE: The XSF MAV truss is not intended for use as a catwalk and is not convertible into a catwalk truss.

For examples of our catwalk truss please visit https://www.xsftruss.com/aluminum-catwalks/
