LODESTAR® ELECTRIC CHAIN MOTOR

Legendary in performance, professional riggers around the world have come to rely on the CM Lodestar® for the most demanding and challenging applications. Now, this iconic hoist is available as an economical 2-ton single-reeved unit that’s ideal for a variety of lifting applications. And, because it’s a single reeved unit, overall weight is decreased making it easier to transport and rig compared to a traditional double-reeved unit

Weight Capacity

CMET Entertainment Technology | XSFTRUSS

Columbus McKinnon Entertainment Technology (CM-ET) is the entertainment industry leader in providing quality lifting and positioning equipment for riggers around the globe.

FEATURES & BENEFITS

IP66 RATING
An Ingress Protection (IP) Rating of 66 indicates that the Lodestar Classic offers protection from dust and high-pressure water – making this unit ideal for use in outdoor environments.

HIGH-PERFORMANCE COMPOSITE CORD GRIPS

Prevent water from entering the motor body
at the pendant and power cord points of entry.

CONTINUOUS GASKETS

Create a waterproof seal between the gearbox assembly and the back frame and motor covers.

O-RINGS ON LIFT WHEEL BEARING

Prevent water from entering the motor
body through the lift wheel opening.

EASY TO TRANSPORT & RIG
With less chain than double-reeved units, the 2-ton, single-reeved Lodestar is lighter, making it easier to transport and rig.

ZINC PLATED LOAD CHAIN
Designed and manufactured in the USA by Columbus McKinnon, the 10 millimeter, zinc-plated Star Grade load chain protects against corrosion.

IMPROVED CHAIN LIFE
5-pocket lift wheel provides better chain and lift wheel engagement for smoother lifting and reduced vibration, equating to less wear and a longer chain life.

LESS MAINTENANCE & EASIER INSPECTION

Brake location allows for quick access and easy inspection.

Lifetime grease-lubricated gear box means no oil change is required.

Clutch located outside the gear box allows for easy access, which eliminates the need for complete disassembly and reduces downtime.

IMPROVED SERVICEABILITY
Easy access to the clutch, motor, electrical control panel and brake assembly.

METRIC RATED EASY-ACCESS CONTROL PANEL
Finger-safe wiring and plug-and-play connectors on the control panel allow for quick voltage change, easy access to terminal strips and simple fuse installation.

LONGER SERVICE LIFE

Heavy-duty DC brake is designed for a long service life.

Lifetime grease-lubricated gear box and helical gearing ensures better wear and smooth operation.
Heavy-duty-rated motors.

IMPROVED LOAD SAFETY
Clutch is located outside the load path, preventing slipping of the load in an overload condition when the brake is not powered.

ADJUSTABLE LIMIT SWITCH
Easy-to-adjust screw limit switch automatically stops the hook at any predetermined point when either lifting or lowering, preventing overtravel.

OVERLOAD PROTECTOR
Helps prevent lifting of dangerous overloads.

STANDARD ROTATABLE LIMIT SWITCH
Designed for quick reset of limit position.

LIFETIME WARRANTY
The industry’s best warranty against manufacturing and material defects.

SWIVEL OR RIGID HOOK SUSPENSION AVAILABLE

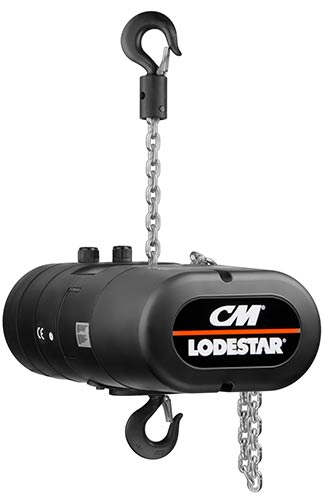

Lodestar Chain Hoist

CE Marking and Approved

 Lifetime Warranty

Made In the USA

CSA Approved

Load
OPTIONAL FEATURES

DIRECT CONTROL
Direct Control allows multiple motor units to be operated with a single control.

D8+
Meets all Standard VPLT SR 2.0/SQP2 requirements.

BGV-C1
Meets all standard C1 and DIN 56950 requirements.

VARIABLE SPEED DRIVE (VFD)

DOUBLE DC BRAKE
Two independent acting DC Brakes for redundant braking. Field installation kit available.

PRIMARY & SECONDARY TRANSFORMER FUSING

SUPERIOR DESIGN and BENEFITS of LODESTAR CHAIN HOISTS

LESS MAINTENANCE & EASIER INSPECTION

  • Heavy Duty DC Brake is designed for a long service life. Brake location allows for quick access and easy inspection
  • Lifetime grease-lubricated Gear Box means no oil change out is required. Precision gears provide better wear and longer life
  • Clutch located outside the Gear Box allows for easy access which eliminates the need for complete disassembly and reduces downtime

IMPROVED SERVICEABILITY

  • Easy access to the Clutch, Motor, Electrical Control Panel and Brake Assembly

LONGER SERVICE LIFE

  • Lifetime grease-lubricated Gear Box and helical gearing ensures efficient operation. Heavy duty rated motors. Hoist workmanship backed by a lifetime warranty

QUIETER OPERATION

  • 80% reduction in sound pressure as compared to the classic Lodestar

IMPROVED LOAD SAFETY

  • Clutch is located outside the load path which prevents slipping of the load in an overload condition when brake is not powered.
-LODESTAR CHAIN HOIST ROAD CASES –

1/2″ PLYWOOD CONSTRUCTION

  • Kangaroo Cases are sturdy and unyieldingly solid. They have an added Black ABS Laminate exterior with a ¾” castor board that provides smooth, controlled and confident movement.

TOUGH 4 – 4″ BLUE CASTERS ( with red upgrade option)

  • Built for the road they add a seamless easy ground roll.

LARGE RECESSED HEAVY DUTY HARDWARE

  • High Quality Hardware with recessed lid Stops/Hinge.

CUSTOM DESIGNED COMPARTMENTS

  • Designed for Lodestar and Prostars motors with V-cut chain passages, chain storage, and bag storage.
Lodestar Road Cases Chainhoists
