 XSF Light Duty Line Array Tower

The XSF Light Duty Line Array Tower is made using XSF 12×12 Utility bolt plate truss and a few custom 12×12 bolt plate components.  The tower consists of 25 feet of truss and has a capacity of 2,600 pounds using XSF tower truss and 2,000 pounds with standard XSF Utility truss for indoor use.

For outdoor use the tower is engineered for wind speeds up to 45mph and can support 1,500 pounds.  Overall height is 27 feet.  A package including the custom components only may be purchased for use with your current 12×12 truss inventory.

XSF Heavy Duty Line Array Tower

The XSF Heavy Duty Line Array Tower is comprised of XSF 16×16 Fork End (spigot) Tower Truss and custom 16×16 fork end components. The tower consists of 28 feet of truss and has a capacity of 4,400 pounds in outdoor situations with wind speeds up to 45mph.

Overall height is 31 feet. Two each 45-gallon ballast tanks are provided to resist overturning from wind loads or the legs may be anchored to the ground.

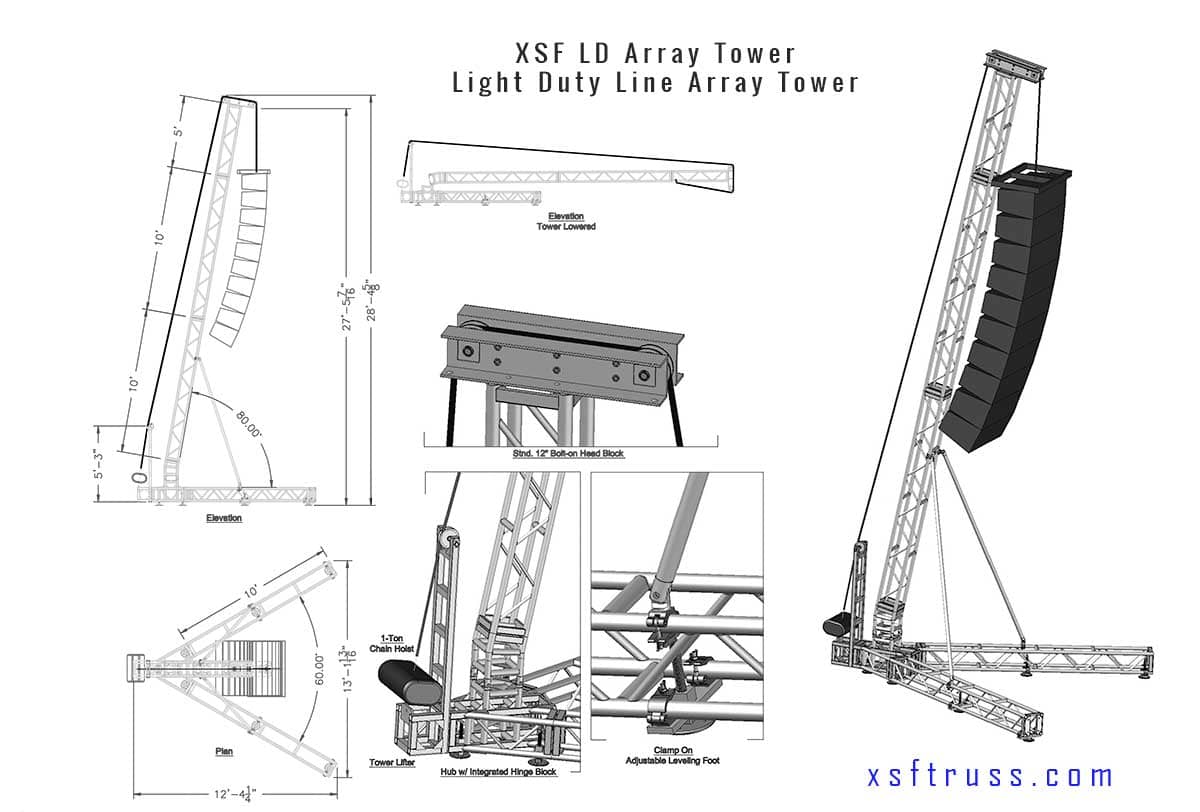

Below are Light and Heavy Duty Line Array Tower sample drawings.

Click to open a Lightbox and enlarge images.

The above video shows the process of raising and securing our XSF light duty line array tower.

The above video shows the truss components of our XSF light duty line array tower.
