Triangle Truss

XSF Triangle Truss is available in

  • 20.5″ Aluminum Utility Truss with Steel Fork End Connections
  • 20.5” Aluminum Utility Truss with Aluminum Fork End Connections
  • 20.5” Bolt Plate
  • 12″ Aluminum Utility Truss with Steel Fork End Connections
  • 12” Aluminum Utility Truss with Aluminum Fork End Connections
  • 12” Bolt Plate

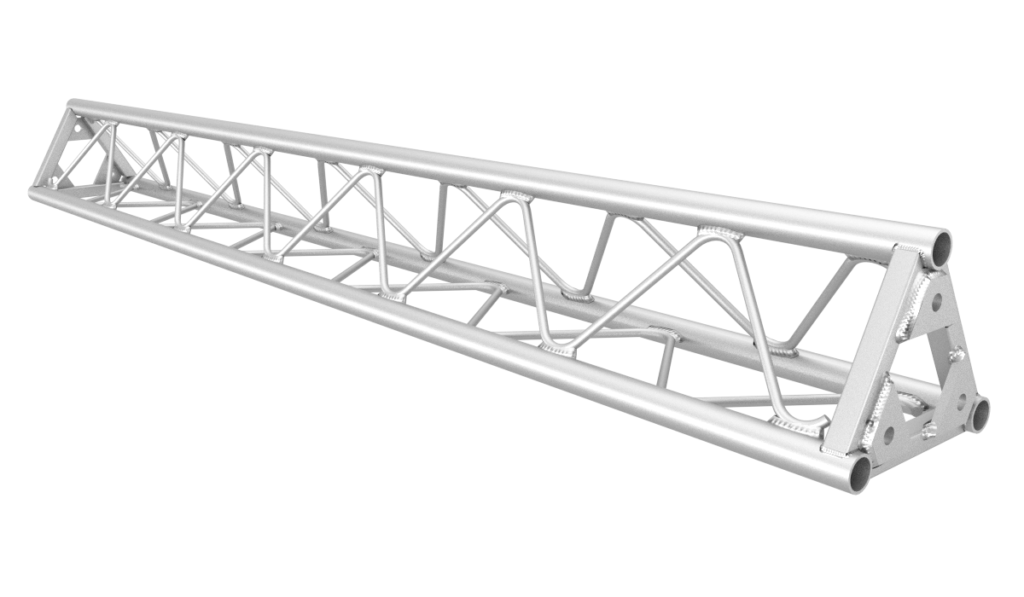

  • 10″ XLITE Bolt Plate

Triangle Truss accessories include:

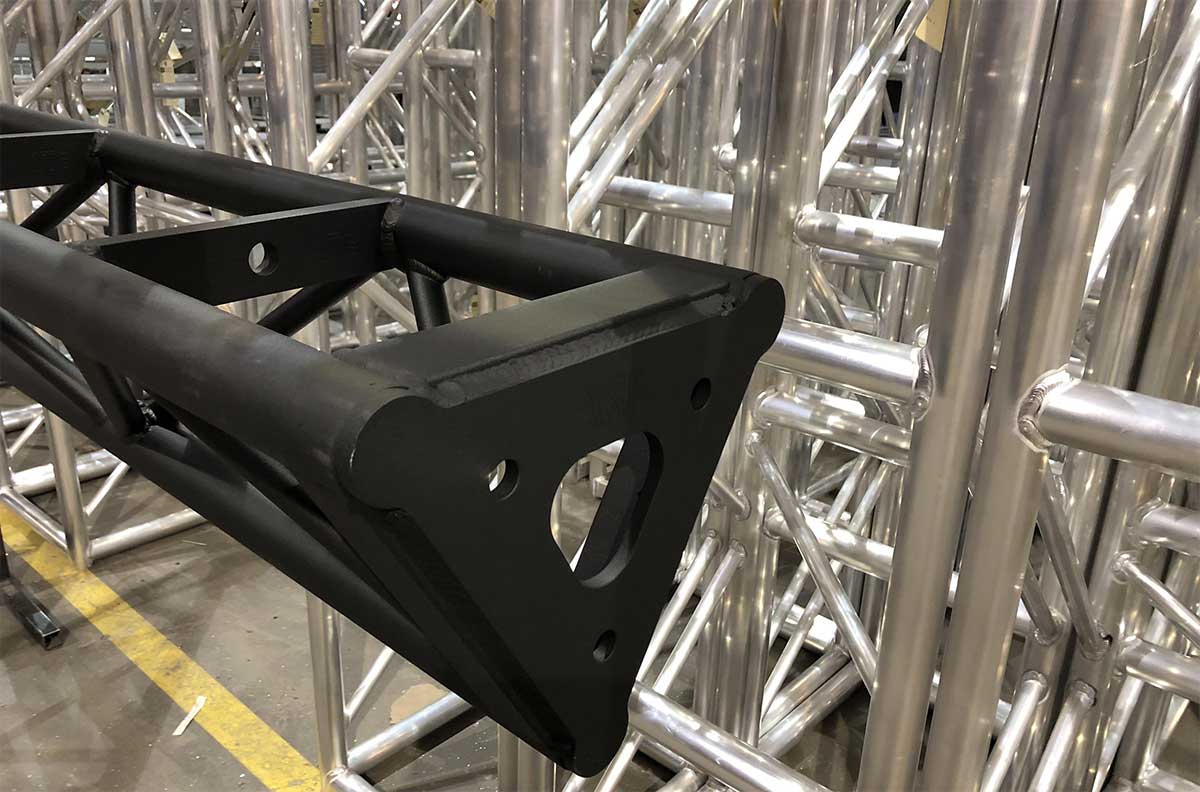

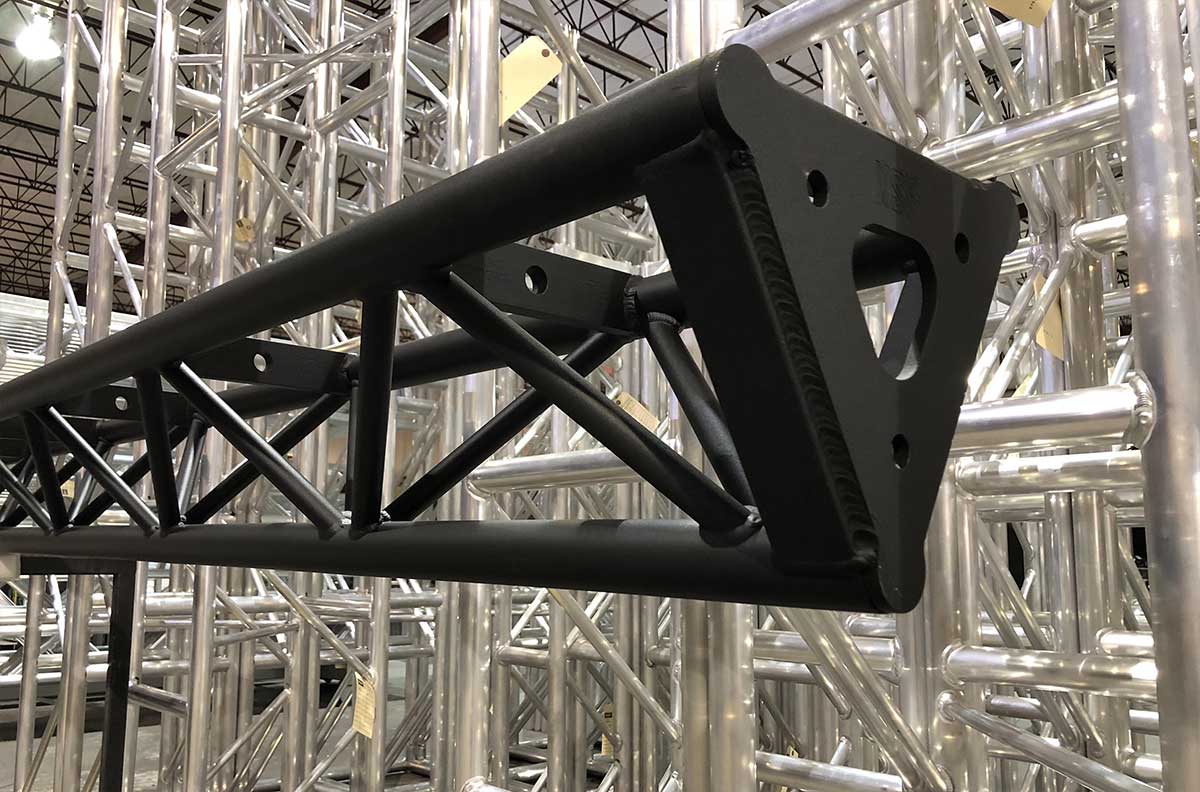

The above powder coated Triangle Truss also feature the exclusive XSF Integrated Rig Points installed in the top face. Learn more about the Integrated Rig Point

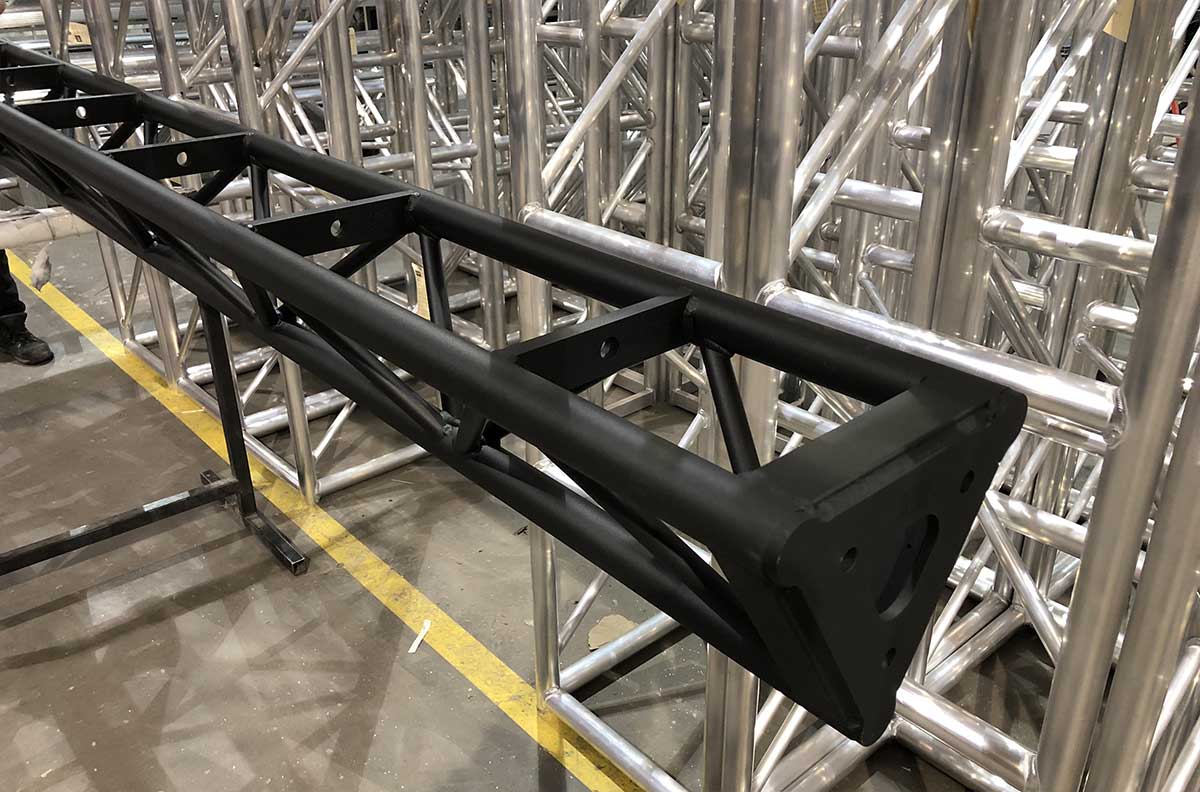

10″ Triangular Protective Bolt Plate

10″ Protective Bolt Plate Triangle Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request

The chords are 1-1/2″ diameter x 1/8” wall thickness.

The diagonals are 7/16” diameter solid rod

The truss is connected using standard 5/8″ diameter steel bolts

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

Download 10” XLITE Triangle Truss load table

XL-10T-125PBP-12010′ Triangle Truss
XL-10T-125PBP-968′ Triangle Truss
XL-10T-125PBP-605′ Triangle Truss
XL-10T-2CB2-Way Truss CB
XL-10T-3CB3-Way Truss CB
XL-10T-4CB4-Way Truss CB
XL-10T-5PCB5-Way Plate CB
XL-18-BP-TRI-C18” Base Plate – Corner
XL-18-BP-TRI-E18” Base Plate – Edge
XL-18-BP-TRI-M 18” Base Plate – Middle
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
10197985739493410
2037466273196154
309167987055

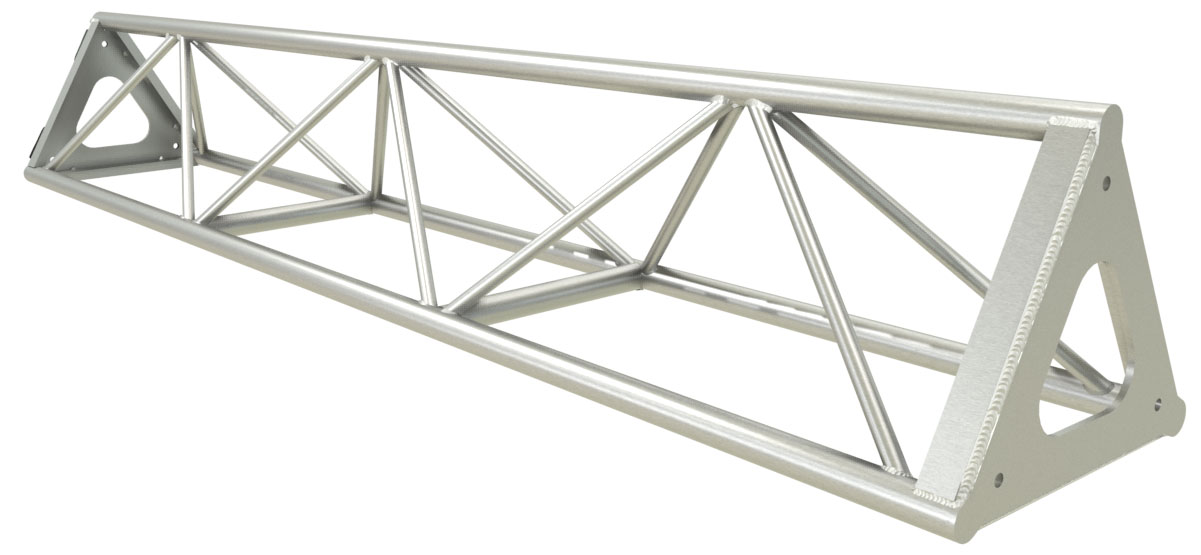

10" Triangle PBP Truss

12″ Aluminum Utility Triangular Truss with Steel Fork End Connections

12″ Aluminum Utility Triangular Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

X-12T-188FE-12010′ Triangle Truss
X-12T-188FE-968′ Triangle Truss
X-12T-188FE-605′ Triangle Truss
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
10408240016001200800
201021090740520430
3042650470320260
4019430290200160
12 inch Triangle Steel Forkend Truss

12″ Aluminum Utility Triangular Truss with Steel Fork End Connections

12 inch Triangle Steel Forkend Truss

12″ Triangle Steel Fork End Truss

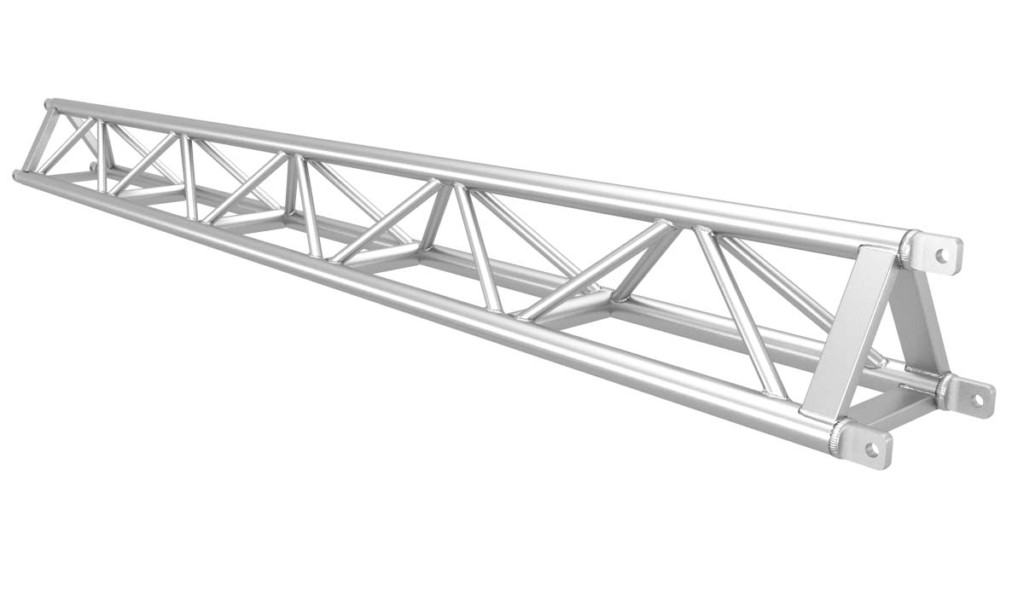

12″ Aluminum Utility Triangular Truss with Aluminum Fork End Connections

12” Aluminum Utility Triangular Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.

10′ TrussX-12T-125AFE-120
8′ TrussX-12T-125AFE-96
5′ TrussX-12T-125AFE-60
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1028816801110690580
2066720510350250
3028450320200170
4012290190130100
Triangle Truss 12 inch Fork Ended

12″Aluminum Utility Triangular Truss with Aluminum Fork End Connections

12-triangle-aluminum-forkend

12″ Aluminium Fork End Truss

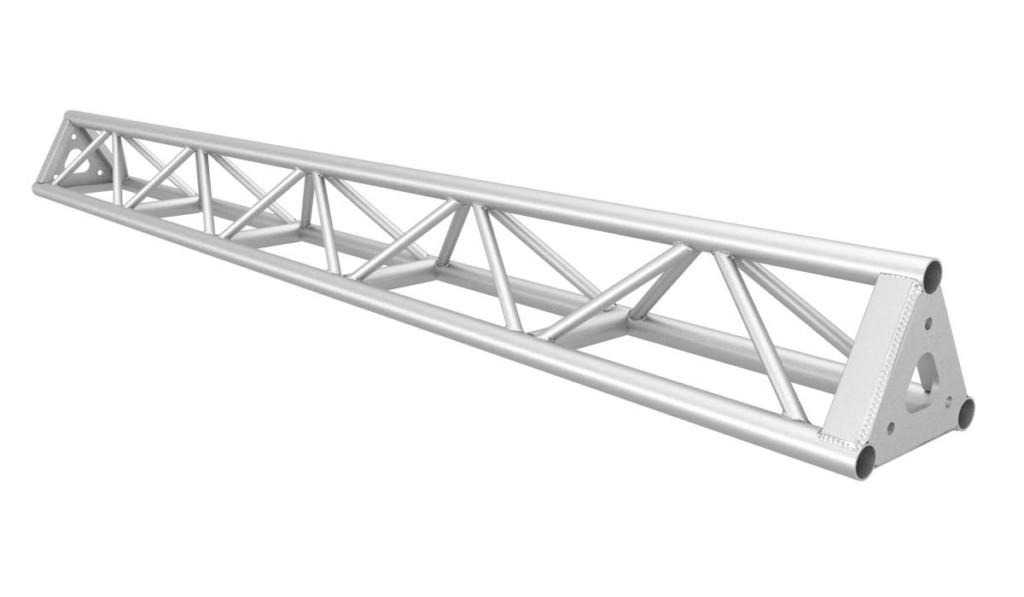

12″ Triangular Protective Bolt Plate

12″ Protective Bolt Plate Triangle Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick diagonals.

The trusses are joined together with 5/8″ steel bolts.

10′ TrussX-12T-125PBP-120
8′ TrussX-12T-125PBP-96
5′ TrussX-12T-125PBP-60
X-12T-2CB2-Way Corner Block
X-12T-3CB3-Way Corner Block
X-12T-4CB4-Way Corner Block
X-12T-5CB5-Way Corner Block
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1029614791110740616
2067672505336280
3025373280187155
40470533529
12" Triangle PBP Truss

12″ Triangle Bolt Utility

12-triangle-boltplate-utility

12″ Triangle Bolt Utility

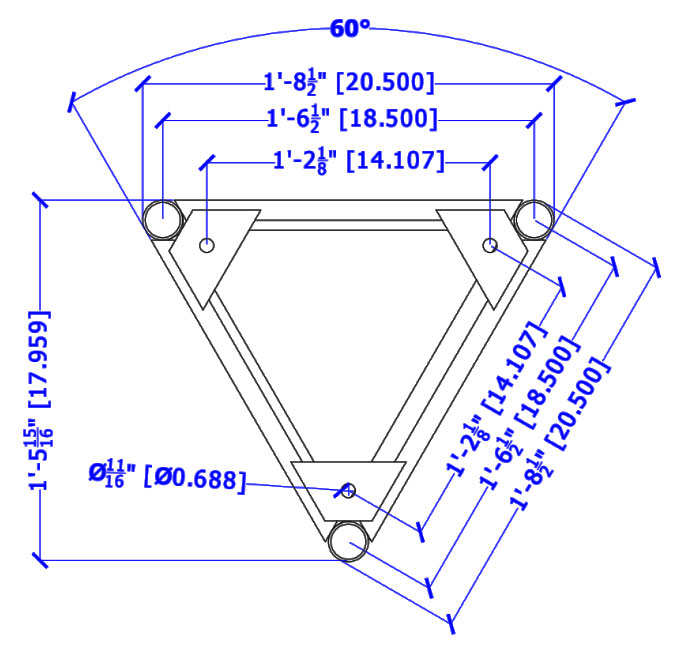

20.5″ Aluminum Utility Triangular Truss with Steel Fork End Connections

20.5″ Aluminum Utility Triangular Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

10′ TrussX-20.5T-188FE-120
8′ TrussX-20.5T-188FE-96
5′ TrussX-20.5T-188FE-60
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
107915788395626371978
202802797210013991166
3011717571319879732
40601205905603502
5024607455303253
Aluminum Utility Triangular Truss with Steel Fork End Connections

20.5″ Aluminum Utility Triangular Truss with Steel Fork End Connections

USA MADE ALUMINUM TRUSS

All XSF Truss is 100% USA Made.  Our 43,000 sq. ft. truss manufacturing and fabrication facility is located in Sulphur Springs, Texas, and has been operating since 2002.

USA Aluminum Made Truss

20.5″ Aluminum Utility Triangular Truss with Aluminum Fork End Connections

20.5″ Aluminum Utility Triangular Truss with Aluminum Fork End Connections comes in standard lengths of 5′, 8′, and 10′ also.

XSF offers its custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals.

The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork ended connections.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

10′ TrussX-20.5T-125AFE-120
8′ TrussX-20.5T-125AFE-96
5′ TrussX-20.5T-125AFE-60
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
107753874290919371614
2018818851415942785
30801198899599499
4042837629419349
5019464348232193
20".5 Triangle Utility Forkend Aluminum Truss

20.5″ Aluminum Utility Triangular Truss with Aluminum Fork End Connections

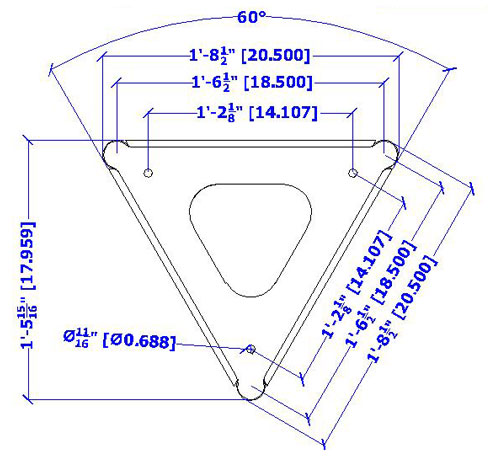

20.5 ” Plated Triangular

20.5″ Utility Bolt Plate Triangle Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick diagonals.

The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

10′ TrussX-20.5T-125BP-120
8′ TrussX-20.5T-125BP-96
5′ TrussX-20.5T-125BP-60
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
104882439183112201016
201181177884588490
3049737553369307
4025503378251210
5014351264176146
20.5" Utility Boltplate Triangle Truss
