Base Plates

Base plates are a key component for outdoor shows and events which have temporary structures. The base plates mount to the bottom of standing truss and provide a stable base support for the structure. For examples of temporary and base plate applications visit the ground support section of our website.

     Standard base plates connect to 10”x10”, 10” Triangle, 12”x12”, 12” Triangle, 12”x18”, 16”x16”, 20.5”x20.5” Bolt Plate Truss

Base Plate Features & Info

  • Available for both Box and Triangle Truss
  • Standard bolted plates shown below
  • Connection adaptors available to convert base plates into or our Steel and Aluminum Fork End Connections
  • Custom base plates available with holes to mount trusses flush to one side or flush to the corner of the plate
  • Steel base plates come standard with black powder coating
  • Aluminum base plates come standard with brushed aluminum finish
  • Fabricated by AWS certified welders in the USA
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.

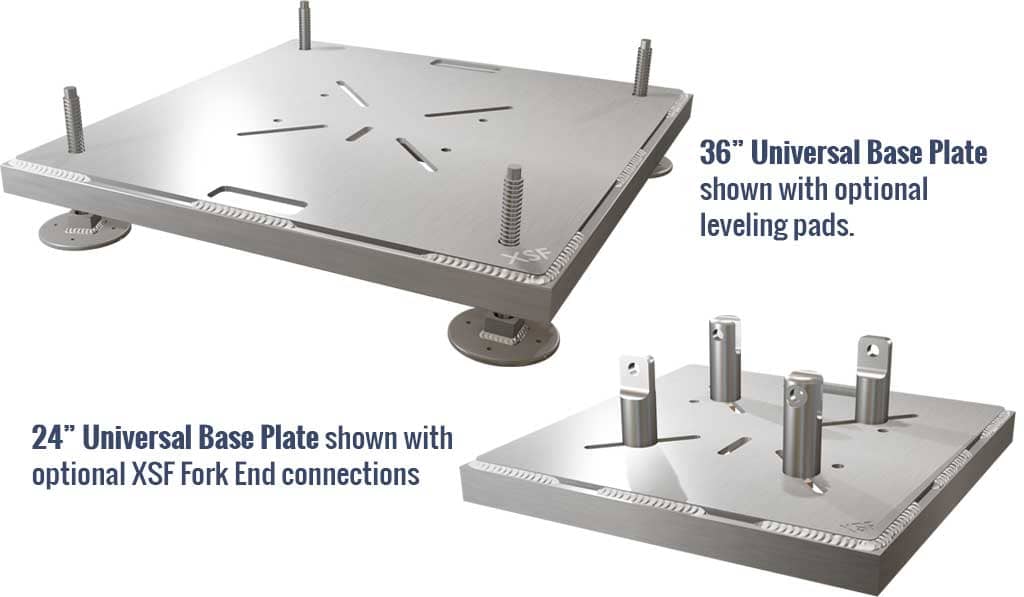

Universal Base Plates with Optional Connectors

PART NUMBERLENGTHWEIGHT (lbs)
X-24-UBP24″ x 24″27
X-36-UBP36″ x 36″58
X-24-UBP-STEEL24″ x 24″44
X-36-UBP-STEEL36″ x 36″98
X-24-UBP-CART-524″ Base Plate Cart
X-36-UBP-CART-536″ Base Plate Cart
X-48-UBP48″ x 48″103
X-48-UBP-STEEL48″ x 48″175
X-36DIA-UBP36 DIA46
X-48DIA-UBP48 DIA81

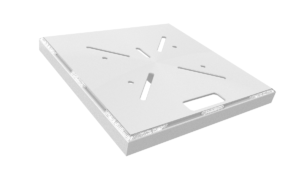

24″ Aluminum Universal Base Plate

24_Aluminum_UniversalBasePlate

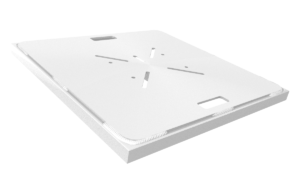

36″ Aluminum Universal Base Plate

36_Aluminum_UniversalBasePlate

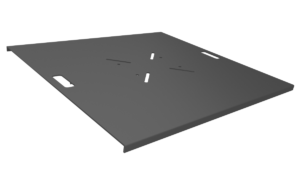

48″ Aluminum Universal Base Plate

48_Aluminum_UniversalBasePlate

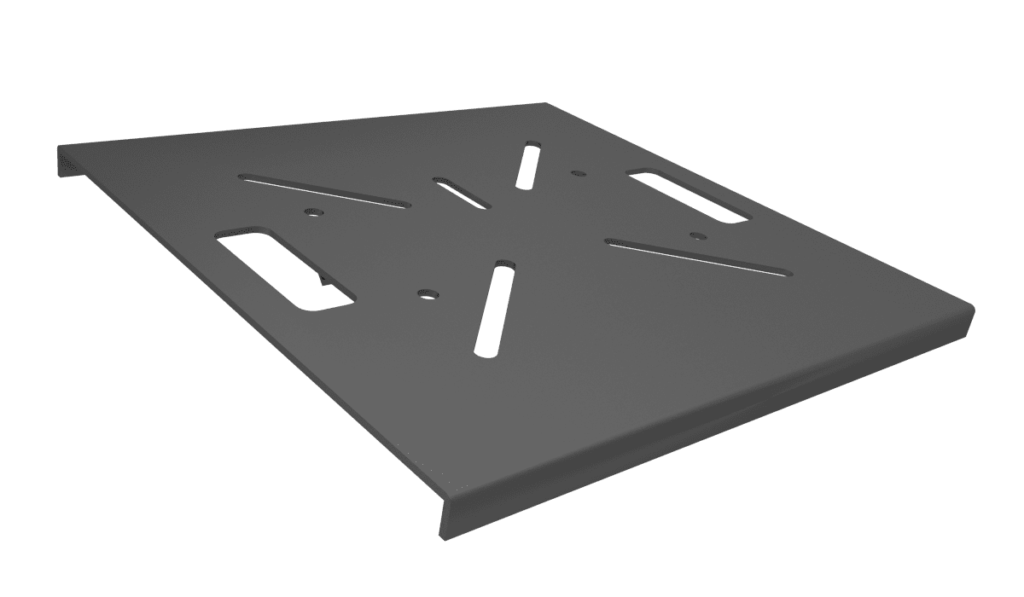

24″ Steel Universal Base Plate

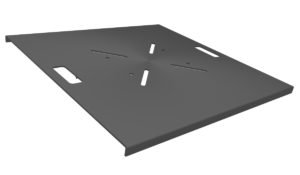

36″ Steel Universal Base Plate

36_Steel_UniversalBasePlate

48″ Steel Universal Base Plate

48_Steel_UniversalBasePlate

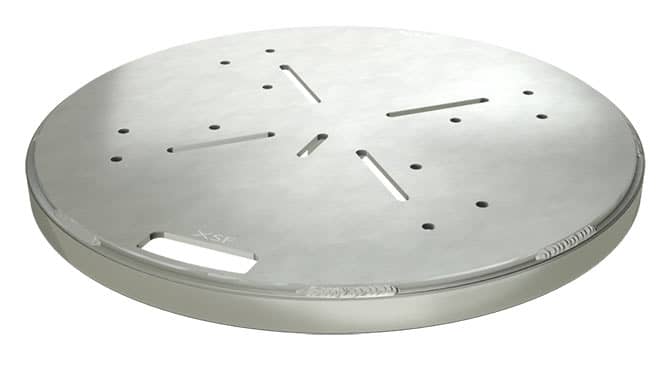

36″ Diameter Round Base Plates

36 Inch Diameter Round Base Plates

All Products Made In USA

48″ Diameter Round Base Plates

48 Inch Diameter Round Base Plates

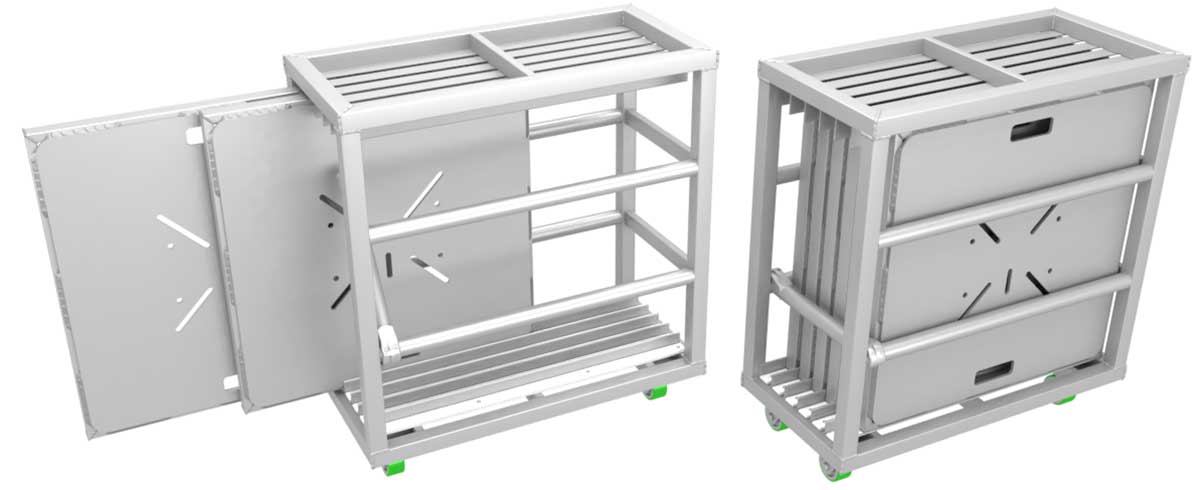

Base Plate Carts

XSF offers base plate carts for our 24” and 36” steel or aluminum base plates.  Each cart can carry up to 6 base plates.

Custom carts available upon request.

Base Plate Cart -truss Accessories
