Integrated Rig Point

The Xtreme Structures (patent pending) Integrated Rig Point (IRP) provides a whole new way to rig your truss safely. The IRP makes rigging easy and more cost-effective

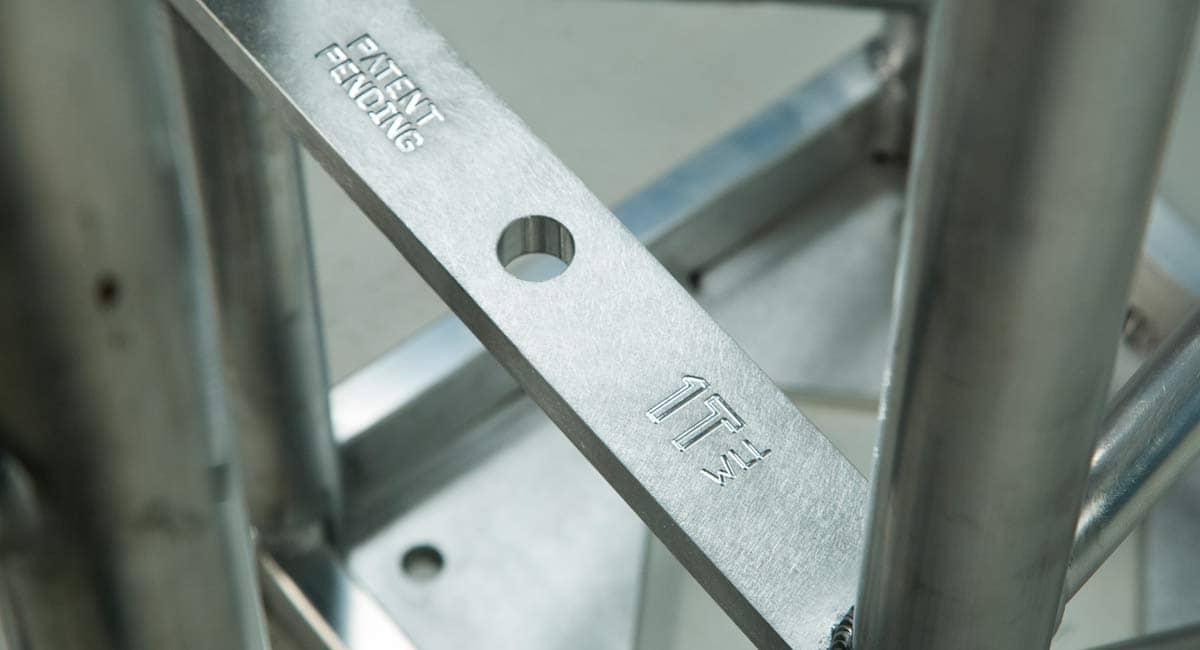

The IRP is a heavy-duty aluminum, integrated rig bar that provides an engineered rig point with a 1-ton load rating at each panel point within the truss.  Welding the rig points into the truss at precise panel points ensures the 1-ton load rating is at the safest location possible. This new innovation from XSF will save riggers time with its convenience and expert design.

The IRP contains a hole designed for a standard 5/8” shackle and eliminates the need for backup fire safety cables.

It can be installed in any XSF standard trusses including:

  • 12”x12”
  • 12”x18”
  • 16”x16”
  • 20.5”x20.5”
  • 30” x 20.5”

At a fraction of the cost of removable rig points, the IRP can be installed at every panel

 point , or can be selectively placed a la carte at fewer panel points.

Protective Bolt Plate Truss -Truss Innovation

Watch the Integrated Rig Point Video to learn more about this innovative and original new product from XSF.



Click on thumbnail to open large images and lightbox.

Integrated Rig Point Truss System

The Integrated Rig Point can be installed in any type of XSF truss including:

  • XSF Protective Bolt Plate Truss
  • XSF Standard Bolt Plate Truss
  • XSF Fork End Truss
  • XSF Aluminum Fork End Truss

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

12′ TrussX-IRP-12
16′ TrussX-IRP-16
18′ TrussX-IRP-18
20.5′ TrussX-IRP-20.5
