Diamond Truss

Safety is number 1 in our industry and with that; many times we are faced with the challenge of offset or unbalanced loads.  The XSF Diamond Truss reduces this problem and offers a safe, reliable and logical solution.  Diamond Truss also offers additional flexibility as the traditional box truss configuration or vertical tower or columns.

When hanging video screens, curtains or other linear or inline devices, the XSF Diamond truss allows these items to be hung down the center line of the truss. This configuration creates an equalized and “natural” balance from the main chords. With the addition of an extra chord it increases rigidity and prevents bending or sag.

New in 2020, XSF Truss has developed a new truss specifically designed for Moving Lights, Automation and Video called MAV. To learn more about this product as a possible alternative to the Diamond Truss check it out here.

We encourage you to open the load tables chart above to see if the Diamond Truss configuration is right for you.

For information on Diamond Truss or other XSF products and services call or email us.

Diamond Truss Stress Test

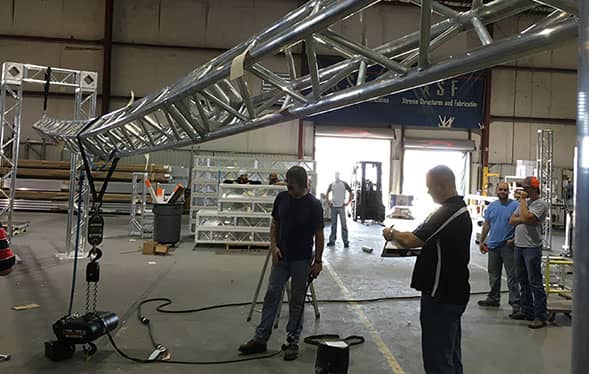

As performed many times in the XSF facility in Sulphur Springs Texas. Our team of engineers work diligently on the Diamond Configuration stress tests. The results are spectacular.

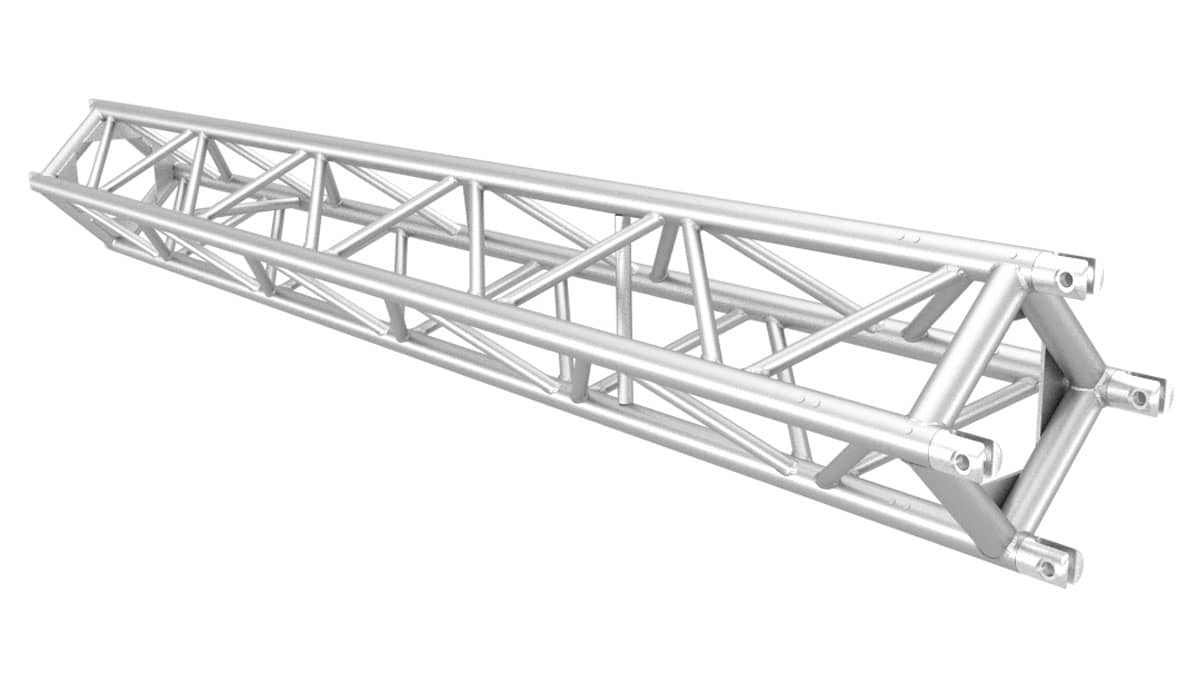

12” Aluminum Utility Diamond Truss with Steel Fork End Connections

  • 12″x 12″ Aluminum Utility Diamond Truss with Steel Fork End Connections comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
  • The aluminum chords are 2″ OD x 3/16″ thick with 1″ OD x 1/8″ thick aluminum diagonals.
  • The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.
  • Fabricated by AWS certified welders in the USA.
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
10′ TrussX-12DIA-188FE-120
8′ TrussX-12DIA-188FE-96
5′ TrussX-12DIA-188FE-60
2-Way Corner BlockX-12CB-DIA-188FE-2
3-Way Corner BlockX-12CB-DIA-188FE-3
4-Way Corner BlockX-12CB-DIA-188FE-4
5-Way Corner BlockX-12CB-DIA-188FE-5
6-Way Corner BlockX-12CB-DIA-188FE-6
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
518074518339222591882
107783888291919441620
153412554191812771064
2018818761409938782
2510913661026683569
3048726545363303
3521376282188157
4091881419478

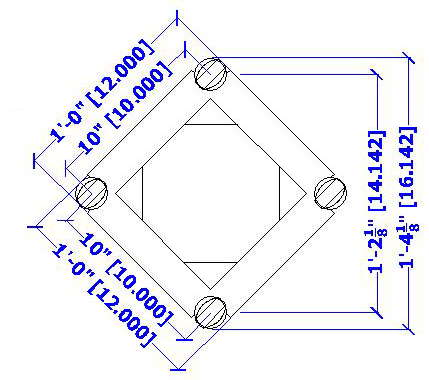

Diamond Truss Configuration

Aluminum Utility Diamond Truss with Steel Fork End Connections
