Sleeve Blocks for Truss Towers

XSF have been engineering and fabricating Truss Towers across the USA for more than 20 years. As a Texas based company, expert in outdoor Ground Support, Truss Tower and Goal Post systems we understand the importance of a well-engineered and well-built structure where safety is paramount.

Sleeve Blocks have a relatively easy installation process and provide an amazing amount of convenience for riggers and production crews.

Below are detailed Images, Part Numbers, and Descriptions, as well as what a Sleeve block is and why they are a highly useful component of Ground Support Systems.

Click the + to open a Sleeve Block Information Guide and Click any image below to enlarge and open the Image Gallery.

SLEEVE BLOCK INFORMATION GUIDE | Part Numbers | Description | Truss Size | Tower Size

PART NUMBER	DESCRIPTION	TRUSS SIZE	TOWER SIZE

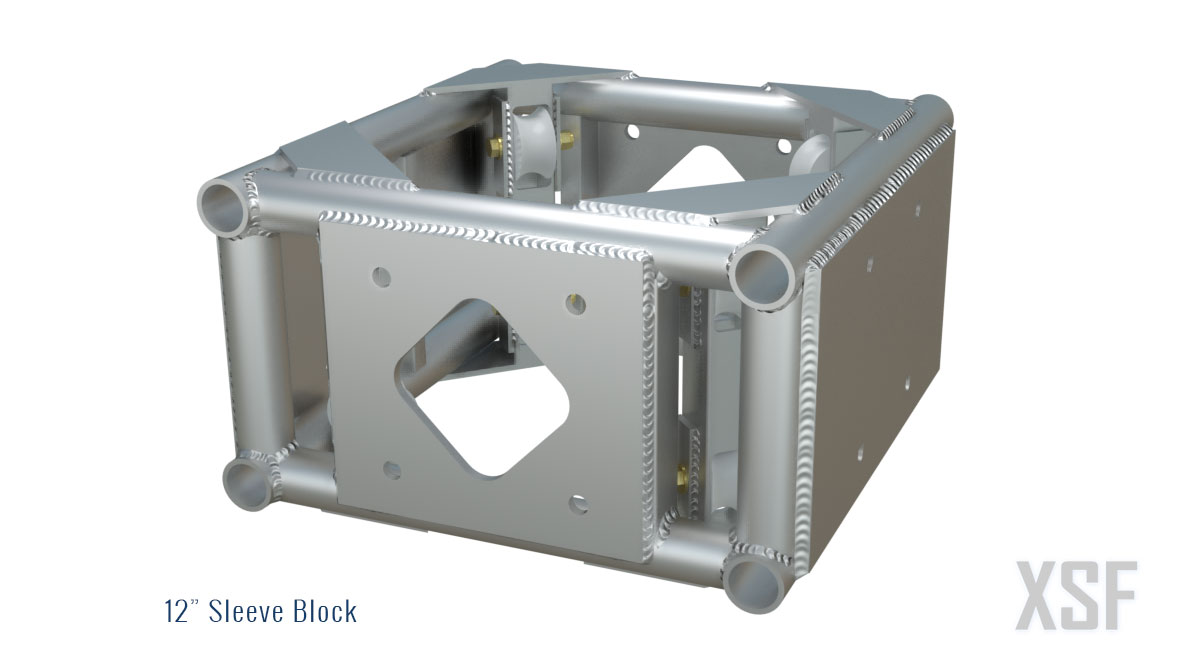

X-12×12-125PBP-4WAY-SLV	12×12 Protective Bolt Plate Sleeve Block 4-Way	12″x12″	12″x12″
X-12×12-188FE-4WAY-SLV	12×12 Fork End Sleeve Block 4-Way	12″x12″	12″x12″

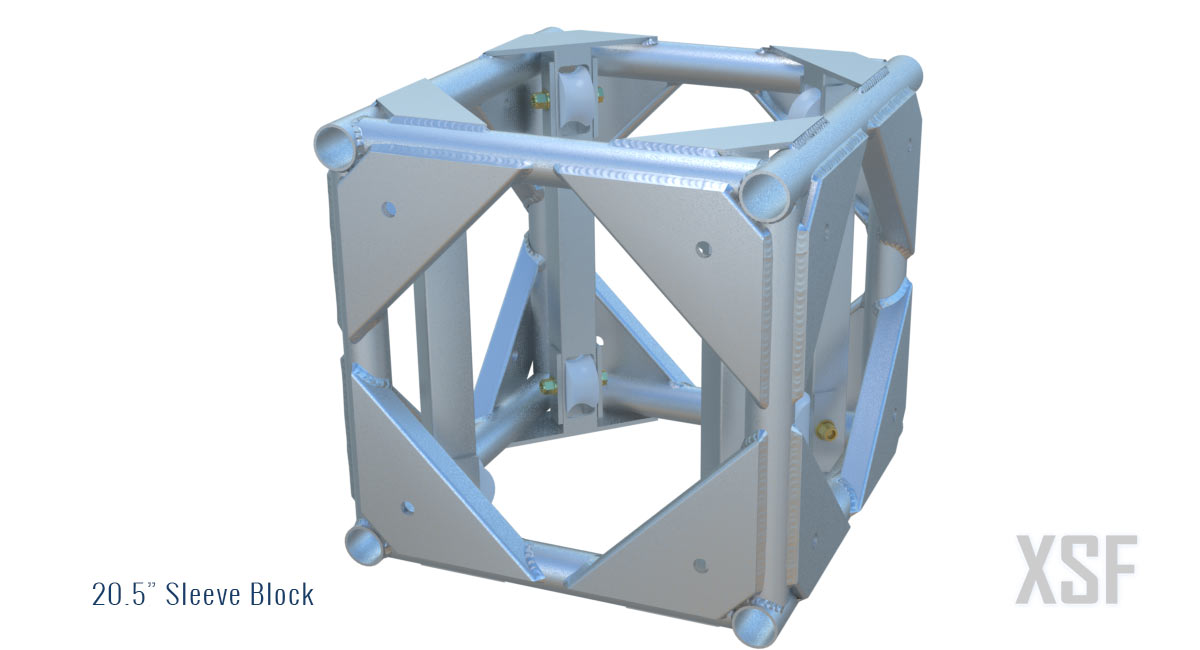

X-20.5×20.5-125PBP-4WAY-SLV	20.5×20.5 Protective Bolt Plate Sleeve Block 4-Way	20.5″x20.5″	12″x12″ or 16″x16″
X-20.5×20.5-188FE-4WAY-SLV	20.5×20.5 Fork End Sleeve Block 4-Way	20.5″x20.5″	12″x12″ or 16″x16″
X-30×20.5-125PBP-4WAY-SLV	30×20.5 Protective Bolt Plate Sleeve Block 4-Way	30″ x 20.5″	12″x12″ or 16″x16″
X-30×20.5-188FE-4WAY-SLV	30×20.5 Fork End Sleeve Block 4-Way	30″ x 20.5″	12″x12″ or 16″x16″
X-30×20.5-375FE-4WAY-SLV	30×20.5 Heavy Duty Fork End Sleeve Block 4-Way	30″ x 20.5″	12″x12″ or 16″x16″
X-36×30-125PBP-4WAY-SLV	36×30 Protective Bolt Plate Sleeve Block 4-Way	36″ x 30″	16″x16″ or 20.5″x20.5″
X-36×30-188FE-4WAY-SLV	36×30 Fork End Sleeve Block 4-Way	36″ x 30″	16″x16″ or 20.5″x20.5″
X-36×30-375FE-4WAY-SLV	36×30 Heavy Duty Fork End Sleeve Block 4-Way	36″ x 30″	16″x16″ or 20.5″x20.5″

Sleeve Block Features

Sleeve Blocks can be used on any size XSF Truss Tower with custom applications available upon request.

Standard size sleeve blocks are designed to be used with 12”x12”, 16”x16”, and 20.5”x20.5” towers.

Sleeve blocks can be used for any truss sizes XSF offers from 10”x10” up to 36”x30” truss

They are available for all Truss connection types also, which include:

Bolt Plate Truss
Protective Bolt Plate Truss
Aluminum Forkend Truss
Steel Forkended Truss

ADDITIONAL SLEEVE BLOCK FEATURES

Intended for use with chain hoists
Rig points integrated into the sleeve blocks available upon request
Anchor for vertical lifeline available upon request
Integrated Dead-off applications available upon request

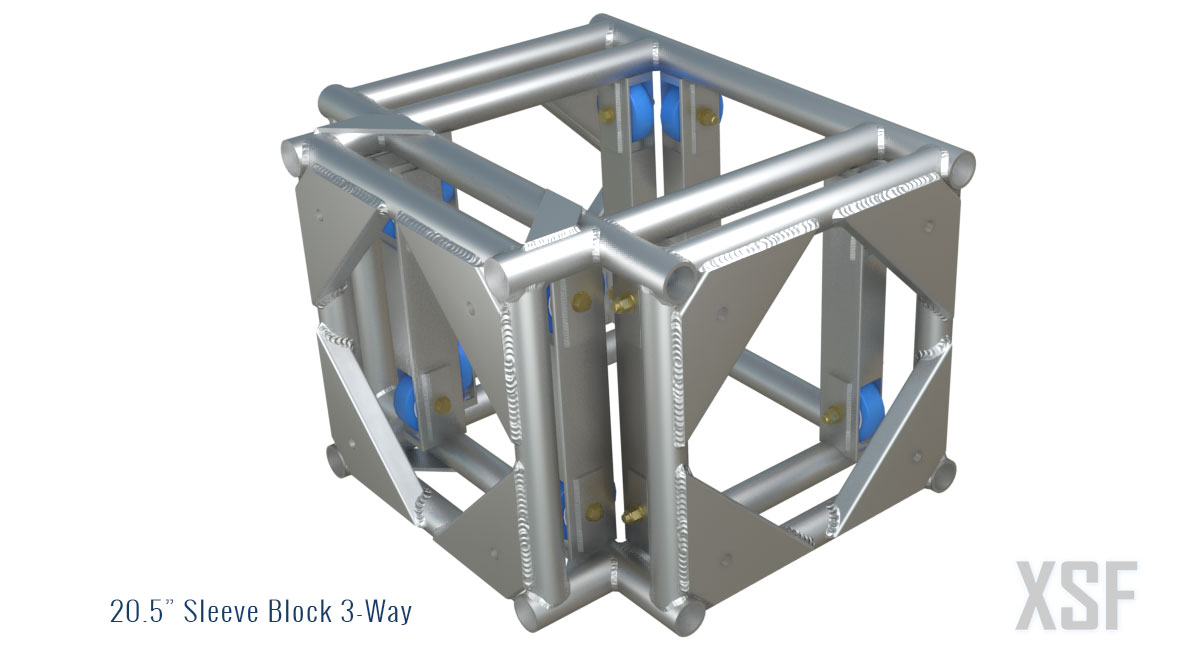

Sleeve Block Configurations come standard as 4-ways, but are available in 2-way and 3-way configurations upon request.

What is a Truss Sleeve Block and What is its Purpose?

As a partner to the Headblock the sleeve blocks are attached to the main truss and contain internal guide wheels which allow the raising and lowering of goal post or truss roof grid systems.

As the Chain hoist raises or lowers the main truss, the sleeve blocks provide a clean, safe, guide that moves up and down the towers. The Sleeve Block provides smooth vertical movement with no sway or motion that could damage the structure.

More Information on Truss Towers

If you would like to learn more about all the components that make up a truss tower, we encourage you to visit our “What is A Truss Tower” page or, to see a gallery of Towers we have constructed visit our Ground Support or Truss Gallery Pages.

Below are also a few landmark Ground Support Truss Systems and Truss Towers XSF have provided to our customers:

Because of the many factors involved in the engineering calculations for a tower truss, standard load tables are not provided by XSF for tower truss. The design includes more factors than standard truss used in a horizontal application.

XSF offers engineering for each tower truss application to ensure the correct towers are provided with safety in mind for your project.

For Custom & Available Truss Towers visit our truss tower product page.
