SPACE SAVING

The Xtreme Structures Space Saving Truss is a unique truss design that allows the truss to nest on itself and stack up to 10 high on a truss dolly.

Stacking the truss 10 high allows for 150 trusses to be loaded onto a single tractor trailer, greatly reducing the number of trucks required to transport the truss.

In comparison, shipping other trusses of the same size and strength will only allow for a total of approximately 60 trusses per truck.

Watch our video to learn more about the XSF Space Saving Truss >>>

Space saving truss comes in 24” or 36” format with spigot connections.

Standard lengths for space saving truss are 10 foot, 8 foot, and 5 foot with custom lengths available upon request.

All space saving trusses include the snap braces, clevis pins and R-clips and are fabricated by AWS certified welders in the United States. The snap braces include a half coupler on one end and a snap hook on the other. The half coupler is provided as a safety mechanism to prevent the brace from falling in the event the snap hook is improperly installed by the user.

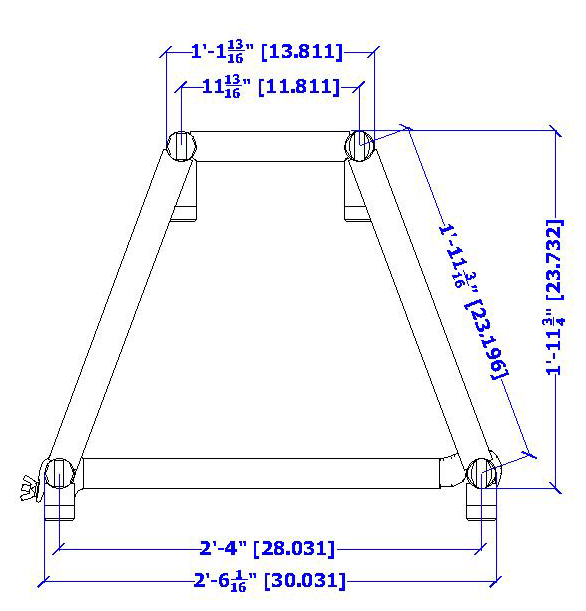

24″ Space Saving Truss w/ Aluminum Fork End Connections

24″ Space Saving Truss nests on itself and stacks up to 10 high on a single truss dolly greatly reducing the truck space required for transportation.

  • 24″ SST comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
  • The chords are 2″ OD x 1/8″ thick with 1.5″ OD x 1/8″ thick diagonals.
  • The trusses are joined together with 3/4″ steel clevis pins through 2″ OD aluminum fork end connections.
  • Snap braces and hardware are included.
  • Fabricated by AWS certified welders in the USA.
  • Powder coating available upon request in any color.
10′ Truss X-24SST-125AFE-120
8′ Truss X-24SST-125AFE-96
5′ Truss X-24SST-125AFE-60
2-Way Corner Block X-24SST-125AFE-CB-2
3-Way Corner Block X-24SST-125AFE-CB-3
4-Way Corner Block X-24SST-125AFE-CB-4
Span Uniformly Distributed Load Center Point Load Third Point Loads Quarter Point Loads Fifth Point Loads
(ft) (plf) (lbs) (lbs) (lbs) (lbs)
10 851 4253 3193 2127 1772
20 422 4216 3165 2108 1757
30 231 3468 4603 1734 1445
40 127 2536 1904 1268 1057
50 61 1516 1138 758 632

24 Space Saving Truss Steel

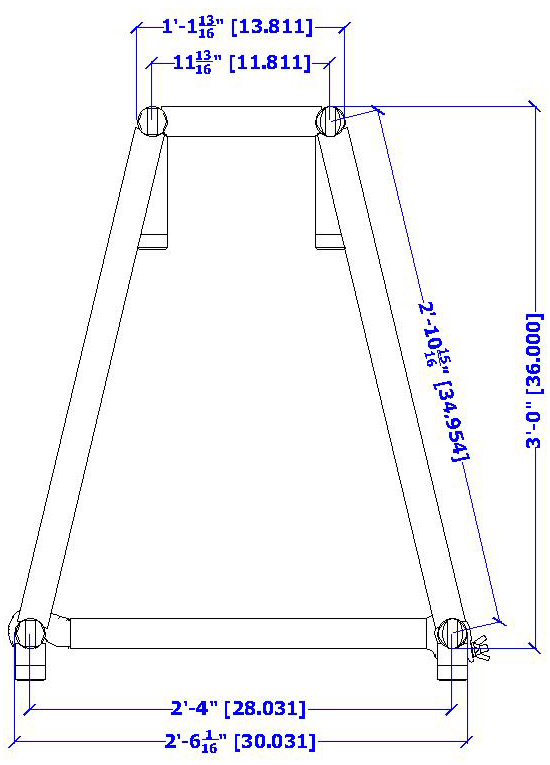

 36″ Heavy Duty Space Saving Truss

36″ Heavy Duty Space Saving Truss nests on itself and stacks up to 10 high on a single truss dolly greatly reducing the truck space required for transportation.

  • 36″ HD SST comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
  • The chords are 2″ OD x 3/8″ thick with 1.5″ OD x 1/8″ thick diagonals.
  • The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.
  • Snap braces and hardware are included.
  • Fabricated by AWS certified welders in the USA.
  • Powder coating available upon request in any color.
10′ Truss X-36HDSST-375FE-120
8′ Truss X-36HDSST-375FE-96
5′ Truss X-36HDSST-375FE-60
2-Way Corner Block X-36HDSST-375FE-CB-2
3-Way Corner Block X-36HDSST-375FE-CB-3
4-Way Corner Block X-36HDSST-375FE-CB-4
Span Uniformly Distributed Load Center Point Load Third Point Loads Quarter Point Loads Fifth Point Loads
(ft) (plf) (lbs) (lbs) (lbs) (lbs)
10 1680 16800 8400 5600 4200
20 840 16800 8400 5600 4200
30 560 12963 8400 5600 4200
40 420 9566 7174 4783 3416
50 299 7491 5619 3746 2676
60 202 6079 4559 3039 2171
70 109 3827 2871 1914 1595
36 Heavy Duty Space Saver

36 Heavy Duty Space Saver

36″ Space Saving Truss

36″ Space Saving Truss nests on itself and stacks up to 10 high on a single truss dolly greatly reducing the truck space required for transportation.

  •  36″ SST comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
  • The chords are 2″ OD x 3/16″ thick with 1.5″ OD x 1/8″ thick diagonals.
  • The trusses are joined together with 3/4″ steel clevis pins through 2″ OD steel fork end connections.
  • Snap braces and hardware are included.
  • Fabricated by AWS certified welders in the USA.
  • Powder coating available upon request in any color. upon request in any color.
10′ Truss X-36SST-188FE-120
8′ Truss X-36SST-188FE-96
5′ Truss X-36SST-188FE-60
2-Way Corner Block X-36SST-188FE-CB-2
3-Way Corner Block X-36SST-188FE-CB-3
4-Way Corner Block X-36SST-188FE-CB-4
Span Uniformly Distributed Load Center Point Load Third Point Loads Quarter Point Loads Fifth Point Loads
(ft) (plf) (lbs) (lbs) (lbs) (lbs)
10 1680 16800 8400 5600 4200
20 840 10697 8023 5349 3820
30 467 7015 5261 3507 2505
40 256 5138 3854 2569 1835
50 159 3984 2988 1992 1423
60 106 3192 2394 1596 1140
70 56 1995 1496 997 831
36 Heavy Duty Space Saver

36″ Space Saver
