PROSTAR VS ELECTRIC CHAIN MOTOR

For quiet operation, quick lifting speeds and quality precision, the Prostar VS is worth a very good look from the pro rigger– A further bonus to all that is the fact is the Prostar VS is wrapped in a portable and compact design.

Variable speed proficiencies allows for easy configuration for whatever your  job.  “On the Spot” adjusts are easily managed with a comfortable, user friendly interface. The Prostar VS makes it simple to change or adjust operation speed, motor performance and much more

CMET Entertainment Technology | XSFTRUSS

Columbus McKinnon Entertainment Technology (CM-ET) is the entertainment industry leader in providing quality lifting and positioning equipment for riggers around the globe.

FEATURES & BENEFITS

RUGGED & DURABLE
Thermally protected motor. Rugged, cast aluminum alloy frame and body feature durable epoxy powder-coat finish to protect against corrosion.

LOW MAINTENANCE
Gear train lifetime lubricated with non-oxidizing grease. Totally enclosed frame protects motor from environmental contamination.

COMPACT DESIGN
Small, compact design makes motor ideal for use in tight spaces and allows for easy installation and maintenance.

OVERLOAD PROTECTION
Standard overload device protects the chain motor, operator and surrounding structure from damaging overloads.

LONG CHAIN LIFE
Durable CM Hoistaloy® Load Chain. 10-pocket, oblique-lay lift wheel for longer chain life.

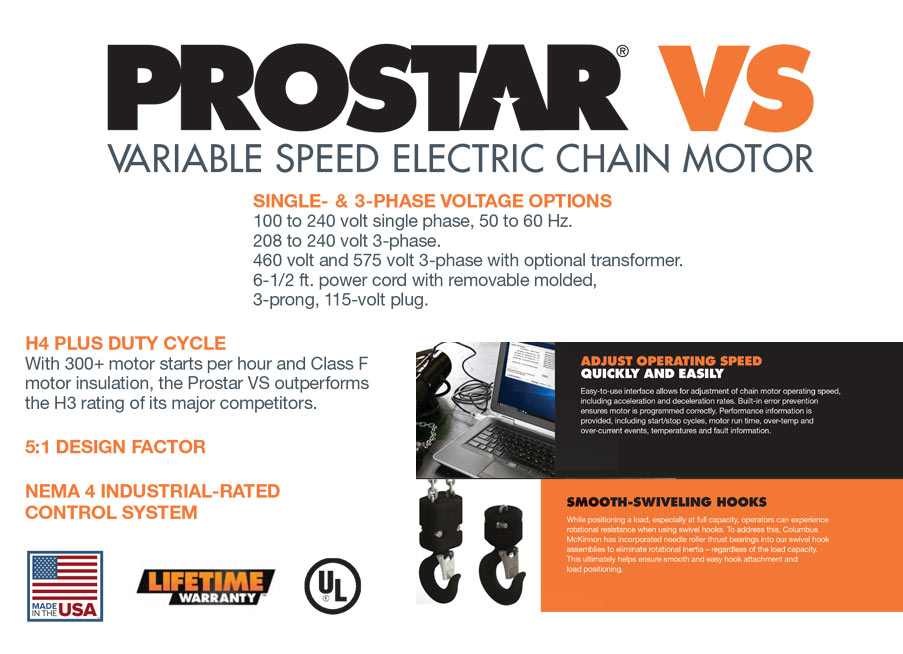

SINGLE- & 3-PHASE VOLTAGE OPTIONS
100 to 240 volt single phase, 50 to 60 Hz.
208 to 240 volt 3-phase.
460 volt and 575 volt 3-phase with optional transformer.
6-1/2 ft. power cord with removable molded,
3-prong, 115-volt plug.

H4 PLUS DUTY CYCLE
With 300+ motor starts per hour and Class F motor insulation, the Prostar VS outperforms the H3 rating of its major competitors.

5:1 DESIGN FACTOR

NEMA 4 INDUSTRIAL-RATED CONTROL SYSTEM

CM Prostar VS Chain Hoist
Made In the USA
Lifetime Warranty
UL- Certified
OPTIONAL FEATURES

VARIABLE CONTROLS
Choose from 2-speed, 2-step infi nitely variable, 3-speed and 3-step infinitely variable controls for single and 3-phase applications.

DURABLE CHAIN CONTAINERS
Impact-resistant plastic/mesh or metal chain containers.

SWIVEL-HOOK SUSPENSION

LATCHLOK® HOOK & LUG SUSPENSION
Swivel Latchlok hook suspension rotates 360˚ for easy installation and positioning.
Lug-mount suspension is also available.

-LODESTAR CHAIN HOIST ROAD CASES –

1/2″ PLYWOOD CONSTRUCTION

  • Kangaroo Cases are sturdy and unyieldingly solid. They have an added Black ABS Laminate exterior with a ¾” castor board that provides smooth, controlled and confident movement.

TOUGH 4 – 4″ BLUE CASTERS ( with red upgrade option)

  • Built for the road they add a seamless easy ground roll.

LARGE RECESSED HEAVY DUTY HARDWARE

  • High Quality Hardware with recessed lid Stops/Hinge.

CUSTOM DESIGNED COMPARTMENTS

  • Designed for Lodestar and Prostars motors with V-cut chain passages, chain storage, and bag storage.
Lodestar Road Cases Chainhoists
