Protective Bolt Plate Box Truss

Protective Bolt Plate Truss

XSF is proud to introduce its newest Truss Innovation!

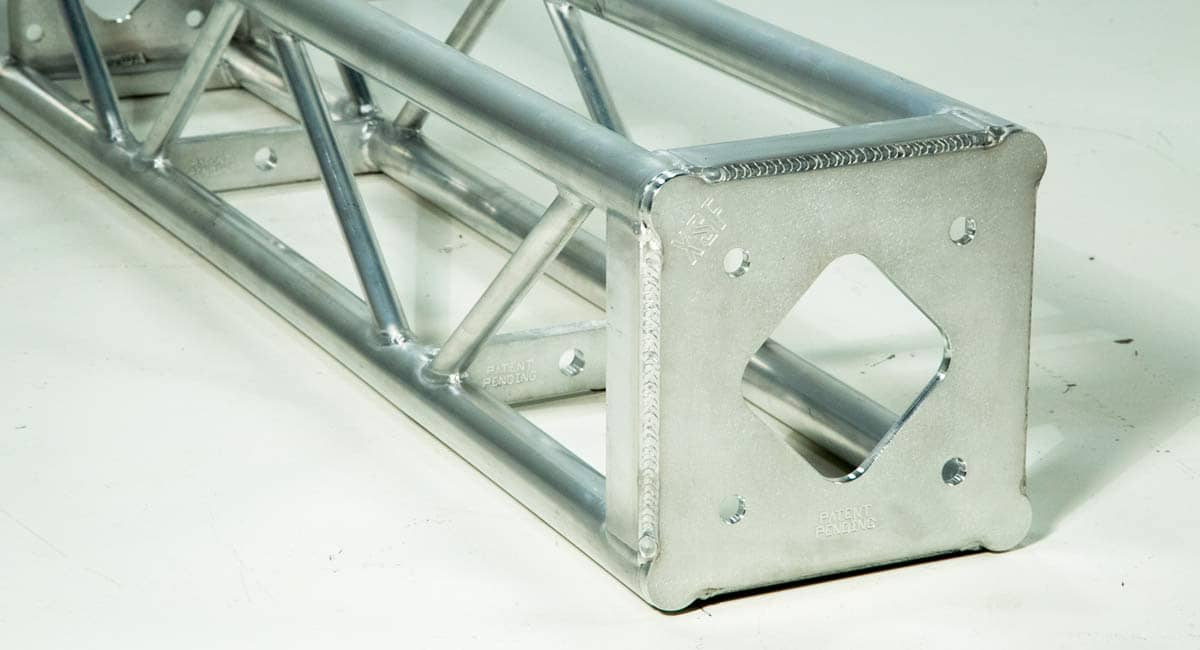

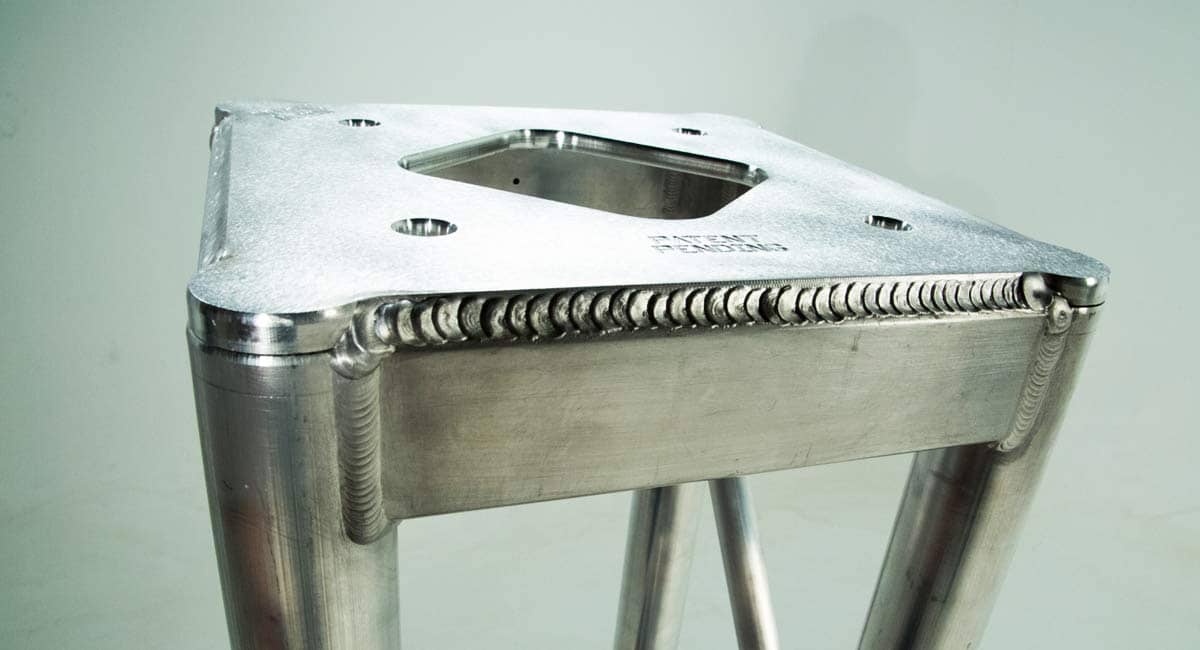

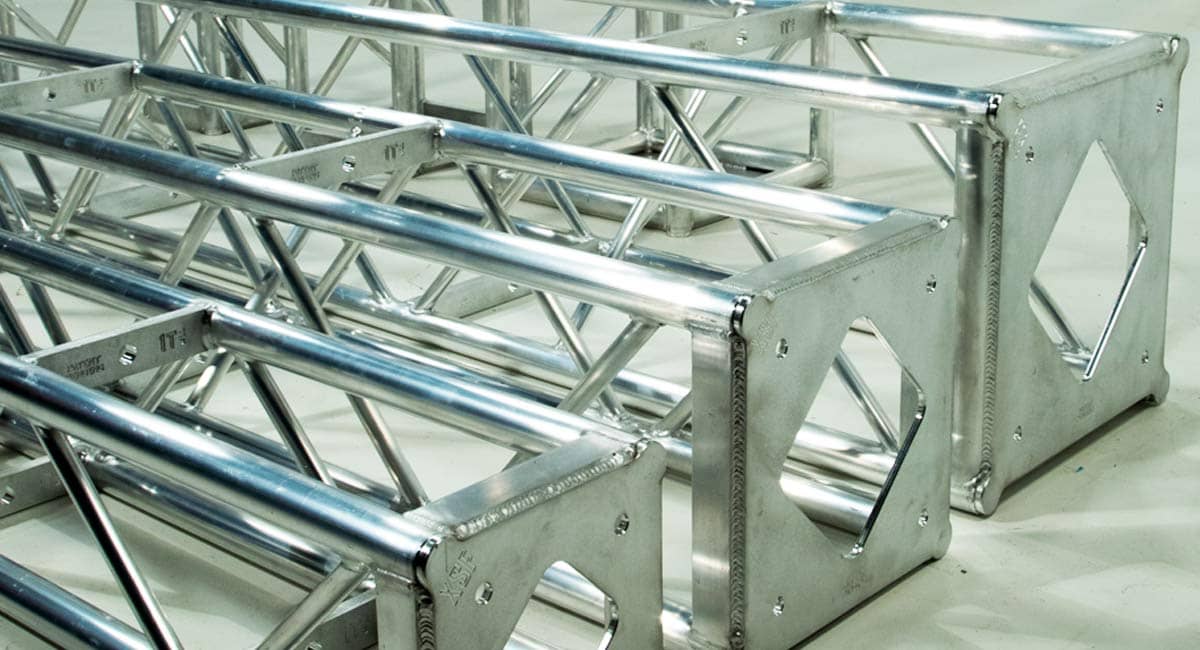

Protective Bolt Plate Truss provides a new engineered end plate design (patent pending) which includes circular ears at each corner that prevent damage to the chords from dropping or dragging.   Aluminum Truss is often dropped on hard floors or unnecessarily damaged from dragging, costing users thousands of dollars.  Every year we have 100’s of damaged trusses come into our warehouse for repair and the majority of them show some level of damage to the ends of the chords.  We looked to eliminate this problem and extend the life of the truss.

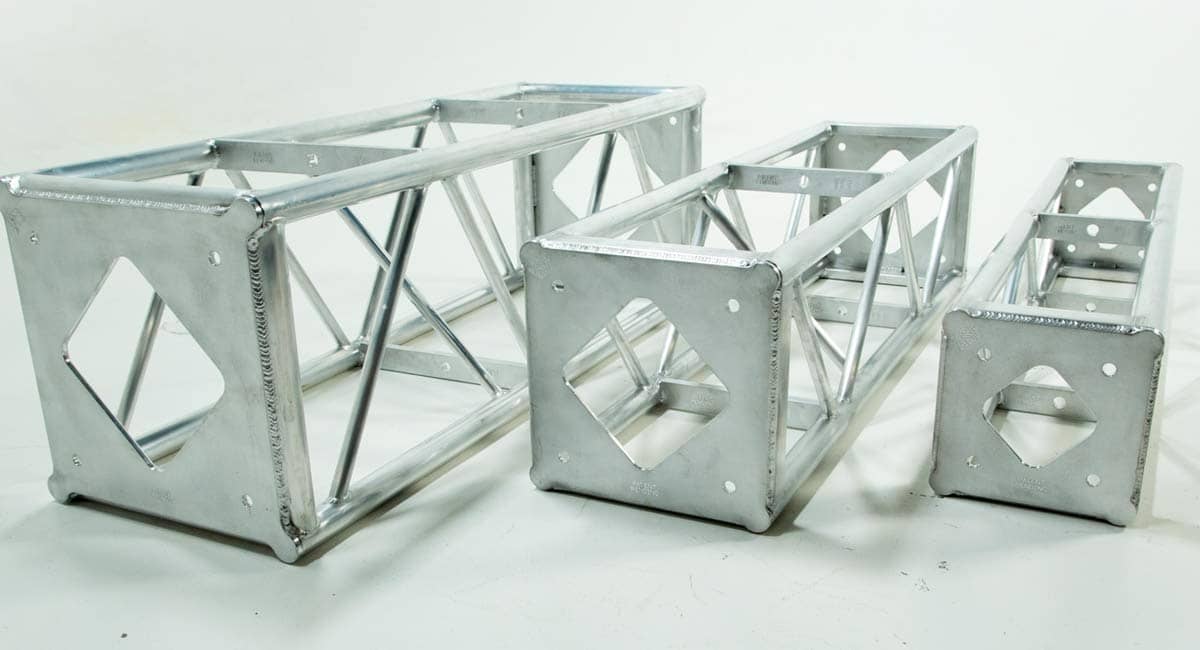

Protective Bolt Plate truss come in standard sizes including 12”x 12”, 12”x 18”, 16”x 16”,  20.5” x 12” and 20.5” x 20.5”.  These can mate up with other manufacturers bolt plate truss using standard 5/8” bolts and is an exclusive product of Xtreme Structures and Fabrication.

With a minimal increase in weight of only a few pounds the Protective Bolt Plate Truss is considerably stronger than the old style of truss that has been in our industry for over 30 years.  Right now we offer this new and innovative product for the same price as our standard bolt plate truss.

Call one of our friendly sales staff at 903-438-1100 for more information.

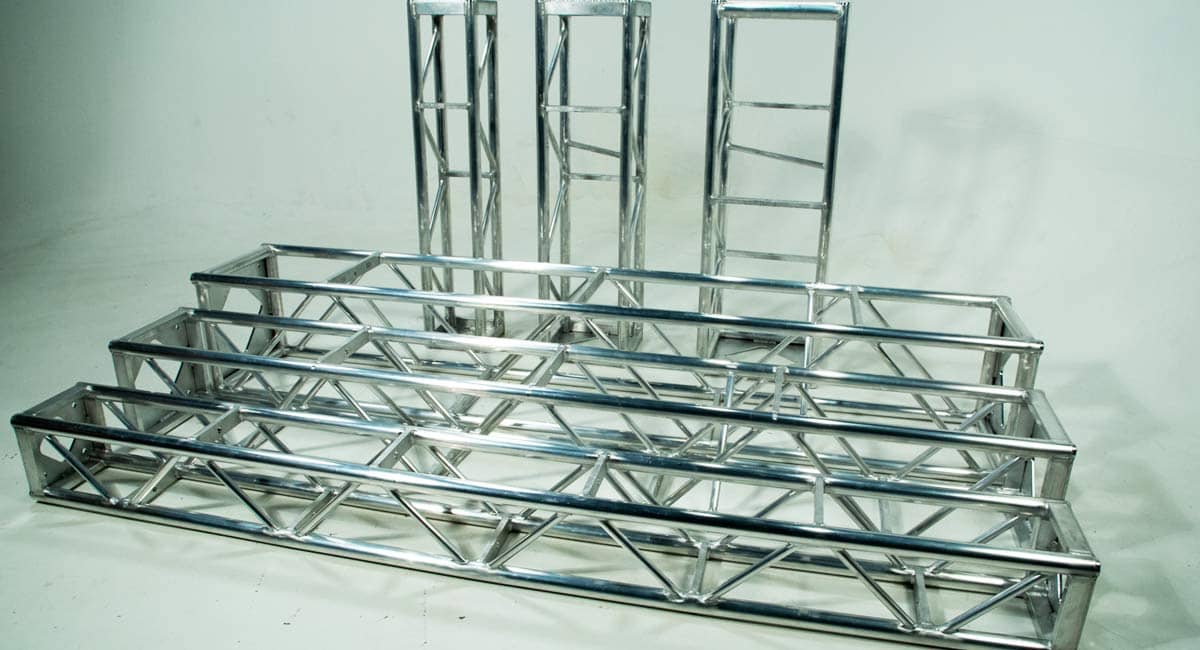

Protective Bolt Plate Truss -Truss Innovation

Watch the Protective Bolt Plate Video to learn more about this innovative and original new product from XSF.

damaged and broken truss

12″ x 12″ Protective Bolt Plate Utility Truss (patent pending)

12” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick diagonals.  The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12U-125PBP-12010′59
X-12U-125PBP-968′49
X-12U-125PBP-605′35
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10759461034552300
20225225016901125
309614501085725
40441030625450
5019590340250

12 x 12 Protective Bolt Plate Truss

12″ x 18″ Protective Bolt Plate Utility Truss (patent pending)

12”x18” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick diagonals.  The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-12X18U-125PBP-12010′70
X-12X18U-125PBP-968′61
X-12X18U-125PBP-605′43
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10759461034552300
20225225016901125
309614501085725
40441030625450
5019590340250

12 x 18 Protective Bolt Plate Truss

2000 POUND TRUSS LOAD RATING ON HORIZONTAL MEMBERS

 XSF has not only passed the base qualifications for truss strength, but has completely blown the standard out of the water!  “XSF has a certified load rating on horizontal members that is 8 times more than other truss manufacturers!”

 To Learn More, click here..

certified 1 ton rating Truss

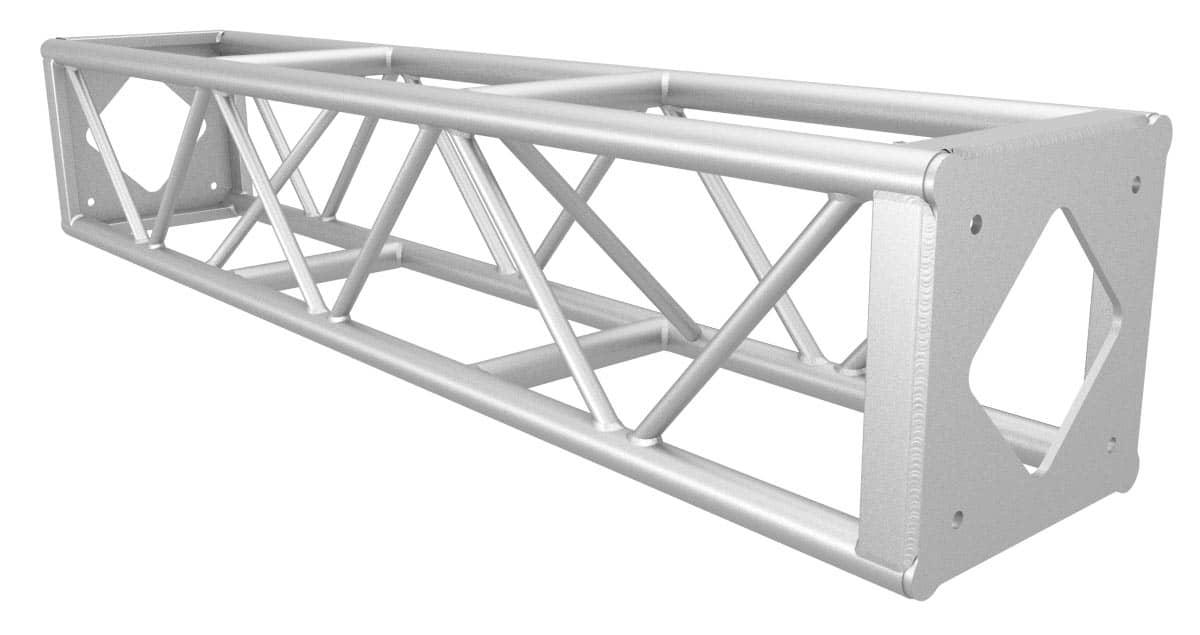

16″ x 16″ Protective Bolt Plate Utility Truss (patent pending)

16” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick diagonals.  The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-16U-125PBP-12010′70
X-16U-125PBP-968′60
 X-16U-125PBP-605′44
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10844615046153075
20300301522601510
3013019501460975
407013951045700
50381045680490

16x16 Protective Bolt Plate Truss

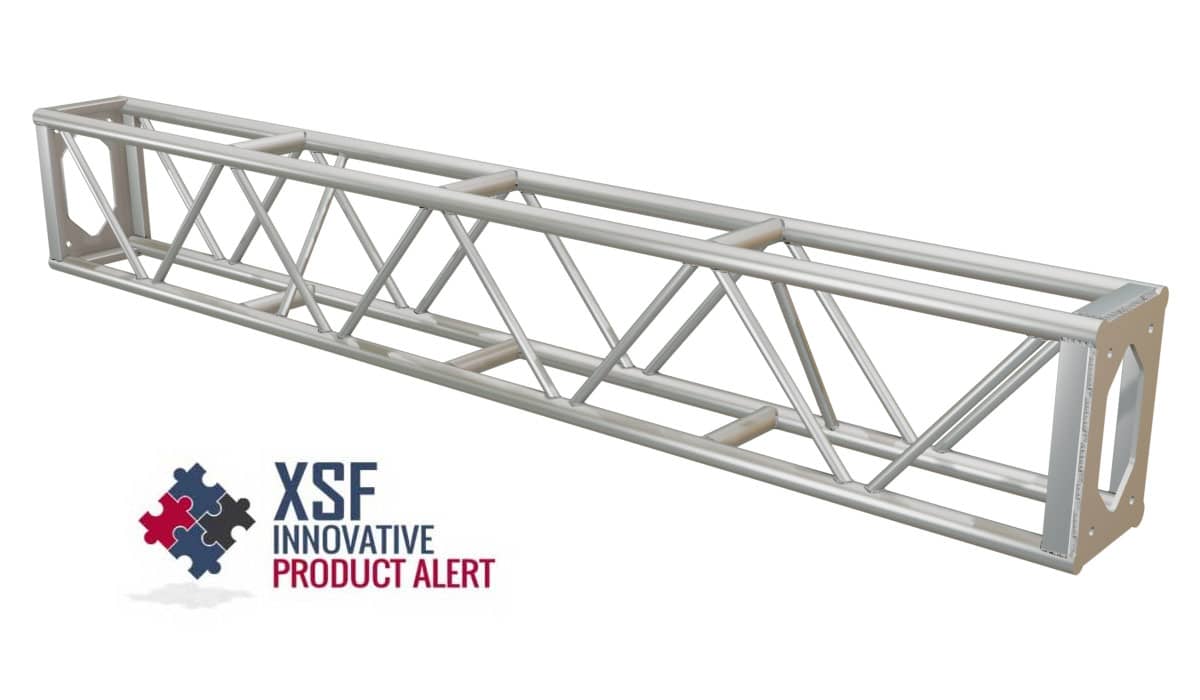

18″ x 12″ Protective Bolt Plate Utility Truss (patent pending)

18” x 12” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-18X12U-125PBP-12010′ Truss
X-18X12U-125PBP-968′ Truss
X-18X12U-125PBP-605′ Truss
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
1010236627497033132558
203263260244516301358
30141211415851057881
407615231142762635
50381154689499396

18' X12" Protective Bolt Plate Truss

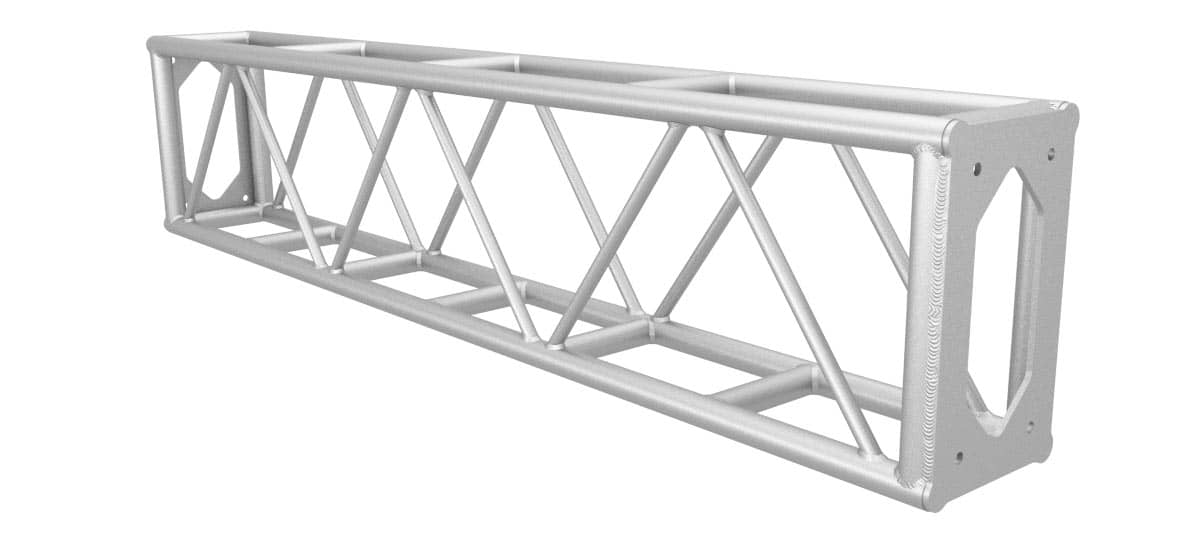

 20.5” x 12” Protective Bolt Plate Utility Truss (patent pending)

20.5” x 12” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick diagonals.  The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

PART NUMBERLENGTH
X-20.5X12U-125PBP-12010′
X-20.5X12U-125PBP-968′
X-20.5X12U-125PBP-605′
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10982788549103275
20390387529101940
30165251018851255
409018101355900
505513651025686

20-5x12-16x16 Protective Bolt Plate Truss

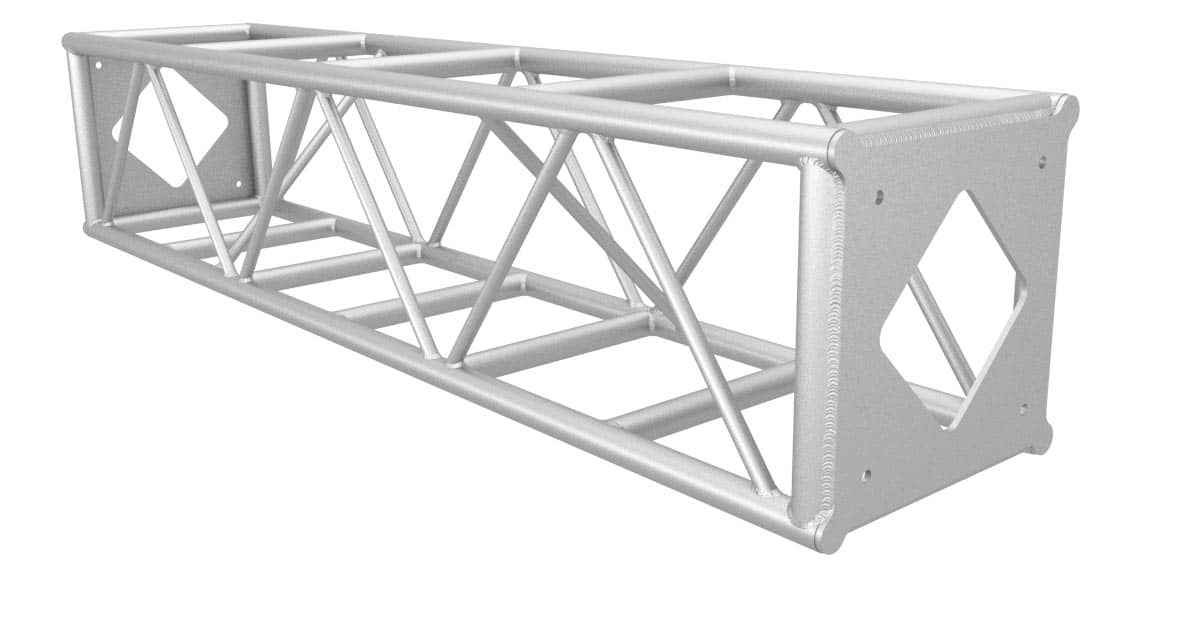

20.5″ x 20.5″ Protective Bolt Plate Utility Truss (patent pending)

20.5” PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick diagonals.  The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-20.5U-125PBP-12010′86
X-20.5U-125PBP-968′78
X-20.5U-125PBP-605′58
Span (ft)UDL (plf)CPL (lbs)3PL (lbs)4PL (lbs)
10982788549103275
20390387529101940
30165251018851255
409018101355900
505513651025685

20.5 x 20.5 20-5x12-16x16 Protective Bolt Plate Truss

USA MADE ALUMINUM TRUSS

All XSF Truss is 100% USA Made.  Our truss manufacturing and fabrication facility is located in Sulphur Springs, Texas and has been operating since 2002. We have a 43,000 sq. foot shop facility that we plan to expand in 2020.

USA Aluminum Made Truss

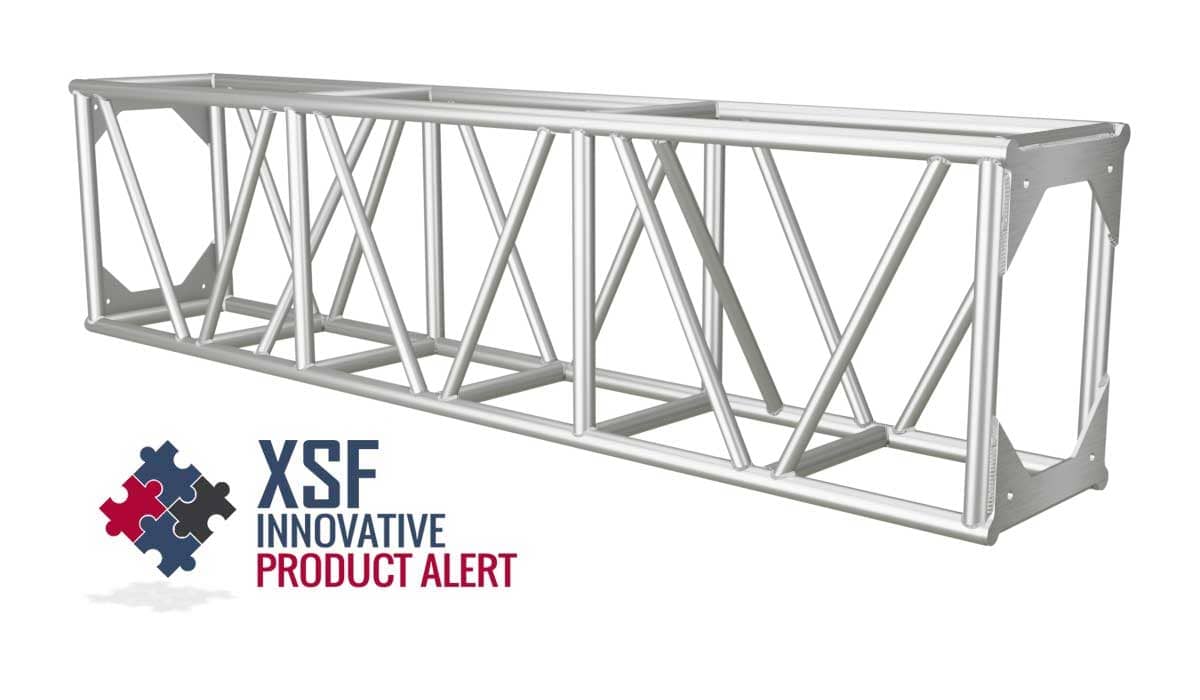

30″ x 20.5″ Protective Bolt Plate Utility Truss (patent pending)

30” X 20.5 PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-30X20.5U-125PBP-12010′70
X-30X20.5U-125PBP-968′60
X-30X20.5U-125PBP-605′44
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
102,01310,7848,0885,3924,493
205325,3243,9932,6622,218
302323,4742,6051,7371,447
401262,5261,8941,2631,052
50781,9391,454969808
60511,5331,149766639

30"X 20.5"Protective Bolt Plate Truss

30″ x 20.5″ Protective Bolt Plate Truss

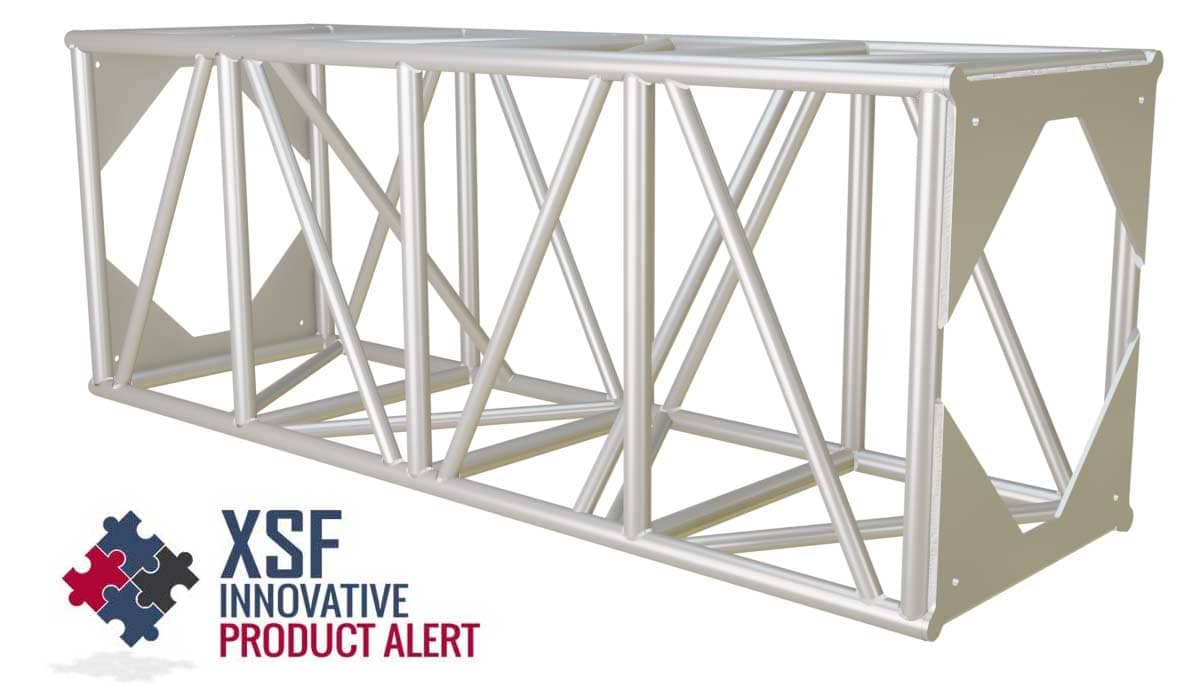

36″ x 30″ Protective Bolt Plate Utility Truss (patent pending)

36” X 30 PBP comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.

The aluminum chords are 2″ OD x 1/8″ thick with 1″ OD x 1/8″ thick aluminum diagonals. The trusses are joined together with 5/8″ steel bolts.

Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.

PART NUMBERLENGTHWEIGHT (lbs)
X-36X30U-125PBP-12010′70
X-36X30U-125PBP-968′60
X-36X30U-125PBP-605′44
SpanUniformly Distributed LoadCenter Point LoadThird Point LoadsQuarter Point LoadsFifth Point Loads
(ft)(plf)(lbs)(lbs)(lbs)(lbs)
101,61213,0708,0605,3734,030
206426,4164,8123,2082,673
302764,1453,1092,0731,727
401492,9702,2281,4851,238
50892,2331,6751117931
60571,7161,287858715

36″ x 30″ Protective Bolt Plate Truss

36″ x 30″ Protective Bolt Plate Truss

*All Product Specifications found on this website should be verified by an XSF Truss Sales Professional.
