XLITE Truss

XLITE Truss (pronounced Ex-Light) is an engineered lightweight truss that offers an affordable option to 12″x12″ Utility Truss.

XLITE is available in

  • 10″ Ladder,
  • 10″ Triangle
  • 10″x 10″ Square

And comes with a full line of accessories including

  • Base Plates
  • Corner Blocks
  • Wedges
  • Half Couplers and Swivel Couplers designed specifically for this product line
  • Head Blocks
  • Pinch Blocks
  • Utility / Stage Platforms

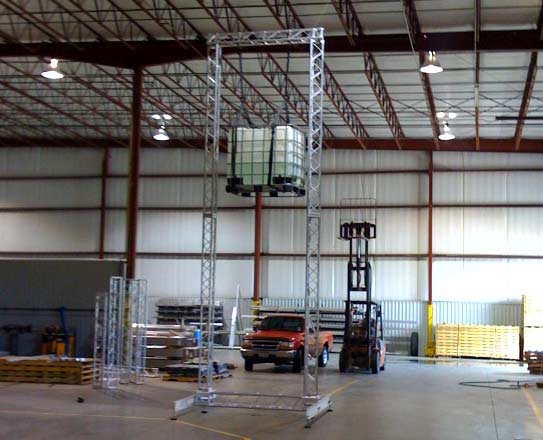

Xlite Load Test

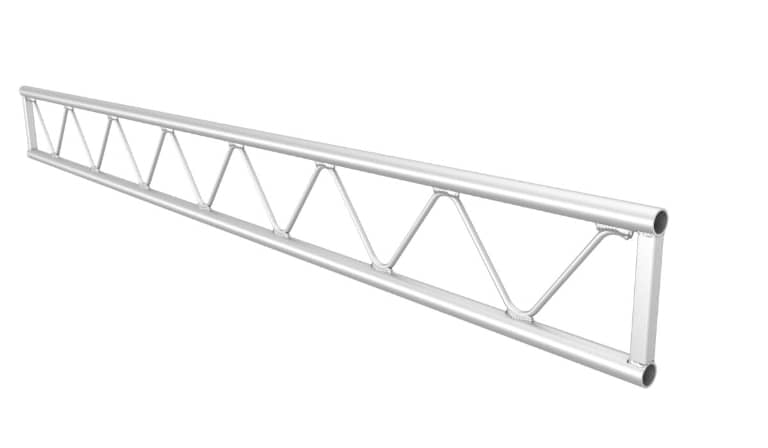

10″ Ladder Truss

  • 10″ XLITE Ladder Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
  • The chords are 1-1/2″ diameter x 1/8” wall thickness
  • The diagonals are 7/16” diameter solid rod
  • The truss is connected using standard 5/8″ diameter steel bolts
  • Fabricated by AWS certified welders in the USA
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
XL-10S-125BP-LAD-120 10′ Ladder Truss
XL-10S-125BP-LAD-96 8′ Ladder Truss
XL-10S-125BP-LAD-60 5′ Ladder Truss

10

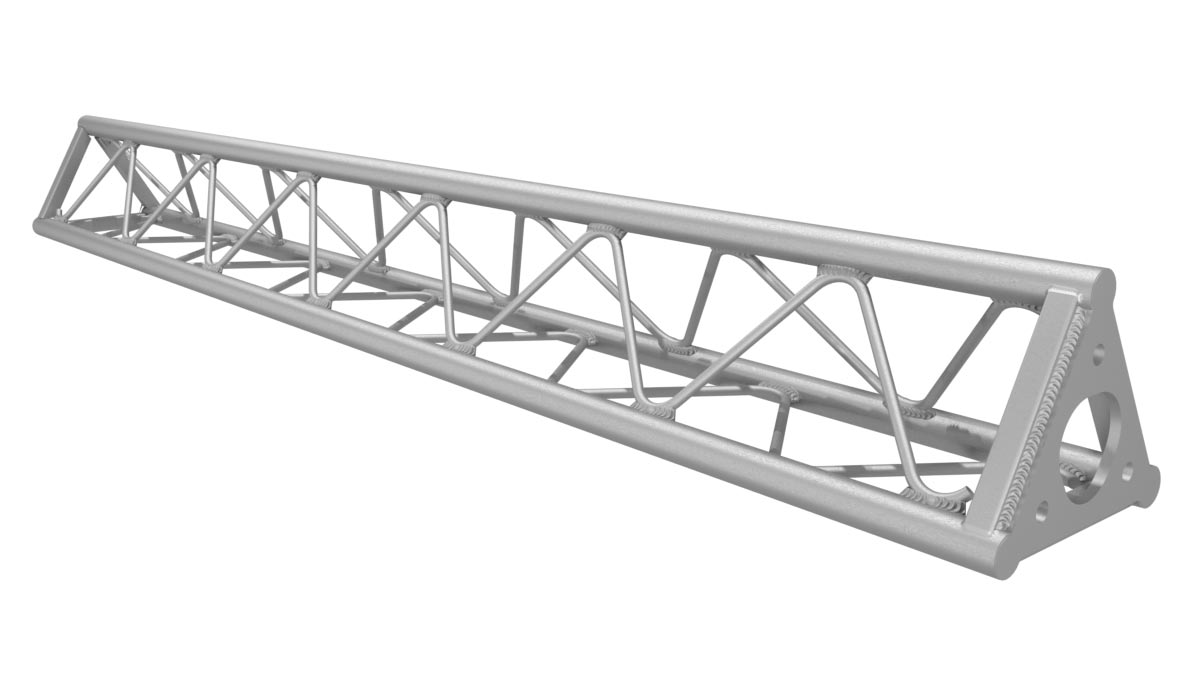

10″ Triangle Truss

  • 10″ XLITE Triangle Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
  • The chords are 1-1/2″ diameter x 1/8” wall thickness
  • The diagonals are 7/16” diameter solid rod
  • The truss is connected using standard 5/8″ diameter steel bolts
  • Fabricated by AWS certified welders in the USA
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Download 10” XLITE Triangle Truss load table
PART NUMBER LENGTH WEIGHT (lbs)
XL-10T-125PBP-120 10′ 30
XL-10T-125PBP-108 9′ 28
XL-10T-125PBP-96 8′ 25
XL-10T-125PBP-84 7′ 22
XL-10T-125PBP-72 6′ 19
XL-10T-125PBP-60 5′ 16
XL-10T-125PBP-48 4′ 14
XL-10T-125PBP-36 3′ 11
XL-10T-125PBP-24 2′ 8
10″ Triangle – Corners
XL-10T-2CB 2-Way Truss CB 8
XL-10T-3CB 3-Way Truss CB 12
XL-10T-4CB 4-Way Truss CB 16
XL-10T-5PCB 5-Way Plate CB 15
10″ Triangle – Bases
XL-18-BP-TRI-C 8
XL-18-BP-TRI-E 8
XL-18-BP-TRI-M 8
Span Uniformly Distributed Load Center Point Load Third Point Loads Quarter Point Loads Fifth Point Loads
(ft) (plf) (lbs) (lbs) (lbs) (lbs)
10 197 985 739 493 410
20 37 466 273 196 154
30 9 167 98 70 55

10 inch Triangle Xlite Truss

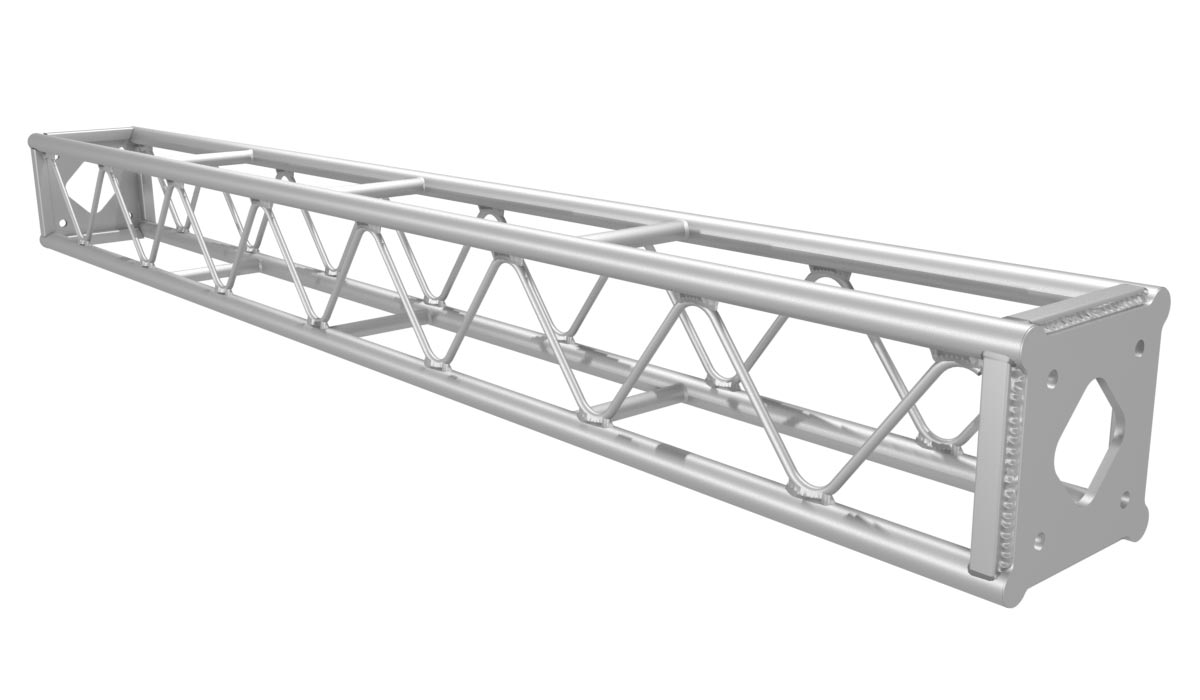

10″ Square Truss

  • 10″ XLITE Square Truss comes in standard lengths of 5′, 8′, and 10′ with custom lengths available upon request.
  • The chords are 1-1/2″ diameter x 1/8” wall thickness
  • The diagonals are 7/16” diameter solid rod
  • The truss is connected using standard 5/8″ diameter steel bolts
  • Fabricated by AWS certified welders in the USA
  • Powder Coating available upon request in most colors.
  • Anodizing available upon request in select colors.
  • Download 10” XLITE Square Truss load table
PART NUMBER LENGTH WEIGHT (lbs)
XL-10S-125PBP-120 10′ 38
XL-10S-125PBP-108 9′ 34
XL-10S-125PBP-96 8′ 31
XL-10S-125PBP-84 7′ 28
XL-10S-125PBP-72 6′ 25
XL-10S-125PBP-60 5′ 21
XL-10S-125PBP-48 4′ 18
XL-10S-125PBP-36 3′ 15
XL-10S-125PBP-24 2′ 12
10″ Square- Corners
XL-10S-6PCB 6-Way Plate CB 10
10″ Square – Bases
XL-18-BP-SQ-C 8
XL-18-BP-SQ-E 8
XL-18-BP-SQ-M 8
10″ XLITE Misc.
XL-10S-125BP-LAD-120 10′
XL-10S-125BP-LAD-96 8′
XL-10S-125BP-LAD-60 5′
Span Uniformly Distributed Load Center Point Load Third Point Loads Quarter Point Loads Fifth Point Loads
(ft) (plf) (lbs) (lbs) (lbs) (lbs)
10 260 1300 976 650 542
20 71 896 525 377 296
30 18 346 203 145 114

10" x 10" Xlite Truss w/PBP

USA MADE ALUMINUM TRUSS

All XSF Truss is 100% USA Made.  Our 43,000 sq. ft. truss manufacturing and fabrication facility is located in Sulphur Springs, Texas, and has been operating since 2002.

USA Aluminum Made Truss

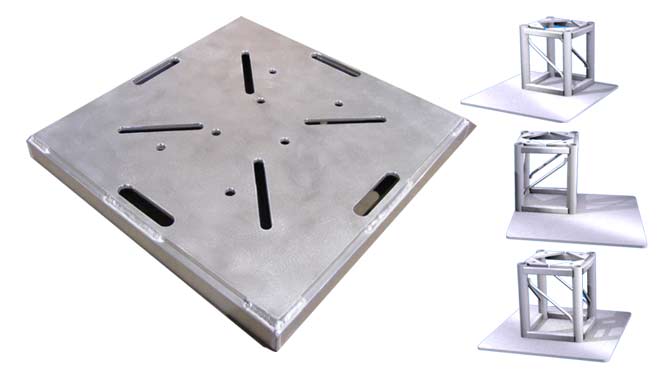

Baseplates

XLITE Truss can be used with our standard XSF 24″, 36″ and 48” base plates

XLITE Truss may also be used with XLITE 18″ base plates

  • Constructed with a 3/8″ plate welded to a 12″ piece of XLITE truss
  • The orientation of the base plate is available in three options
  • Truss located in the middle of the plate
  • Truss located in the corner of the plate
  • Truss located flush to one edge of the plate
XL-18-BP-SQ-C 18″ Base Plate – Corner
XL-18-BP-SQ-E 18″ Base Plate – Edge
XL-18-BP-SQ-M 18″ Base Plate – Middle
XL-18-BP-TRI-C 18” Base Plate – Corner
XL-18-BP-TRI-E 18” Base Plate – Edge
XL-18-BP-TRI-M  18” Base Plate – Middle
baseplate Xlite

Welded On Baseplates

The 18×18 Xlite base has a low-profile flat plate from 3/8”. It can slide under the carpet, or if on top, doesn’t create a trip hazard. Xlite is primarily used for indoor small trade show style booths, and therefore doesn’t need the more heavy-duty bases like our normal 24” and 36”.

We can weld center,  center but flush to one edge, or flush to a corner.

Xlite Welded On Baseplate
Xlite Welded on Baseplate
Xlite Welded on Base Centered
