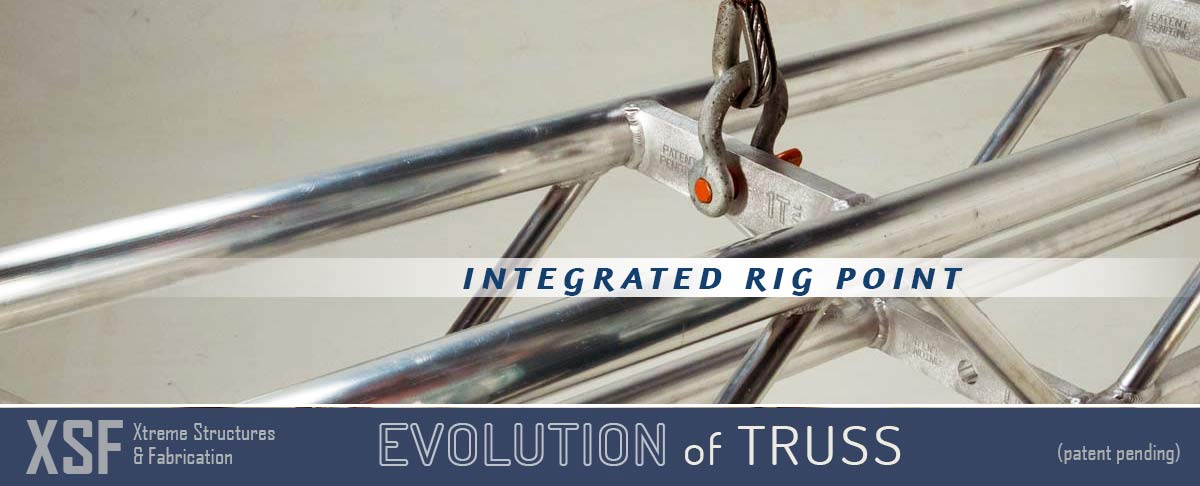

The Xtreme Structures (patent pending) Integrated Rig Point (IRP) provides a whole new way to rig your truss safely.
The IRP is a heavy-duty aluminum rig bar that provides an engineered rig point with a 1-ton load rating at each panel point within the truss. Welding the rig points into the truss at precise panel points ensures the 1-ton load rating is at the safest location possible.
The IRP contains a hole designed for a standard 5/8” shackle and eliminates the need for backup fire safety cables.
It can be installed in any XSF standard trusses including:
| 12”x12” | 5”x20.5” |
| 12”x18” | 30” x 20.5” |
| 16”x16” |
The Integrated Rig Point can be installed in any type of XSF truss including:
- XSF Protective Bolt Plate Truss
- XSF Standard Bolt Plate Truss
- XSF Fork End Truss
- XSF Aluminum Fork End Truss
